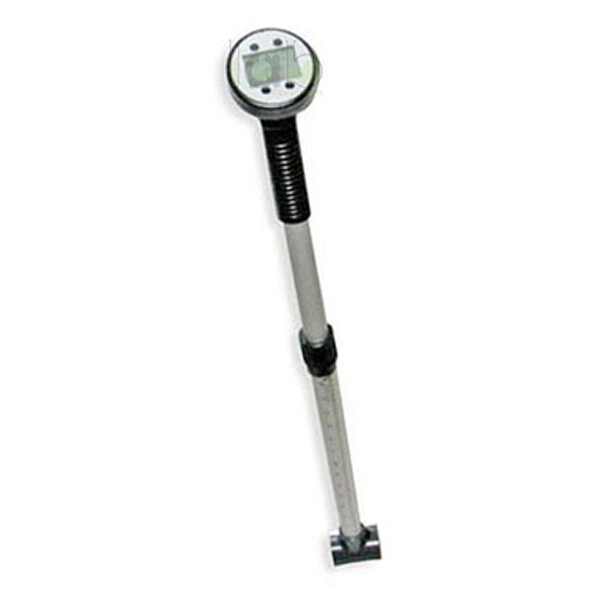

Velocity Meter

Product Code : EL-EFFCA-11072
Lab Equipments Ambala is a leading Velocity Meter Manufacturer,and suppliers in Ambala, Velocity Meter Manufacturer,and suppliers in South Africa, Velocity Meter Algeria (Algiers), Velocity Meter Angola (Luanda), Velocity Meter Argentina (Buenos Aires), Velocity Meter Armenia (Yerevan), Velocity Meter Australia (Canberra), Velocity Meter Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

SPECIFICATION
Holder with vertical scale to indicate the position of the impeller
Battery-operated digital display of the flow velocity

Description :-
The core element of the velocity meter is an impeller that is rotated by the flow.
The speed of the impeller is proportional to the flow velocity.
The flow velocity is read directly from the digital display.
The impeller tube can be moved vertically.
A scale indicates the corresponding vertical position of the measurement.
The meter is mounted on a carrier.
The carrier can be placed upon and fixed to any position of the experimental section.

TECHNICAL DETAILS
Scale : 0…300mm
Graduation : 1mm
Measuring ranges : flow velocity : 0…5m/s
Dimension LxWxH : 150x120x380 mm (holder with impeller)
Dimension LxWxH : 70x40x200 mm (holder with digital display)
Weight : approx. 2kg
