Radial Gate Manufacturer,Supplier and Exporter in India

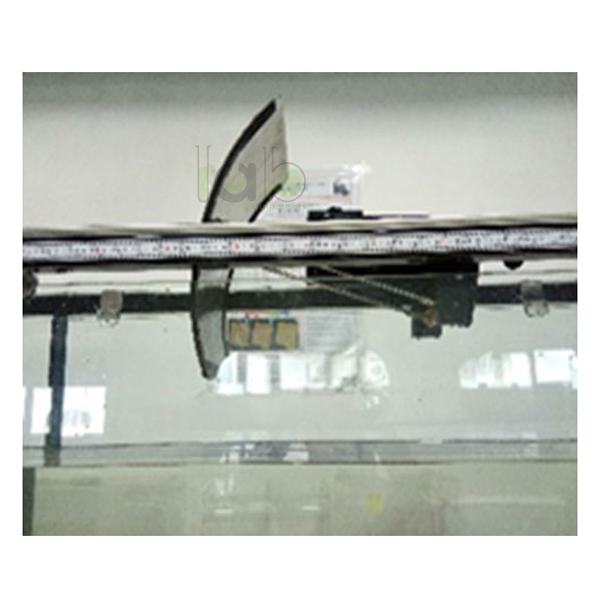

Radial Gate

Product Code : EL-EFFCA-11063
Lab Equipments Ambala is a leading Radial Gate Manufacturer,and suppliers in Ambala, Radial Gate Manufacturer,and suppliers in South Africa, Radial Gate Algeria (Algiers), Radial Gate Angola (Luanda), Radial Gate Argentina (Buenos Aires), Radial Gate Armenia (Yerevan), Radial Gate Australia (Canberra), Radial Gate Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

SPECIFICATIONS
Radial gate for the experimental flume.
Radial gate with lateral sealing lips.
Height adjustment using lever.

EXPERIMENTATION
Free discharge under a radial gate
Submerged discharge under a radial gate
Observation of jet contraction (vena contracta)
Observation of downstream hydraulic jumps

Description :-
Radial gates are movable control structures.
The water flows under the gate.
The core element of a radial gate is a wall with the shape of a segment of a circle.
The gate causes backwater in the flume.
Radial gates are often used in combination with a fixed control structure, e.g. a broad-crested weir.
These combinations are typical forbarrages.
With them the discharge in the open channel can be adjusted and controlled according to the needs.


TECHNICAL DETAILS
Gate
Weir plate made of stainless-steel width : 80mm
Radius of the segment : 298mm
Weight : approx. 3kg
Dimension LxWxH : 310x160x460 mm
