Broad Crested Weir Manufacturer,Supplier and Exporter in Ambala

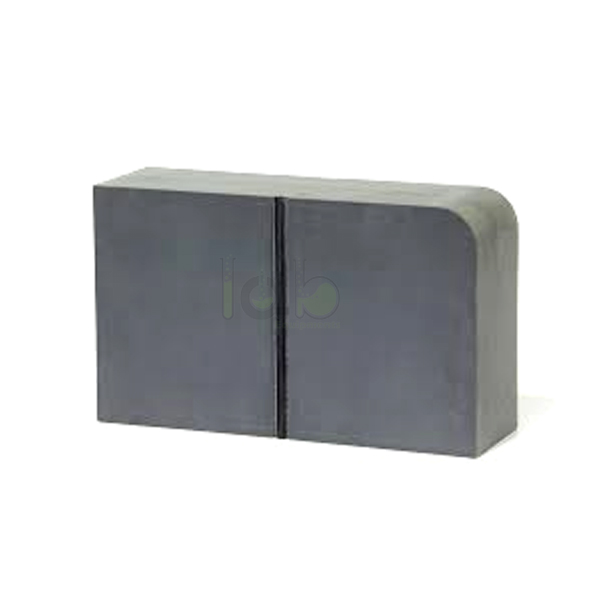

Broad Crested Weir

Product Code : EL-EFFCA-11070
Lab Equipments Ambala is a leading Broad Crested Weir Manufacturer,and suppliers in Africa, Broad Crested Weir Manufacturer,and suppliers in Nigeria,Broad Crested Weir Suppliers in Ethiopia,Broad Crested Weir in Supplier Kenya, Egypt, South Africa, Tanzania,Algeria, Uganda, Sudan, Morocco, Ghana, Mozambique, Ivory Coast, Madagascar, Angola, Cameroon, Niger, Burkina Faso, Mali, Malawi, Zambia, Senegal, Zimbabwe, Chad, Guinea, Tunisia, Rwanda, South Sudan, Benin, Somalia, Burundi, Togo, Libya, Sierra Leone

Weir with sharp edges
2 additional elements for rounded edges
Weir body with sealing lips

Description :-
Contains a cuboid shaped weir body with a sharp edge.
Two additional elements can be fixed at the weir body to create rounded edges.
Free and submerged overfall can be clearly demonstrated.
The effect of the sharp-edged or rounded weir crest on the nappe is easily observable.

Free and submerged overfall at the broad-crested weir
Effect of the weir edges on flow processes
Sharp-edged contour
Rounded contour
Together with a level gauge
Determination of the discharge coefficient
Determination of the discharge
Comparison of the theoretical and the measured discharge


Material body



Dimension LxWxH


260x96x120mm (weir body)

Dimension LxWxH


40x86x120mm (element for rounded edges



approx. 5kg
