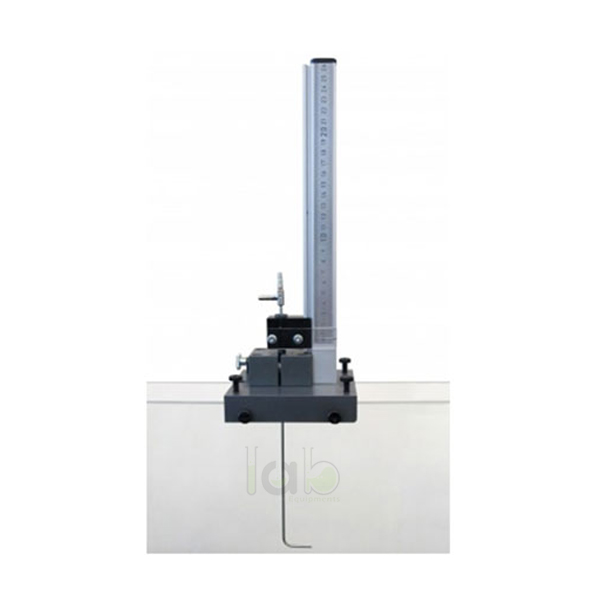

Pitot Static Tube Manufacturer,Supplier and Exporter in India
Product Code : EL-EFFCA-11071
SPECIFICATION
Determination of discharge velocity in the experimental flume.
Determination of velocity via differential pressure
Holder with vertical scale to indicate the position of the pitotstatic tube
Hoses connect the pitotstatic tube and the twin tube manometers
Description :-
The Pitot static tube is used to measure the flow velocity in the experimental flume.
It measures the static pressure and the total pressure at any point of the flow.
Twin tube manometers indicate both pressures.
The pressure difference corresponds to the dynamic pressure, from which the flow velocity can be calculated.
The pitotstatic tube and the twin tube manometers are mounted on a carrier.
The carrier can be placed upon and fixed to any position of the experimental section.
The pitotstatic tube can be moved vertically.
A scale indicates the corresponding vertical position of the measurement.
TECHNICAL DETAILS
Scale (vertical position) : 0…240mm
Graduation : 1mm
Measuring ranges : Pressure : 2x 0…350mm WS.
Dimension LxWxH : 250x180x510mm
Weight : approx.3kg
