Venturimeter Orificemeter Calibration Set Up

Product Code : EL-FML-11040
Lab Equipment Ambala is a leading Venturimeter Orificemeter Calibration Set Up Manufacturer,and suppliers in India, Venturimeter Orificemeter Calibration Set Up Manufacturer,and suppliers in South Africa.Venturimeter Orificemeter Calibration Set Up Suppliers in Mozambique,Venturimeter Orificemeter Calibration Set Up A quality product from Lab Equipment Ambala ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

EXPERIMENTS:-
To determine the Co-efficient of discharged through Venturimeter and Orificemeter
To measure discharge through Venturimeter and Orificemeter as flow meters.

UTILITIES: –
Water Supply & Drain
Electricity Supply: Single Phase, 220 VAC, 0.5 kW

DESCRIPTION:-

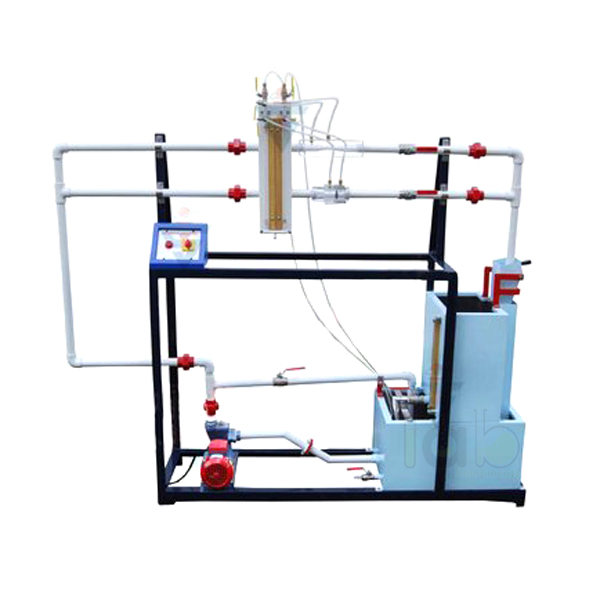

The apparatus consists of two pipelines emerging out from a common manifold.
One pipeline contain a Venturimeter, second contains an Orifice.
The pressure tapings from the Venturimeter and Orificemeter are taken to differential manometer to measure pressure difference.
The Venturimeter and Orificemeter are connected in parallel and anyone of them can be put in operation by operating valves provided at the downstream.
These valves can also regulate the flow.
Present Set-up is self contained water re-circulating unit, provided with a sump tank and a centrifugal pump.
Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different floe rate.
Flow rate of water is measured with the help of measured with the help of measuring tank and stop watch.

TECHNICAL SPECIFICATIONS: –
Venturimeter : Material Clear Acrylic, Compatible to 1” Dia pipe
Orificemeter : Material Clear Acrylic, Compatible to 1” Dia. Pipe
Water Circulation : FHP Pump, Crompton / Sharp make
Flow Measurement : Using Measuring Tank, Capacity 25 Ltrs.
Sump Tank : Capacity 50 Ltrs.
Stop Watch : Electronic
Control Panel : On / Off Switch, Mains Indicator etc.
Tanks will be made of Stainless Steel
The whole Set-up is well designed and arranged in a good quality painted Structure
