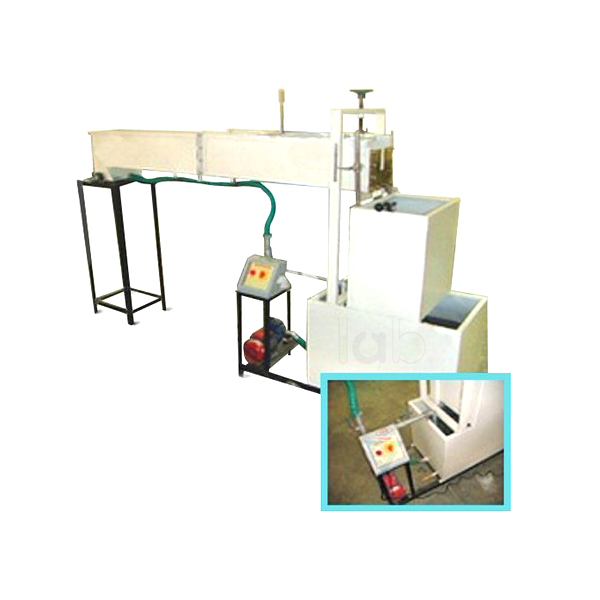

Flow Over Weir Or Open Channel Apparatus Manufacturer,Supplier and Exporter in India

Product Code : EL-FML-11049
Lab Equipments Ambala is a leading Flow Over Weir Or Open Channel Apparatus Manufacturer,and suppliers in Ambala, Flow Over Weir Or Open Channel Apparatus Manufacturer,and suppliers in South Africa, Flow Over Weir Or Open Channel Apparatus Algeria (Algiers), Flow Over Weir Or Open Channel Apparatus Angola (Luanda), Flow Over Weir Or Open Channel Apparatus Argentina (Buenos Aires), Flow Over Weir Or Open Channel Apparatus Armenia (Yerevan), Flow Over Weir Or Open Channel Apparatus Australia (Canberra), Flow Over Weir Or Open Channel Apparatus Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

SPECIFICATIONS:

The unit is provided with following weirs:

(a) Sharp-crested weir.

(b) Broad-crested weir.

Pump 1/2 H.P. monoblock.

Flow measurement – Measuring tank calibrated water flow meter is used.

A technical manual accompanies the unit.

Flow Over Weir Or Open Channel Apparatus:

A ‘WEIR’ is the name given to concrete or masonry structure built across a river (or stream) in order to raise the level of water on the upstream side and to allow the excess water to flow over its entire length to the downstream side.

Weirs may also be used for measuring the rate of flow of water in river or streams.

Different shapes of “WEIRS” generally used are sharp-crested weir, broadcasted weir and ogee shaped weir.

In the unit a centrifugal pump sucks the water from the sump tank, and discharges it to a small flow channel.

The weir is fitted at the end of channel. All the weirs are interchangeable.

The water-flowing over the weir falls in the collector.

Water coming at from the collector can be directed to the sump or can be directed in to the measuring tank for measurement of flow.

SERVICES REQUIRED:

Floor surface – 2.5 m x 1.5 m.

230 v, 5 amp supply with earthing connection
