EXPERIMENTS:-

To verify Bernoulli’s Theorem experimentally.

FEATURES:-

Clear test section

Closed loop water circulation

Compact & stand alone setup

Stainless Steel tanks and wetted parts

Superb Painted structure

Simple to operate & maintain

TECHNICAL SPECIFICATION: –

Test Section : Material Acrylic, Size

Inlet Tank : Capacity 20 Liters., Stainless Steel

Supply Tank : Capacity 70 Liters., Stainless Steel

Measuring Tank : Capacity 20 Ltrs. Fitted with Piezometer Tube & Scale

Piezometer Tubes : Material P.U. Tubes (9 Nos.)

Pump : FHP Capacity make Tullu/Crompton Graves

Piping : GI / PVC Size BSP

Stop Watch : Electronic

The whole Set-up is well designed and arranged in a good quality painted Structure.

DESCRIPTION:-

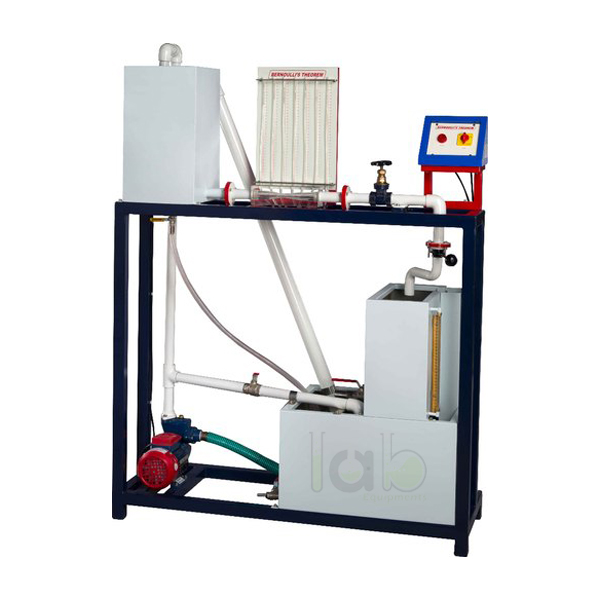

The Set-up is designed to verify Bernoulli’s Theorem experimentally.

Set up consists of a one piece clear acrylic test section with convergent and divergent part section, supply tank, measuring tank, inlet water tank and pump for closed loop water circulation.

The test section is connected to Piezometer tubes through pressure tapping at different locations on the section to demonstrate the Bernoulli’s Theorem.

The flow rate of water is measured using measuring tank and stop watch provided.

UTILITIES REQUIRED: –

Electricity Supply: Provide 230 +/- 10 VAC, 50 Hz, Single Phase electric supply with proper earthing (Neutral – Earth voltage less than 5 VAC) 5 A, three pin socket with switch for pump

Water Supply : Tap water connection ½ “ BSP, Distilled water @ 60 Ltrs. (Optional)
