Product Code : EL-FML-11037
EXPERIMENTS:-
To study different types of flow.
To determine the Reynold’s Number and hence the type of floe either laminar or turbulent.
UTILITIES REQUIRED: –
Water Supply.
Drain
DESCRIPTION:-

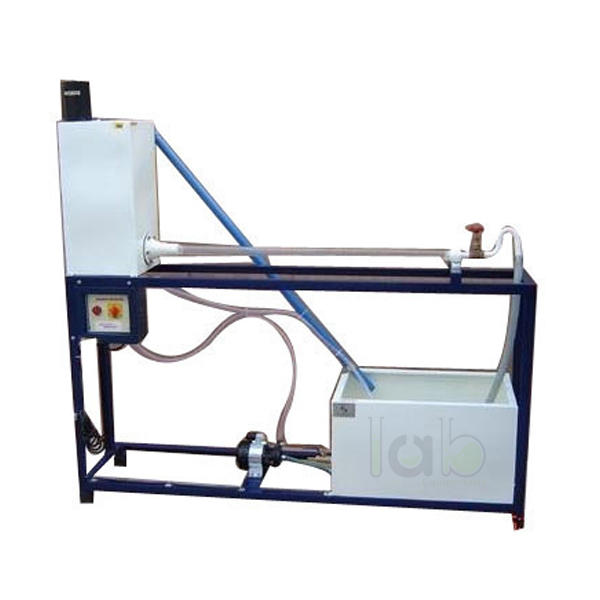

The Set-up is designed to verify Reynold’s Apparatus experimentally.
The Apparatus consists of a glass tube which one end having bell mouth entrance connected to a water tank.
At the other end of the glass tube a cock is provided to vary the rate of flow.
Flow rate of water can be measured with the help of Measuring Cylinder and Stop Watch, supplied with the set-up.
A capillary tube is introduced centrally in the bell mouth.
To this tube dye is fed from a small container, placed at the top of Constant head Tank, through polythene tubing.
TECHNICAL SPECIFICATION: –
Tube : Material Borosilicate Glass
Dye Vessel : Material SS, Suitable Capacity
Capillary Tube : Material Copper/Stainless Steel
Constant Head Water Tank : Capacity 40 Liters.
Water Circulation : FHP Pump
Flow Measurement : Using Measuring Cylinder
Sump Tank : Capacity 60 Liters
Stop Watch : Capacity 60 Liters. Electronic
Control Panel Comprises of : Standard make, On/Off Switch, Mains Indicator, etc.
The Whole set-up is well designed and arranged in a good quality painted structure.
