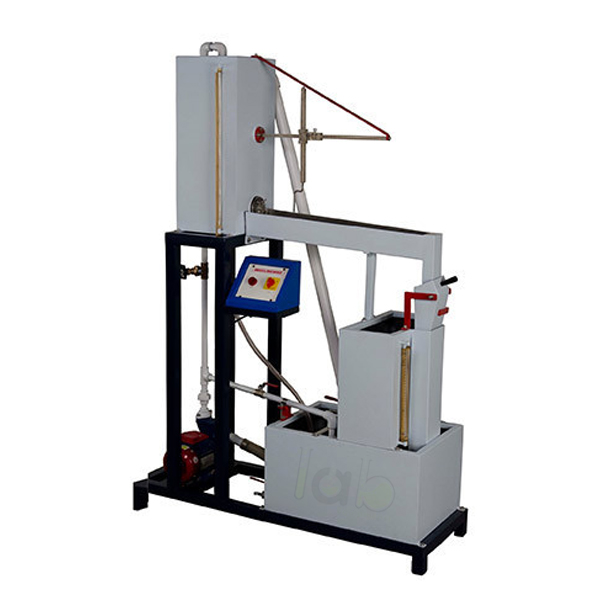

Orfice Mouthpieces Apparatus

Product Code : EL-FML-11047
Lab Equipment Ambala is a leading Orfice Mouthpieces Apparatus Manufacturer,and suppliers in India, Orfice Mouthpieces Apparatus Manufacturer,and suppliers in South Africa.Orfice Mouthpieces Apparatus Suppliers in Mozambique,Orfice Mouthpieces Apparatus A quality product from Lab Equipment Ambala ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

SPECIFICATIONS:
Supply Tank – 0.4 X 0.3 X 0.5m height
Orifice – 8mm and 10 mm.
Mouthpiece
LID = 4
L/D = 1
Bordas mouthpiece.
Convergent mouthpiece.
X-Y gauge for orifice jet co-ordinates.
Measuring tank of suitable capacity OR a calibrated water flow meter.
Sump tank of suitable capacity.
0.5 HP pump with valve.

Description :-
An orifice is an opening made in the side or bottom of tank, having a closed perimeter, through which the fluid may be discharged.
A mouthpiece is short tube fitted to a same size circular opening provided in a tank so that fluid may be discharged through it.
Orifice and mouthpiece are used to measure the rate of flow of liquid.
The apparatus is designed to measure the co-efficient of discharge of orifice & mouthpiece.

The apparatus consists of a supply tank, at the side of which a universal fixture for mounting orifice or mouthpiece is attached.
A centrifugal pump supplied the water to supply tank.
Head over the orifice/mouthpiece is controlled by a by pass valve provided at pump discharge.
A measuring tank is provided to measure the discharge.
A gauge for measuring X and Y co-ordinates of jet from the orifice is provided, which is used to calculate Cv of orifice.

A technical manual accompanies the unit.

SERVICES REQUIRED:
Flow surface 2 mtrs. X 1 mtr. X 1.5 mtrs. height.
230 Volts, 5 Amp. Stabilized AC. Power Supply.
