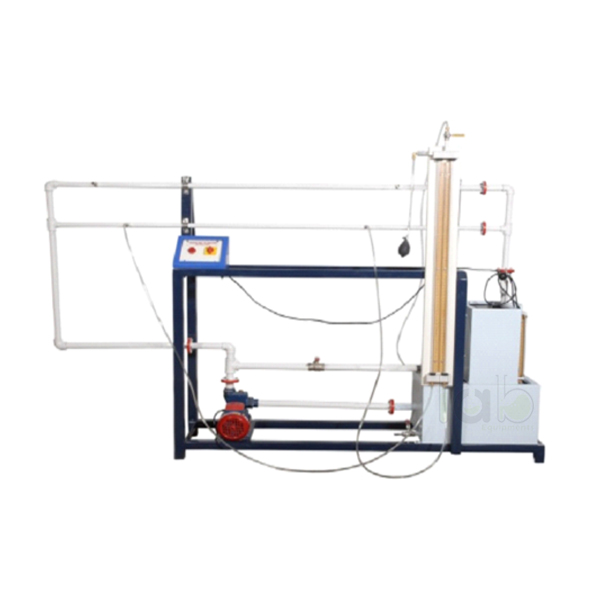

Friction In Pile Lines Apparatus

Product Code : EL-FML-11042
Lab Equipment Ambala is a leading Friction In Pile Lines Apparatus Manufacturer,and suppliers in India, Friction In Pile Lines Apparatus Manufacturer,and suppliers in South Africa.Friction In Pile Lines Apparatus Suppliers in Mozambique,Friction In Pile Lines Apparatus A quality product from Lab Equipment Ambala ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

EXPERIMENTS:-
To determine the losses due to fiction in pipes
To determine the friction factor for Darcy Weis back equation

UTILITIES REQUIRED: –
Water Supply & Drain
Electricity Supply: Single Phase, 220 VAC, 0.5 kW

DESCRIPTION:-
The Set-up consists of 2 pipes of different diameters, which are connected in parallel.
Pressure tapings are provided on each pipe to measure the pressure losses with the help of a Differential Manometer.
Control valves are fitted on each pipe, which enables to use one pipe at a time for experiment.
Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc.
Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates.
Flow rate of water is measured with the help of measuring tank and stop watch.

TECHNICAL SPECIFICATION: –
Pipes (2 Nos.) : Material GI of ½ “ & 1” Diameter
Pipe Test Section : Length 1 m
Water Circulation : FHP Pump, Crompton / Sharp make
Flow Measurement : Using Measuring Tank with Piezometer,Capacity 25 Ltrs.
Sump Tank : Stainless Steel, Capacity 50 Ltrs.
Stop Watch : Mechanical / Electronic
Control Panel : On / Off Switch, Mains Indicator etc.
The whole Set-up is well designed and arranged in a good quality painted Structure
