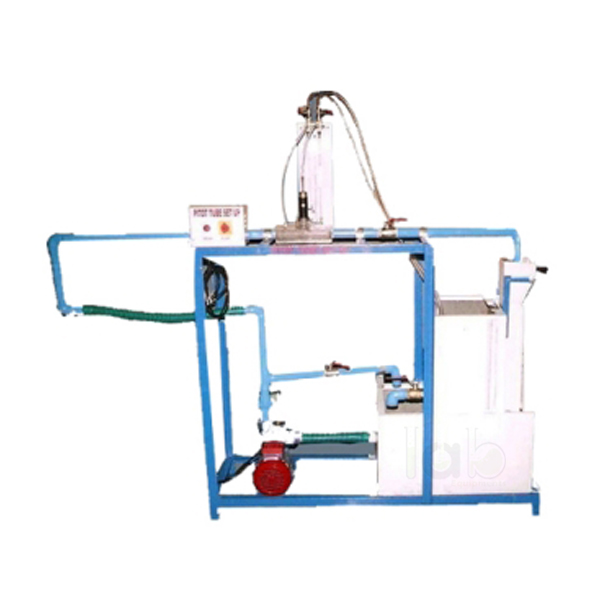

Pilot Static Tube Set Up Manufacturer,Supplier and Exporter in Ambala India
Product Code : EL-FML-11045
Lab Equipments Ambala is a leading Pilot Static Tube Set Up Manufacturer,and suppliers in Ambala India
EXPERIMENTS:-
To find the point velocity at the center of a tube for different flow rates of water and calibrate the Pitot tube
To plot velocity profile across the cross section of pipe
UTILITIES: –
Water Supply & Drain
Electricity Supply: Single Phase, 220 VAC, 0.5 kW
DESCRIPTION:-
A Pitot tube is used to measure the local velocity at a given point in the flow stress.
A Pitot tube of standard design made of copper / SS is supplied and is fixed below Vernier scale.
The Vernier scale is capable to measure the position of Pitot tube in transparent pipe section.
The pipe has a flow control valve to regulate the flow.
A U-tube manometer is provided to determine the velocity head.
Present Set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc.
Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates.
Flow rate of water is measured with the help of measuring tank and stop watch.
TECHNICAL SPECIFICATION: –
Pitot Tube : Material Copper/SS of compatible size fitted with Vernier Scale
Test Section : Material Clear Acrylic, Compatible to 1” Dia. Pipe
Water Circulation : FHP Pump, Crompton / Sharp make
Flow Measurement : Using Measuring Tank, Capacity 40 Ltrs.
Sump Tank : Capacity 70 Ltrs.
Stop Watch : Electronic
Control Panel : On / Off Switch, Mains Indicator etc.
The whole Set-up is well designed and arranged in a good quality painted Structure
