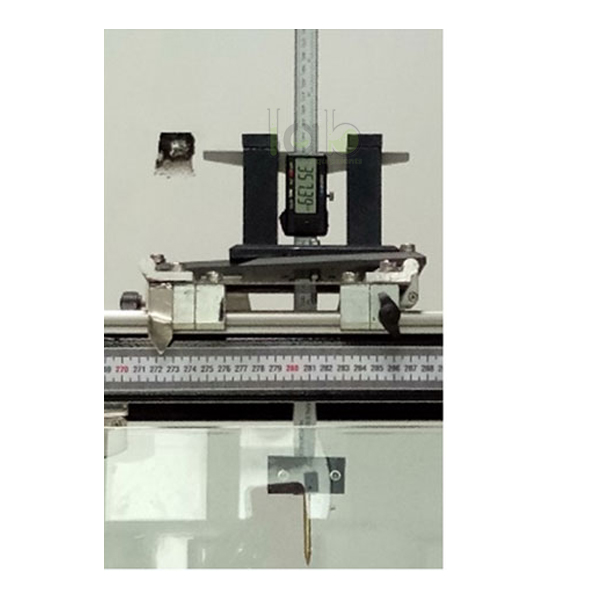

Digital Level Gauge Manufacturer,Supplier and Exporter in India
Product Code : EL-EFFCA-11075
SPECIFICATION
Measurement either with probe tip or hook
Vertically travelling probe tip or hook
Scale to indicate the discharge depth
Use of corrosion resistant materials
Digital display to indicate the dischargedepth
Description :-
The core element of is a probe tip or a hook.
The instrument travels vertically.
The discharge depth is directly read on a scale.
The probe tip is made in way enabling to easily observe when the tip touches the water surface.
Alternatively, to the probe tip, a hook can be used.
To measure the discharge depth, the tip of the hook breaks through the water surface from below.
The level gauge is mounted on a carrier.
The carrier can be placed upon and fixed to any position of the experimental section.
TECHNICAL DETAILS
Dimension LxWxH : 150x120x380 mm
Scale
Measuring range : 0…300mm
Graduation : 0.01mm
Max. travel : 300mm
Weight : approx. 2kg
