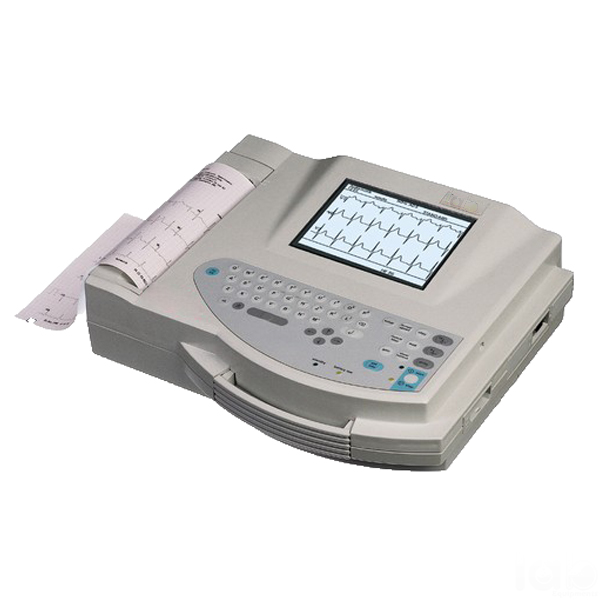

Portable ECG Recorder w/access Manufacturer,Supplier and Exporter in India

Product Code : EL-MDE-10857
Lab Equipments Ambala is a leading Portable ECG Recorder w/access Manufacturer,and suppliers in Ambala, Portable ECG Recorder w/access Manufacturer,and suppliers in South Africa, Portable ECG Recorder w/access Algeria (Algiers), Portable ECG Recorder w/access Angola (Luanda), Portable ECG Recorder w/access Argentina (Buenos Aires), Portable ECG Recorder w/access Armenia (Yerevan), Portable ECG Recorder w/access Australia (Canberra), Portable ECG Recorder w/access Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

DESCRIPTION:
Electrocardiogram (ECG) digital monitor and recorder, 12-leads detection, multi-channel recording, portable, AC and battery powered, with printer and accessories

SPECIFICATIONS:
ECG analysis and full interpretation (rhythm and events), real-time and manual
ECG diagnostic monitor and recorder, with printer
3- or 6-channels recording, depending on the available model

ECG features:
Laboratory Equipments Ambala Common Mode Rejection Ratio (CMRR) > 89 dB
frequency response (minimum guaranteed) 0.05 – 150 Hz
accuracy of input signal reproduction ± 5 %
12 standard derivations aVR, aVL, aVF, I, II, III and V1 – V6
simultaneous 12-leads acquisition
adjustable ECG acquisition and visualisation modes
ECG gain 2.5, 5, 10, 20 mm/mV and Auto, accuracy ± 5 %
Adjustable ECG sweep (trace speed in mm/s)
HR range 30 – 300 bpm with rhythm analysis
calibration signal 1 mV ± 5 %
input impedance > 2.5 MOhm or > 50 MOhm, depending on the available model
pacemaker rhythm detection Laboratory Equipments Ambala
auto-zero feature
selectable/adjustable filters: baseline correction and Baseline Drift Removal (BDR); AC (mains frequency suppression); Muscle Artefact (EMG)
defibrillation and AC fluctuation protection, baseline recovery < 5 s after defibrillation
internal noise level < 15 microV (p-p)
current leakage to the patient < 10 microA

Built-in printer:
paper speed (minimum guaranteed) 5, 12.5, 25 and 50 mm/s, accuracy ± 5 %
compatible with roll and Z-folded paper (80 mm 3-channel, 110 mm 6-channel)
thermal printing head
automatic and manual print (selectable modes, ECG traces and reports)
3 or 6 channel recording, depending on the available model

Integrated keyboard
Display, backlit colour TFT LCD, 5 – 8 inch diagonal depending on the available model
Visualisation of ECG channels, patient data, date/time, settings, analysis/interpretation, battery status, system messages and alarms
Patient data input
Internal storage for patient data, exams, analysis, interpretations and settings
Data and report export feature
Data/USB and network interface
Adjustable visualisation settings, with selectable ECG channels and parameters
Audio/visual alarms for patient connection, paper and printer errors, mains/battery power supply and system errors
Continuous check of electrodes connection and audio/visual alarm on loss of signal
Automatic switch to battery in case of power failure, automatic recharge on connection to mains
Power requirements 110 – 220 V / 50 – 60 Hz
Power consumption 80 W
Automatic self-test and continuous system monitoring
Built-in rechargeable battery, autonomy > 2.5 hours or 800 exams whichever higher.
