CTG Monitor With Accessories Manufacturer,Supplier and Exporter in India

Product Code : EL-MDE-10858
Lab Equipments Ambala is a leading CTG Monitor With Accessories Manufacturer,and suppliers in Ambala, CTG Monitor With Accessories Manufacturer,and suppliers in South Africa, CTG Monitor With Accessories Algeria (Algiers), CTG Monitor With Accessories Angola (Luanda), CTG Monitor With Accessories Argentina (Buenos Aires), CTG Monitor With Accessories Armenia (Yerevan), CTG Monitor With Accessories Australia (Canberra), CTG Monitor With Accessories Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

DESCRIPTION:

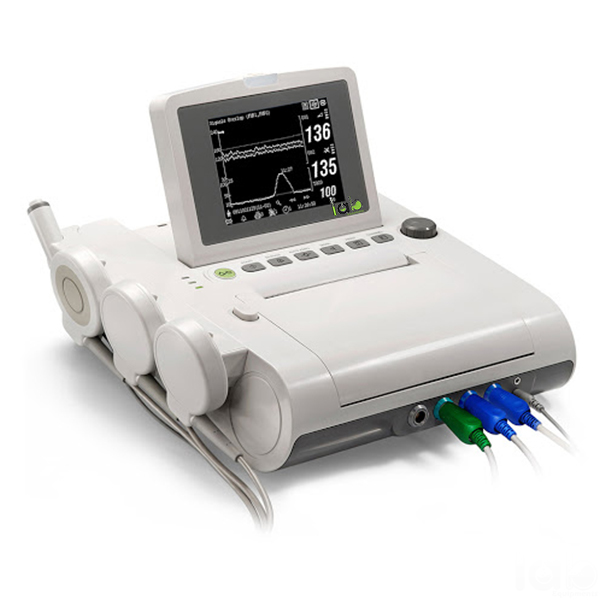

Cardiotocograph (CTG monitor), normal and twins Foetal Heart Rate (FHR) and Uterine Contraction (UC) detection, tabletop, AC and battery powered, with loudspeaker, event marker, printer and accessories

TECHNICAL SPECIFICATIONS:
External cardiotocograph (CTG), foetal heart rate (FHR) and uterine contraction (UC)
Ultrasound FHR and pressure-sensitive UC continuous detection
Automatic transducer detection and dedicated slots for different transducers
Tabletop device
Automatic Foetal Movement (AFM) feature
2 FHR and 1 UC channels
Equipped with wired remote switch for event marking
Integrated loudspeaker and volume level adjustment
Selectable audio channel (FHR1 or FHR2)
Twins detection and FHR, with separate visualisation of the two signals

FHR specifications:
ultrasound output power < 10 mW/cm2
resolution 1 bpm
ultrasound doppler detection with automatic correlation, 2 channels Laboratory Equipments Ambala
ultrasound frequency range 1 – 2 MHz ± 10 % (depending on the available model)
accuracy ± 2 bpm
measurement range 40 – 240 bpm

UC:
accuracy ± 10 %
external pressure-sensitive detection
resolution 1 unit
automatic and manual zero function
measurement range 0 – 100 units

FHR1, FHR2 and UC value and waveform visualisation and printing

Integrated thermal printer:
printing area 110 – 112 mm wide
adjustable paper speed 1, 2 and 3 cm/min
Z-folded thermal paper supply
graduated paper with separate print areas and scales for FHR1, FHR2 and UC
continuous printing, real-time and manual print features

Patient information input and exam storage capabilities
Data/network connection interface
Display, LCD 5.6 inches, and control panel visualising all working parameters, signals (signal quality, audio settings, FHR1, FHR2, UC, FM) with waveform, alarms, power supply / battery status and system messages
Internal data storage
Automatic self-test
Power consumption 50 W
Audio/visual alarms for FHR1 and FHR2 (low/high, adjustable thresholds, with silencing feature), loss of signal, battery and power supply status, paper/printer and system errors
Battery autonomy > 2 h
Power requirements 110 – 220 V / 50 – 60 Hz
Compact design, suitable for cleaning with hospital-grade detergents
Battery and AC powered, with automatic switch between modes and automatic recharge when connected to mains
Integrated battery charger
