Handheld Pulse Oximeter Incl. Respiratory Manufacturer,Supplier and Exporter in India

Product Code : EL-MDE-10855
Lab Equipments Ambala is a leading Handheld Pulse Oximeter Incl. Respiratory Manufacturer,and suppliers in Ambala, Handheld Pulse Oximeter Incl. Respiratory Manufacturer,and suppliers in South Africa, Handheld Pulse Oximeter Incl. Respiratory Algeria (Algiers), Handheld Pulse Oximeter Incl. Respiratory Angola (Luanda), Handheld Pulse Oximeter Incl. Respiratory Argentina (Buenos Aires), Handheld Pulse Oximeter Incl. Respiratory Armenia (Yerevan), Handheld Pulse Oximeter Incl. Respiratory Australia (Canberra), Handheld Pulse Oximeter Incl. Respiratory Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

DESCRIPTION

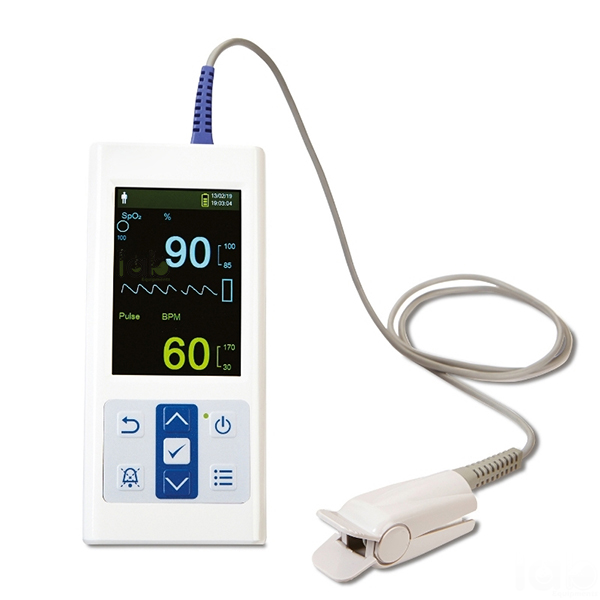

Handheld, portable, battery powered pulse oximeter, displaying patientoxygen saturation (SpO2), pulse rate and respiratory rate in real time.

SPECIFICATIONS:
MEASUREMENT
SpO2 resolution: 1 %.
SpO2, pulse rate and respiratory rate monitor, for children, neonates and adults.
Pulse Rate detection includes the range: 30 - 240 bpm.
SpO2 detection includes the range: 70 - 100 %.
Laboratory Equipments Ambala SpO2 accuracy (in the range at least 70 - 100%): within ± 2% in ideal conditions in adults, and within ± 3% for all patients and perfusion / movement conditions.
Respiratory rate includes the range 5 to 80 rpm.
Pulse Rate resolution: 1 bpm.
Pulse Rate accuracy within ± 3 bpm in ideal conditions.
Laboratory Equipments Ambala Respiratory rate accuracy within ± 2 rpm in ideal conditions
Respiratory rate resolution: 1 rpm

DISPLAY
Display indicates high and normal respiratory rate count for inputted age.
Patient age group input feature.
Data display refresh rate ≤ 5 s
Display with main parameters: %SpO2, pulse rate, respiratory rate, signal quality, status messages, battery state indication.
Display indicates when SpO2 < 90% (hypoxaemia per WHO guidelines.)

FEATURES
Laboratory Equipments Ambala Design enables use in demanding environments, e.g. shock, vibration
Suitable for detection in low perfusion conditions down to perfusion index of 0.1%.
Automatic correction for movement and ambient light artefacts
Audible and visual alarms for sensor error or disconnected, system errors, low battery.

CASING
Enclosure protection.
Overall device and probe weight < 300 g.
Case and probe suitable for cleaning and disinfection with hospital-grade cleaning products.

ELECTRICAL CHARACTERISTICS
Protection against defibrillator discharges.
Suitable for operation by battery and by mains power supply, if connected and/or recharging.
Operated by rechargeable, non-replaceable Li-ion battery, power supply
External AC battery charger, plug style and voltage as per local supply.
Automatic switch between battery and mains powered modes, when recharging or in mains power failure.
Automatic power-off after period of no use.
The display shows which power source is in use.
Running time on battery only ≥ 20 hours.

ENVIRONMENTAL CONDITIONS
Storage conditions: 0 to 50 deg C, 10 to 95% relative humiditynon-condensing
Operarting conditions: 5 to 40 deg C, 10 to 90 % relative humiditynon-condensing
