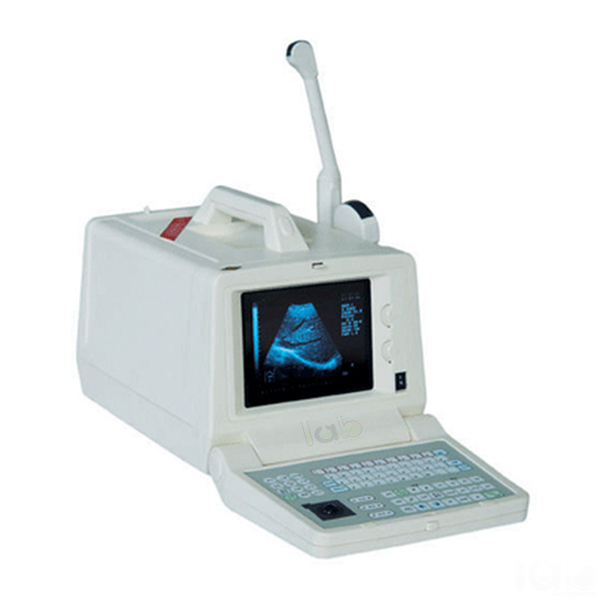

Ultrasound Scanner Mobile w/access Manufacturer,Supplier and Exporter in India
Product Code : EL-MDE-10865
Description:
Laboratory Equipments Ambala Scanner, ultrasound, mobile, with accessories to be used in health infrastructures for diagnostic imaging applications: general abdomen, obstetrics and gynaecology, small parts, neonatal head and hip, cardio-vascular, urology and intra-operative
Technical specificaions:
High performance ultrasound scanner
System integrates scanner, 2 probes, matching trolley and video-printer
Imaging display modes: B, dual B, M, B and M
Adjustable field-of-view, 6 level zoom
Imaging technologies: dynamic frequency imaging, multi-stage focusing, aperture control
Depth range selection: convex sector image and linear image, 3 steps
Image orientation: lateral and vertical inversion (in B mode)
Freeze function with storage of approx. 25 images
Piezoelectric probes, electronically scanned: convex and linear
Compact and lightweight, easy to transport and position
Alphanumeric keyboard with trackball and time gain control (TCG)
Measurements and analysis:
Calibre control: trackball
B-mode image: distance, area and circumference by ellipse and trace method, volume, ratio, gestational age, foetal weight, angle
Gestational table: user programmable
M-mode: velocity, time interval, depth, heart rate, LV function
Alpha-numerics & graphics:
Text annotations and body markers
High resolution B/W monitor, approx. 25 cm diagonal (across), equals to 10 inch, fit with reflection filter
Image grey scale: 256 levels
Video output: 625 lines/frame
Two transducer ports leave 2 probes permanently available, electronic switch between probes
Data communication interface: RS232, BNC, IEEE, USB or equivalent
Power supply: 220 V / 50 Hz
Automatic display of: date and time, focal point setting, image orientation indicator, image scrolled position, distance scale mark, M-mode time mark, grey scale for calibration.
