Slip Creep Measurement Apparatus Manufacturer,Supplier and Exporter in India

Product Code : EL-TOML-11028
Lab Equipments Ambala is a leading Slip Creep Measurement Apparatus Manufacturer,and suppliers in Ambala, Slip Creep Measurement Apparatus Manufacturer,and suppliers in South Africa, Slip Creep Measurement Apparatus Algeria (Algiers), Slip Creep Measurement Apparatus Angola (Luanda), Slip Creep Measurement Apparatus Argentina (Buenos Aires), Slip Creep Measurement Apparatus Armenia (Yerevan), Slip Creep Measurement Apparatus Australia (Canberra), Slip Creep Measurement Apparatus Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

Specifications:

D.C. Motor – 1 HP, 1500 RPM, variable speed.

Driving & Driven puilies of equal diameters.

Brake drum along with spring balance.

Fiat Belt of fixed length of following materials –

(i)Fabric Belt

(ii)Canvas Belt.

(iii)Rubber Belt.

Belt tightening arrangement.

Speed Controller unit.

Two Channel digital RPM Indicator.

Stroboscope.

Description :-

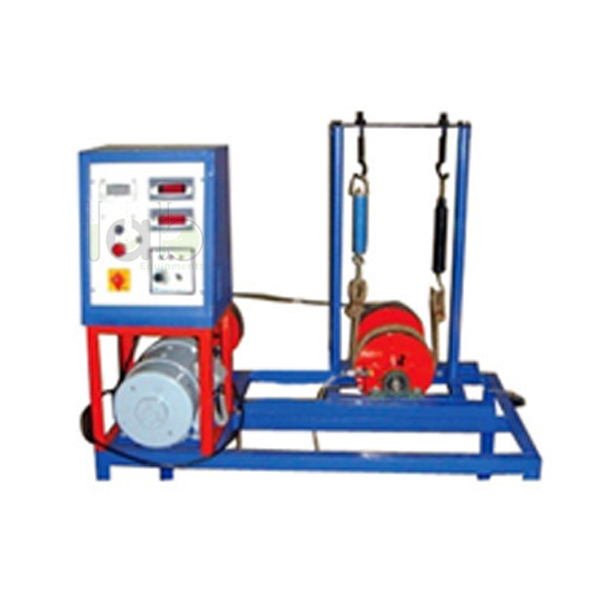

The apparatus consists of a variable speed D.C. Motor, Driving pulley and Driven pulley of equal diameter.

The pulleys are mounted on input shaft (Motor shaft) and output shaft.

The driven pulley can slide on the base with bearing block to change initial tension in belt.

Brake drum is mounted on output shaft helps to measure power output.

The motor speed is varied by dimmerstat.

A two channel RPM Indicator is provided to measure speeds of driven and driving pullies respectively.

Experimentation –

To measure co-efficient of friction between pulley material and different belt materials.

To measure power transmitted with varied belt tensions and plotting graph of (T1 – T2).Tension Characteristics.

To measure percentage slip at fixed belt tension by varying load on brake drum and plot graph of (T1-T2)

Vs.percentage slip.i.e. Slip Characteristics. Finding a creep zone from graph.

To measure belt slip speed and observe the limiting value float at constant speed when the slip just starts.

Service Required:

230 V.A.C. stabilized power supply

Space -. 1.5m x 1.5 m.
