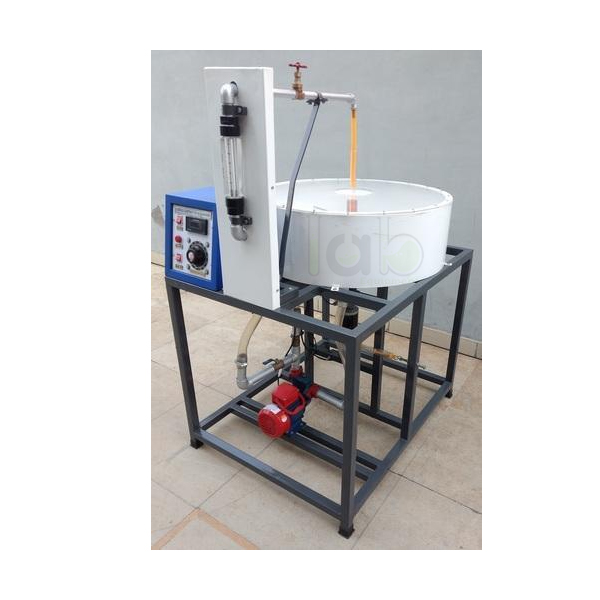

Coriollis Component Of Acceleration Manufacturer,Supplier and Exporter in India
Product Code : EL-TOML-11027
Specifications:
Main Tank with fiberglass lining.
Rotating Arms 9/6 mm dia, 300 mm long.
Motor – Swinging field, D.C., 0.5 HP.
Rotameter
Monoblock Pump
Control Panel comprising of –
(i) Speed Control Unit.
(ii) Speed Indicator.
(iii) Necessary switches.
Rigid support frame.
Description :-
This set up is designed to study coriollis component of Acceleration of a slider crank Mechanism.
The apparatus uses hydraulic analogy to represent the rotating slider.
It consists of a rotating block with two arms in opposite direction.
These tubes can be rotated at various speeds by using a swinging field motor, which also acts as a dynamometer to measure torque applied to rotating tubes.
A Perspex window on top cover helps to visualize the process.
Rotameter is used to measure water flow rate through tubes.
Water is circulated by small monoblaock pump.
Range of Experiment:
Coriollis Component of Acceleration can be determined at various speeds of rotation and water flow rates.
Service Required:
A.C. Single Phase .230 V. stabilized supply.
Floor Space -1.5 m X 1.5 m.
