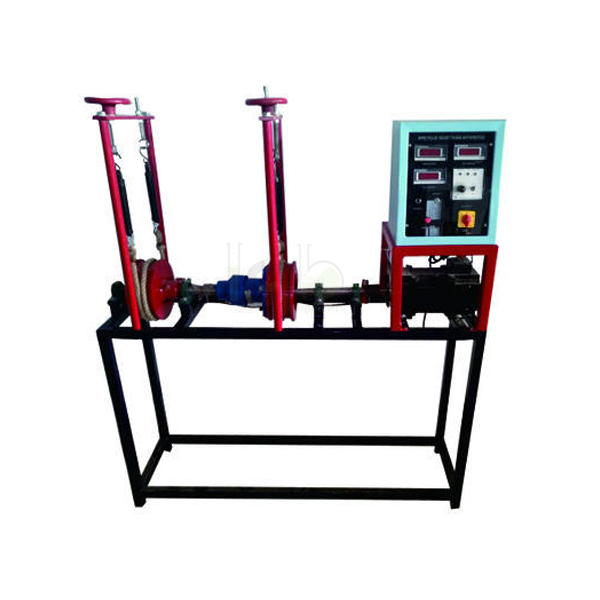

Epicyclic Gear Train Holding Torque Apparatus

Product Code : EL-TOML-11029
Lab Equipment Ambala is a leading Epicyclic Gear Train Holding Torque Apparatus Manufacturer,and suppliers in India, Epicyclic Gear Train Holding Torque Apparatus Manufacturer,and suppliers in South Africa.Epicyclic Gear Train Holding Torque Apparatus Suppliers in Mozambique,Epicyclic Gear Train Holding Torque Apparatus A quality product from Lab Equipment Ambala ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

Specifications:
1. External type Epicyclic Gear Train:
a. Bearing blocks for input & output shafts.
b. A gear train with Holding drum and handle.
2. Internal Type Epicyclic Gear Train:
a. A compact Gear Train.
b. Variable speed D.C. Motor
c. Rope brake arrangement to measure output torque and holding torque.
3 Control Panel comprising of
a. Digital Ammeter and Voltmeter.
b. RPM Indicator.
c. Speed Controller.

Description :-
It is a motorized unit consisting of SUN gear mounted on input shaft.
Two plane gears mesh with the annular gear.
These planet gears are mounted on a common arm to which output shaft is fitted.
Loading arrangement is provided for loading the system and to measure Holding Torque.

Experimentation –
To measure epicyclical gear ratio between Input shaft and Output shaft.
To measure epicyclical gear ratio between Input shaft and holding drum.
To measure Input torque, Holding torque and Output torque.

Service Required –
Floor Space – about 1.5m x 2m.
230 V.AC stabilized power supply.
