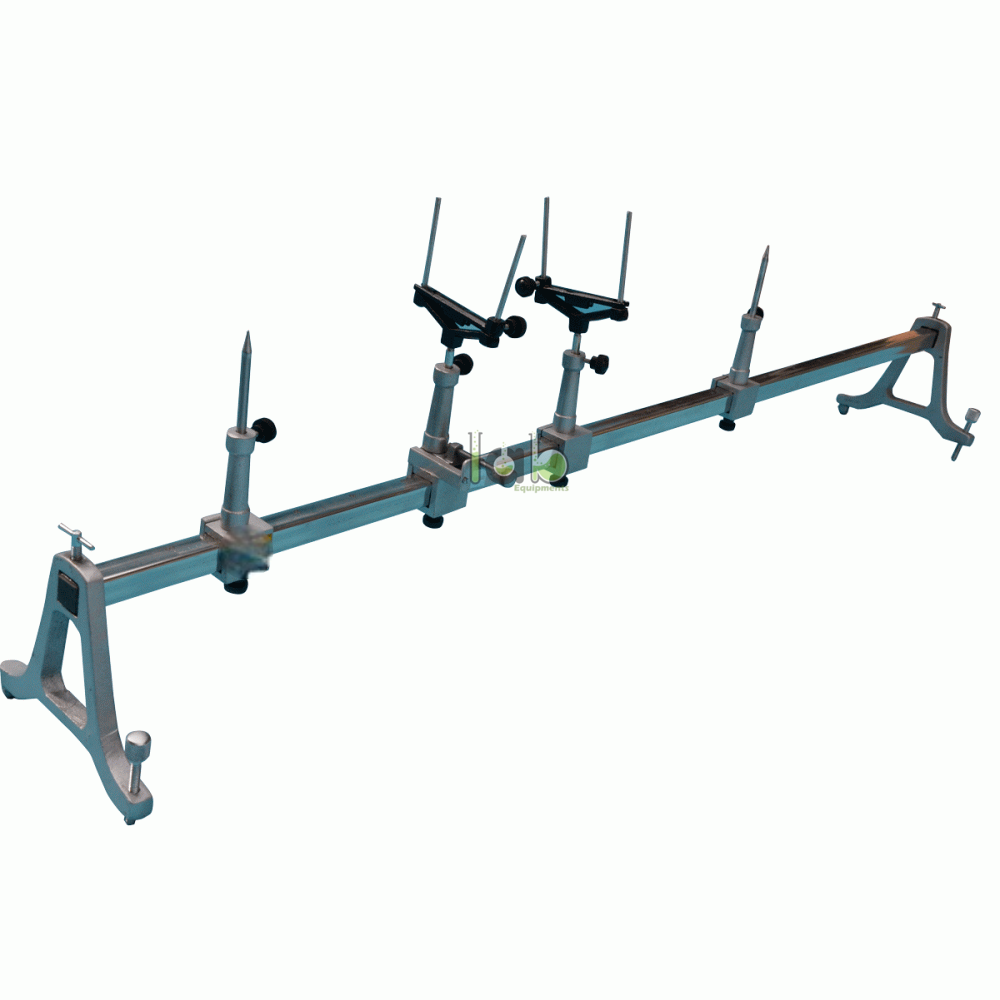

Single Rod Optical Bench System

Product Code : SCL-LAO-11276

The Single Rod Optical Bench System provides a linear support on which optical carriers can be positioned and moved during geometrical-optics experiments. The single-rod arrangement helps users maintain the object, optical element and screen along a common axis while changing their relative distances.

Graduations or a separate measuring scale may allow object distance and image distance to be recorded directly, subject to the supplied configuration. The exact rod material, working length, scale range, least count, carrier design and included accessories must be confirmed from the current manufacturing specification.

Key Features

• Single-axis alignment: Supports consistent positioning of objects, lenses, mirrors and screens along one optical path.
• Adjustable carriers: Allows compatible holders to be moved for focusing and distance measurements.
• Measured experiments: Supports object-distance, image-distance and focal-length observations when a graduated scale is provided.
• Stable practical setup: Reduces unwanted movement during supervised optics experiments.
• Multiple experiment uses: Suitable for lens, mirror, magnification and image-formation activities.
• Reusable laboratory equipment: Designed for repeated classroom demonstrations and student practical sessions.
• Modular arrangement: Can accommodate different optical holders and accessories when mechanically compatible.

Technical Specifications

What's Included in the Kit

• One single optical bench rod or rail assembly
• Bench supports or end stands
• Sliding optical carriers
• Lens holder
• Mirror holder
• Object or illumination holder
• Projection screen and holder
• Lenses, mirrors or light source

Applications and Uses

• Determining the focal length of a convex lens.
• Studying object distance, image distance and magnification.
• Verifying the thin-lens relationship using measured positions.
• Observing real, inverted and magnified or diminished images.
• Determining the focal length of a concave mirror with suitable accessories.
• Comparing the behaviour of different lenses or mirrors.
• Aligning light sources, optical elements and projection screens.

Institutions can pair the system with the Light and Optics equipment range, explore broader Physics Laboratory Equipment, add components from the Ray Optics Kit, or review curriculum-oriented NCERT science kits.

How to Use the Single Rod Optical Bench System

1. Place the optical bench on a stable, level laboratory table.
2. Check that the rod is straight and the carriers slide without excessive looseness.
3. Fit the object, lens or mirror, and screen into compatible holders.
4. Position all component centres along the same optical axis.
5. Illuminate the object using a suitable classroom light source.
6. Move the lens, mirror or screen until a sharp image is obtained.
7. Read and record the carrier positions from the confirmed measuring scale.
8. Calculate the required object distance, image distance or focal length.

Safety note: Secure every carrier before taking a reading. Handle glass optical components by their edges and never direct intense light or laser beams toward the eyes.

Care & Maintenance

• Keep the rod clean and dry so carriers move smoothly.
• Do not force a carrier past an obstruction or overtighten its locking screw.
• Clean lenses and mirrors separately with an optical-grade cloth.
• Store the bench horizontally or in supported packaging to prevent bending.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and supplies scientific laboratory instruments, physics apparatus, educational models and experiment kits from Ambala, India. Its published optics range includes optical benches, lenses, mirrors, holders, projection screens and ray-optics teaching equipment. The company supplies schools, colleges, universities, institutional projects and international customers. Buyers should request the current dimensional drawing, scale specification, carrier list and pre-dispatch inspection details before ordering.

Frequently Asked Questions

What is a Single Rod Optical Bench System used for?

It is used to align optical components and measure their relative positions during lens, mirror, focal-length and image-formation experiments.

What is the length of the optical bench?

The rod and usable working lengths have not been confirmed. Both values should be verified because the supports and end fittings may reduce the available travel.

Does the bench have a graduated scale?

A measuring scale is commonly required for optical-bench experiments, but its presence, range and least count must be confirmed for this model.

Are lenses and mirrors included?

The supplied optical components have not been verified. Request an itemised packing list showing every holder, lens, mirror, screen and light source.

Can carriers be locked in position?

The carrier-locking design has not been confirmed. Verify the adjustment and locking mechanism before institutional procurement.

Is the system suitable for school physics laboratories?

Yes. It is suitable for supervised school and college optics experiments when its working length, scale and accessories match the required syllabus.

Request the confirmed rod length, scale least count, carrier quantity and accessory list, or explore the Light and Optics laboratory equipment category for compatible components.
