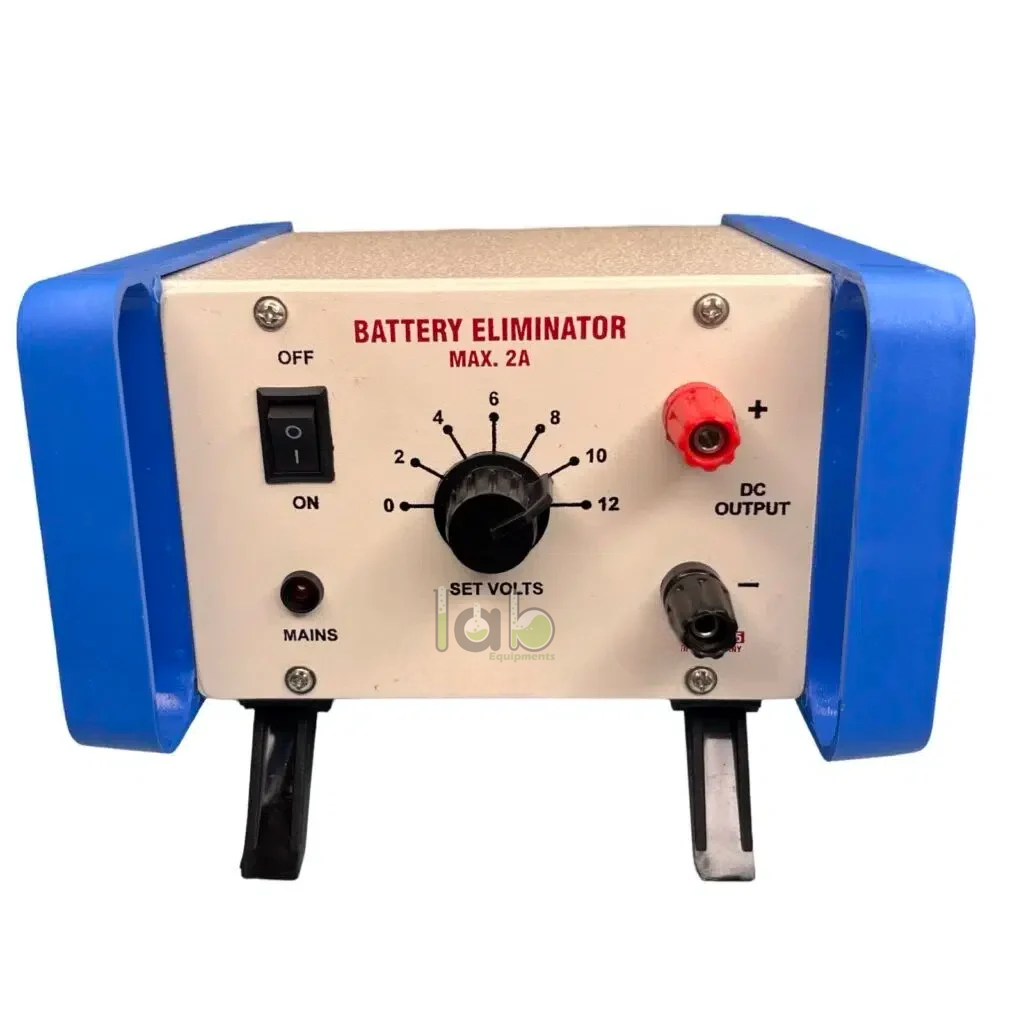

Laboratory Battery Eliminator Unit

Product Code : SCL-EAE-11320

The Laboratory Battery Eliminator Unit is a low-voltage electrical power source used to replace disposable cells in school and college circuit experiments. It provides a reusable supply for operating meters, rheostats, resistive loads, electromagnets and other compatible educational apparatus under supervised laboratory conditions.

Product Description

A battery eliminator converts an external electrical input into a lower laboratory output suitable for basic physics and electronics experiments. Depending on the confirmed design, the unit may provide selectable fixed voltages, continuously adjustable output or both. Output terminals allow the supply to be connected to an experimental circuit using compatible laboratory leads.

The apparatus is intended to provide more consistent operation than repeatedly replacing dry cells during practical work. It can support Ohm’s law, resistance, electromagnetism and meter experiments when its voltage, current and protection ratings match the connected apparatus. Exact electrical specifications must be confirmed before procurement or publication.

Key Features

• Reusable laboratory supply: Reduces dependence on disposable primary cells during repeated experiments.
• Low-voltage output: Intended for compatible educational circuits; exact output range.
• Voltage selection: May provide stepped or continuously adjustable output depending on the supplied model.
• Laboratory terminals: Supports connection to meters, rheostats, coils, lamps and circuit boards.
• Bench-top operation: Designed for supervised school, college and training-laboratory use.
• Output protection: Fuse, current limiting or short-circuit protection.
• Clear circuit integration: Suitable for demonstrations requiring a stable external DC source.

Technical Specifications

What's Included

• Laboratory battery eliminator unit
• Integrated input cable or external adapter
• DC output terminals
• Laboratory connecting leads
• Replacement fuse
• Operating instructions and circuit guidance

Applications

• Powering low-voltage Ohm’s law experiments.
• Operating rheostats, resistance boxes and simple loads.
• Supplying electromagnets, coils and electric-bell models.
• Supporting galvanometer, ammeter and voltmeter practicals.
• Replacing dry cells in repeated classroom circuit demonstrations.
• Providing a bench supply for introductory electronics activities.

Related equipment includes the Constantine Wire Rheostat, the Plug-Type Resistance Box, the Electric Bell Demonstration Model and the broader Electrical and Electronics Equipment category.

How to Use

1. Place the unit on a dry, stable and ventilated laboratory bench.
2. Confirm that the input and output ratings match the intended experiment.
3. Set the output control to the lowest or switched-off position.
4. Connect the experimental circuit to the correct output terminals.
5. Switch on the unit and select the required low-voltage output.
6. Monitor voltage and current using suitable laboratory meters.
7. Do not exceed the confirmed output-current rating.
8. Switch off and disconnect the unit before altering the circuit.

Safety note: Use only with the specified input supply. Do not expose internal mains wiring, short the output terminals, block ventilation openings or handle the unit with wet hands.

Care & Maintenance

• Keep the enclosure, controls and terminals clean and dry.
• Inspect cables, plugs and sockets regularly for insulation damage.
• Replace fuses only with the manufacturer-specified type and rating.
• Disconnect the unit before cleaning, inspection or storage.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala supplies educational electrical apparatus for school, college and institutional physics laboratories. Its published laboratory guidance includes battery eliminators and regulated power supplies among the equipment used for circuit practicals. The company also supplies compatible rheostats, resistance boxes, meters and demonstration apparatus. Buyers should obtain the complete electrical specification and safety documentation before ordering.

Frequently Asked Questions

What is a Laboratory Battery Eliminator Unit used for?

It supplies low-voltage electrical power to compatible laboratory circuits as an alternative to disposable batteries.

Does it provide DC output?

Battery eliminators commonly provide DC output, but the exact output type of this unit must be confirmed.

Which voltage settings are available?

The voltage range and individual settings are not published for the requested unit.

What is its maximum current capacity?

The maximum continuous and short-duration current ratings require manufacturer confirmation.

Is the output regulated?

The available public material does not confirm whether the output is regulated or unregulated.

Does it include short-circuit protection?

No product-specific protection system has been verified. Request confirmation of fuse, current-limit and short-circuit features.

Request the confirmed output range, current capacity, input rating and protection details, or explore the Electrical and Electronics Equipment category for related circuit apparatus.
