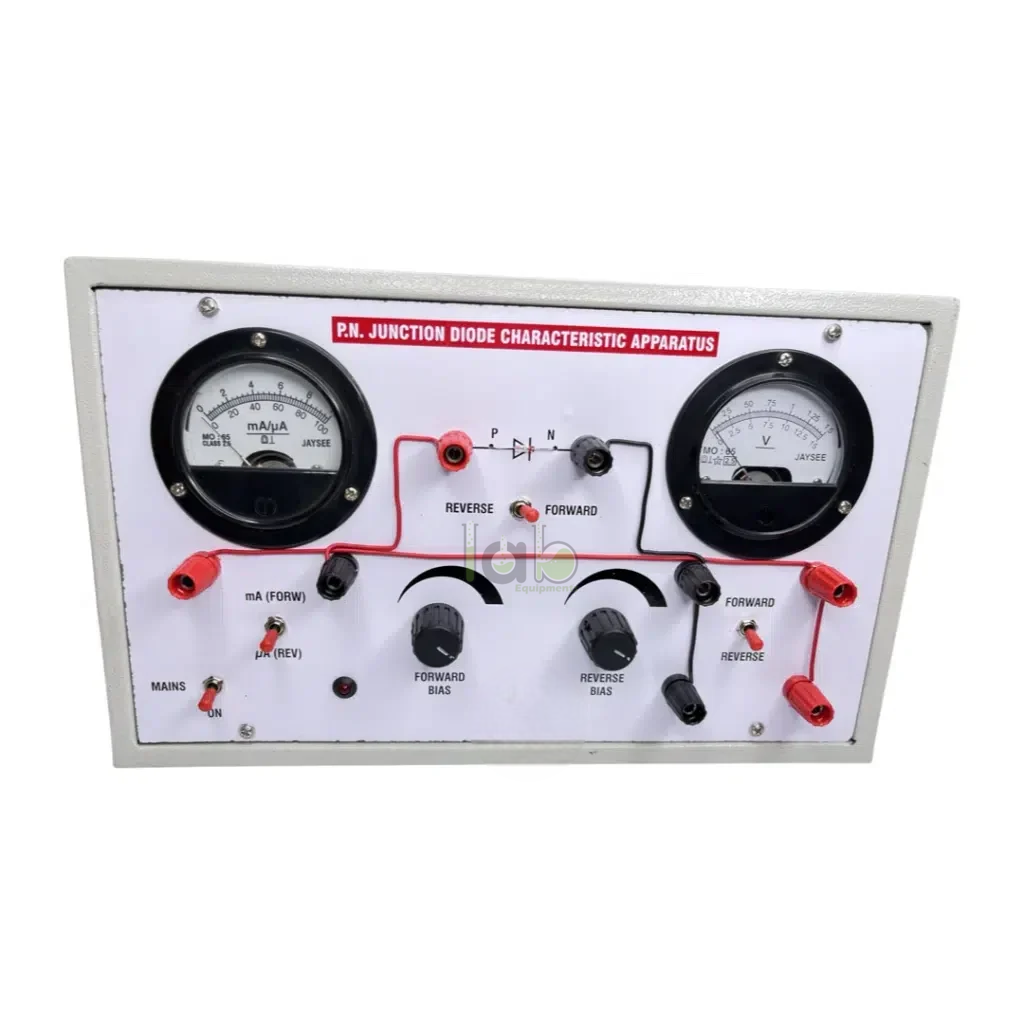

Electronics Laboratory PN Diode Trainer

Product Code : SCL-EAE-11199

The Electronics Laboratory PN Diode Trainer is a semiconductor electronics laboratory apparatus used to study PN junction diode behaviour, forward-bias characteristics, reverse-bias characteristics, voltage-current response, and low-voltage diode circuit operation. It supports practical learning for engineering colleges, polytechnics, ITI/TVET centres, physics laboratories, electronics labs, STEM training centres, distributors, and institutional procurement buyers.

Product Description

The Electronics Laboratory PN Diode Trainer from Lab Equipments Ambala is best positioned under Physics Lab / Electrical and Electronics / Semiconductor Devices Trainer. A dedicated product page with final product code, diode type, diode material, voltage range, current range, meter arrangement, biasing circuit, terminals, protection, accessories, and documentation should be confirmed before publishing.

A PN diode trainer helps learners observe how a junction diode conducts in forward bias and restricts current in reverse bias within its rated operating limit. Depending on the final configuration, the trainer may support PN diode V-I characteristics, threshold-voltage observation, reverse leakage study, rectifier basics, and comparison of silicon or germanium diode behaviour.

Key Features

• PN junction diode study: supports practical observation of forward-bias and reverse-bias diode behaviour.
• V-I characteristics experiment: helps students record diode voltage and current readings for characteristic-curve plotting where supported.
• Forward-bias learning: enables study of conduction region, knee voltage, threshold behaviour, and current increase with applied voltage.
• Reverse-bias learning: may support observation of reverse leakage current within safe limits; confirm final circuit and meter range.
• Semiconductor devices trainer: suitable for electronics engineering, physics, instrumentation, and STEM laboratory sessions.
• Measurement-compatible setup: may support voltmeter, ammeter, milliammeter, microammeter, multimeter terminals, or built-in meters if supplied.
• Specifications pending: diode type, material, supply range, meter range, current limiting, terminals, and accessories must be verified.

Technical Specifications

What’s Included in the Kit

• Electronics Laboratory PN Diode Trainer main unit or experiment panel
• PN junction diode section, diode socket, or supplied diode device
• Forward-bias and reverse-bias circuit section
• Current-limiting resistor, protection resistor, variable control, or biasing network
• Voltmeter, ammeter, milliammeter, microammeter, multimeter terminals, or built-in display
• DC power supply, external adapter, battery holder, or power-input terminals
• Patch cords, connecting leads, jumper wires, experiment manual, observation sheet, graph worksheet, or circuit diagram

Applications / Uses

• Studying PN junction diode forward-bias characteristics
• Studying reverse-bias diode behaviour and leakage-current observation where supported
• Plotting diode voltage-current characteristics in electronics laboratories
• Demonstrating diode polarity, conduction threshold, knee voltage, and current-limiting concepts
• Supporting rectifier basics and semiconductor-device theory where included in the supplied manual
• Teaching low-voltage measurement practice for physics, electronics, instrumentation, and STEM practicals

How to Use the Electronics Laboratory PN Diode Trainer

1. Place the PN diode trainer on a dry, stable laboratory bench.
2. Confirm the diode type, supply voltage, current limit, meter range, polarity marking, and circuit diagram before switching on.
3. Connect the PN diode in forward bias according to the approved wiring diagram.
4. Connect the ammeter or current display in series and the voltmeter or voltage display across the diode if external meters are used.
5. Set the supply or current-control section to the minimum output before energising the circuit.
6. Increase the voltage gradually and record diode voltage and current readings without exceeding the confirmed rating.
7. Repeat the experiment in reverse bias only if the trainer and manual specify a safe reverse-bias procedure.
8. Plot the forward and reverse V-I characteristics as instructed in the supplied experiment manual.
9. Switch off the supply before changing polarity, diode type, meter range, or circuit connections.

Safety note: Use the Electronics Laboratory PN Diode Trainer only with the confirmed low-voltage DC supply and current-limiting arrangement. Do not connect the experiment circuit directly to mains supply. Observe diode polarity, avoid short circuits, do not exceed the confirmed forward-current or reverse-voltage rating, and switch off power before changing connections.

Care & Maintenance

• Keep the panel, diode socket, terminals, switches, meters, controls, and connecting leads clean and dry.
• Inspect diode polarity marking, socket condition, test leads, fuses, current-limit control, and supply output before use.
• Do not force diode leads into sockets or operate the diode beyond confirmed voltage, current, reverse-voltage, power, or meter-range limits.
• Store the trainer and spare diode components in a dry, labelled, dust-controlled cabinet after laboratory use.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. The brand’s verified Electrical and Electronics portfolio includes electronics trainer kits, power supply units, analog and digital multimeters, semiconductor devices trainers, logic circuit trainers, renewable energy training modules, and related electrical practical equipment. Its physics laboratory guidance also references diode characteristics as a practical area supported by measurement instruments. Buyers should request final specifications before procurement to confirm product code, diode type, supply range, meter layout, protection, accessories, packing, and documentation.

Frequently Asked Questions

What is an Electronics Laboratory PN Diode Trainer used for?

An Electronics Laboratory PN Diode Trainer is used to study PN junction diode forward-bias and reverse-bias behaviour, voltage-current characteristics, threshold voltage, and basic semiconductor-device operation.

Which PN diode type is supplied?

The supplied diode type is not verified. Confirm whether the trainer includes a silicon diode, germanium diode, replaceable PN junction diode, or a fixed diode mounted on the panel.

What readings are recorded during a PN diode experiment?

Students typically record diode voltage and diode current for different applied voltages, then plot the forward and reverse V-I characteristics according to the supplied experiment manual.

Does the trainer include meters?

The meter arrangement is not verified. Confirm whether the trainer includes built-in analog meters, digital meters, external multimeter terminals, or separate voltmeter and ammeter accessories.

Can this PN diode trainer be connected directly to mains power?

No. The experiment circuit should be used only with the confirmed low-voltage DC supply or approved adapter. Direct mains connection can damage the trainer and create an electrical hazard.

What should be confirmed before ordering?

Confirm product code, PN diode type, diode material, voltage range, current range, current-limiting method, meter arrangement, terminals, connecting leads, experiment manual, packing, and documentation.
