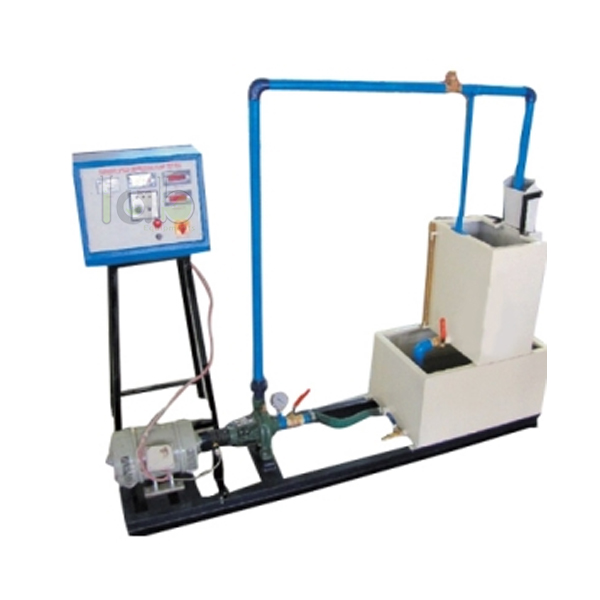

Centrifugal Pump Test Rig

Product Code : EL-HML-11053
Lab Equipments Ambala is a leading Centrifugal Pump Test Rig Manufacturer,and suppliers in Ambala, Centrifugal Pump Test Rig Manufacturer,and suppliers in South Africa, Centrifugal Pump Test Rig Algeria (Algiers), Centrifugal Pump Test Rig Angola (Luanda), Centrifugal Pump Test Rig Argentina (Buenos Aires), Centrifugal Pump Test Rig Armenia (Yerevan), Centrifugal Pump Test Rig Australia (Canberra), Centrifugal Pump Test Rig Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

Specifications:
Centrifugal monoblock- 1 h.p.
Pressure gauge and vacuum gauge for measuring the head.
Measuring tank of 400×400 x400 mm OR Water flow energy meter for measuring the discharge.
Stop watch.
Sump tank of sufficient capacity.
Energymeter to measure input power.
A technical manual accompanies the equipment.

Closed Circuit Type With S.S. Tanks, ISI Mark Pumps & Motors, Powder coated.
The closed circuit test rig consists of a “kirloskar make” monoblock centrifugal pump.
The pump is provided with a vacuum gauge on suction pipe and a pressure gauge on discharge pipe.
The gate valve is used to adjust the head on the pump.
The discharge is measured by measuring tank / water flow meter.
The input power is measured by energy meter.

Features­:
The equipment is coated with an attractive and anticorrosive powder coating.
The equipment consists of ISI standard­
(i) Monoblock
(ii) Energymeter
(iii) Water flow meter

Services required :­
440 v, 15 A, stabilized three phase A.C. supply.
Floor area-2 mx2mxl.5m height
Tachometer for speed measurement (can be supplied at extra cost)
