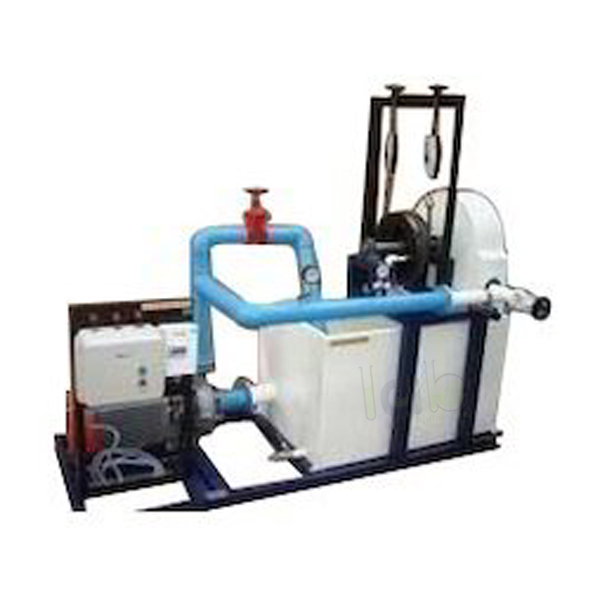

Pelton Wheel Turbine Test Setup Manufacturer,Supplier and Exporter in India

Product Code : EL-HML-11050
Lab Equipments Ambala is a leading Pelton Wheel Turbine Test Setup Manufacturer,and suppliers in Ambala, Pelton Wheel Turbine Test Setup Manufacturer,and suppliers in South Africa, Pelton Wheel Turbine Test Setup Algeria (Algiers), Pelton Wheel Turbine Test Setup Angola (Luanda), Pelton Wheel Turbine Test Setup Argentina (Buenos Aires), Pelton Wheel Turbine Test Setup Armenia (Yerevan), Pelton Wheel Turbine Test Setup Australia (Canberra), Pelton Wheel Turbine Test Setup Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

EXPERIMENT:-

To study the operation of a Pelton Wheel Turbine

To determine the Output Power of Pelton Wheel Turbine

To determine the Turbine Efficiency

DESCRIPTION:-

Pelton Wheel Turbine is only impulse water turbine now in common use named in honor of Sir L.A. Pelton (1829-1908) of California, USA.

It is a tangential flow impulse turbine.

The water strikes the buckets along the tangent of the runner.

he energy available at the Inlet of the Turbine is only kinetic energy.

The Pressure at the Inlet and Outlet of the atmospheric.

This turbine is used for high heads.

The Present Set-up consists of a runner.

The buckets are mounted on the runner.

The water is fed to the turbine, through SS nozzle with a SS spear, by means of Centrifugal Pump, tangentially to the runner.

Row of water into turbine is regulated by adjusting the spear position by the help of a given hand wheel the runner is directly mounted on one end of a central SS shaft and other end is connected to a brake arrangement.

The circular window of the turbine casing is providing with a transparent acrylic sheet for observation of flow on to the buckets.

This runner assembly is supported by rigid MS structure.

Load is applied to the turbine with the help of this brake dynamometer so that the efficiency of the turbine can be calculated.

Pressure Gauge is fitted at the Inlet of the turbine to measure the total supply head to the turbine.

UTILITIES REQUIRED:-

Water Supply and Drain.

Electricity 15 kW, 440V AC, Three Phase

MODEL	JL 105 (1.33 HP)	JL 911 (2 HP)	JL 163 (5 HP)
Output Power	1.33 HP / 1 Kw	2 HP / 1.5 Kw	5 HP / 3.75 Kw
Discharge	300 LPM (Approx.)	400 LPM (Approx.)	630 LPM (Approx.)
Supply Head	25 m	40 m	45 m
Rope Brake Dynamometer	Dia 200 mm	Dia 200 mm	Dia 300 mm
Sump Tank	Capacity 150 Liters.	Capacity 200 Liters.	Capacity 300 Liters.
Water Circulation Centrifugal Pump	Capacity 5 HP, Three Phase	Capacity 7.5 HP, Three Phase	Capacity 15 HP, Three Phase
Speed	1000 RPM (approx.)
Impeller	Material Brass, Bucket type
Nozzle	Material Stainless Steel/Mild Steel
Spear	Material Stainless Steel/Mild Steel
Discharge Measurement	Pitot Tube with Manometer
Control Panel	Star/Delta Starter, Mains Indicator, MCB for overload protection
The whole set-up is well designed and arranged in a good quality painted structure.
