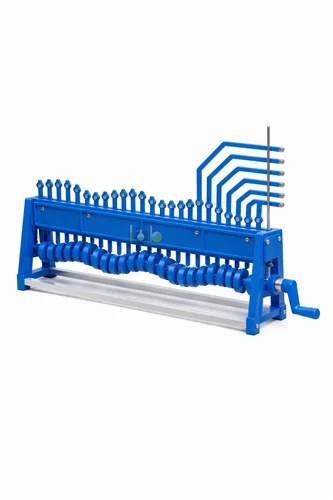

Wave Demonstration Apparatus 24-Pulley
.png)
Product Code : SCL-PMP-11308
The Wave Demonstration Apparatus 24-Pulley is an educational mechanical model used to visualize wave propagation through a sequence of coupled moving elements. It helps students and instructors examine transverse displacement, phase difference, wavelength, amplitude, reflection and standing-wave behaviour in supervised physics demonstrations.
Product Description
The apparatus is configured around 24 pulley positions or moving stations that represent successive portions of a mechanical medium. When the operating mechanism is moved, the connected elements respond sequentially and form a visible wave profile. This allows learners to distinguish local oscillation from the apparent movement of the disturbance through the system.
The model can support qualitative study of crests, troughs, equilibrium position, phase relationships and energy transfer. Depending on the final construction, it may also demonstrate reflected waves, superposition and standing-wave patterns. The pulley dimensions, coupling system, cord arrangement, frame construction and available adjustments require manufacturer confirmation.
Key Features
- 24-pulley configuration: Provides multiple sequential positions for representing a mechanical wave.
- Visible transverse-wave profile: Makes crests, troughs and equilibrium positions easy to identify.
- Phase comparison: Shows neighbouring elements at different stages of an oscillation cycle.
- Wave-propagation model: Distinguishes movement of the disturbance from local motion of the medium.
- Standing-wave potential: May support observation of nodes and antinodes where the supplied mechanism permits.
- Manual teaching format: Suitable for slow, controlled classroom demonstrations.
- Reusable construction: Intended for repeated school, college and STEM laboratory activities.
Technical Specifications
|
Specification |
Detail |
|
Product name |
Wave Demonstration Apparatus 24-Pulley |
|
Brand |
Lab Equipments Ambala |
|
Product type |
Mechanical wave-motion demonstration model |
|
Pulley configuration |
24 pulleys; requested configuration, manufacturer confirmation required |
|
Primary demonstration |
Transverse mechanical-wave propagation |
|
Operating mechanism |
Manual handle, crank or equivalent drive |
|
Supported wave modes |
Transverse; reflection and standing-wave capability |
What's Included
- Wave-demonstration frame and base
- Twenty-four pulley positions
- Connected cords, rods or oscillating elements
- Manual handle or drive arrangement
- Boundary or reflection accessories
- Instruction manual or experiment guide
Applications
- Demonstrating progressive transverse-wave motion.
- Identifying crests, troughs and equilibrium positions.
- Explaining amplitude, wavelength and phase difference.
- Comparing local element oscillation with wave propagation.
- Investigating reflection and superposition where supported.
- Producing standing-wave patterns and identifying nodes and antinodes.
Related resources include the Transverse Wave Pendulum Apparatus, the Doppler Effect Kit, the company’s Physics Equipment Guide and broader Physics Laboratory Equipment.
How to Use the 24-Pulley Wave Demonstration Apparatus
- Place the apparatus on a stable, level demonstration table.
- Inspect the pulleys, cords and moving connections for obstruction.
- Confirm that all elements move freely and remain correctly aligned.
- Operate the handle or excitation mechanism slowly.
- Observe the wave profile developing across the pulley sequence.
- Identify crests, troughs, amplitude and phase differences.
- Use the supplied boundary arrangement to investigate reflection where available.
- Repeat at other permitted settings to compare wave patterns.
Safety note: Keep fingers, hair and loose clothing clear of pulleys, cords, gears and linkages. Do not force the operating handle if any component becomes jammed.
Care & Maintenance
- Remove dust from the pulleys, frame and linkages with a soft cloth.
- Check cords and couplings periodically for wear or loss of tension.
- Do not bend the frame or apply excessive force to the drive mechanism.
- Secure movable parts before transporting or storing the apparatus.
Why Choose Lab Equipments Ambala
Lab Equipments Ambala manufactures and supplies educational physics apparatus and scientific teaching aids from Ambala, India. Its physics range includes wave-and-sound experiments, mechanics systems, optics equipment and laboratory measuring instruments. The company supplies schools, colleges, universities and technical institutions. Buyers should obtain the finalized 24-pulley drawing, materials specification and packing list before procurement.
Frequently Asked Questions
What is the 24-Pulley Wave Demonstration Apparatus used for?
It is used to visualize mechanical-wave propagation, transverse displacement, phase difference, wavelength, amplitude and related wave behaviour.
Does the apparatus contain exactly 24 pulleys?
The requested product designation specifies 24 pulleys, but the final manufacturer configuration should be confirmed before ordering.
Do the pulleys move along the frame?
Normally, each pulley or connected element moves locally while the disturbance appears to propagate through the sequence.
Can it demonstrate standing waves?
Standing-wave capability depends on the coupling, excitation and boundary arrangement and has not been confirmed for this exact model.
Does the apparatus require electricity?
A fully manual version requires no electricity. The electrical requirement of any motor-driven configuration must be confirmed.
Is it suitable for college physics laboratories?
Yes. It is suitable for supervised senior-secondary and introductory undergraduate instruction when its configuration matches the prescribed experiment.
Request the finalized pulley count, frame drawing, coupling arrangement and operating mechanism, or explore the Physics Laboratory Equipment category for related wave apparatus.
