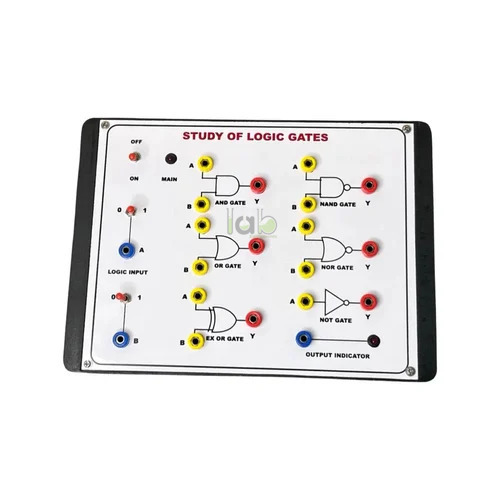

Six-Gate Digital Logic Evaluation Unit

Product Code : SCL-EAE-11179

The Six-Gate Digital Logic Evaluation Unit is an electronics laboratory trainer used to demonstrate, test, and compare six basic digital logic gate operations. It supports practical learning in Boolean logic, digital electronics, truth tables, input-output states, and circuit verification for schools, colleges, polytechnics, ITI/TVET centres, STEM labs, and electronics training programmes.

Product Description

The Six-Gate Digital Logic Evaluation Unit from Lab Equipments Ambala is best positioned under Physics Lab / Electrical and Electronics / Digital Electronics Trainer. A dedicated product page with final product code, IC numbers, input switches, output indicators, power supply requirement, gate count, socket arrangement, protection, and accessories should be confirmed before publishing.

A six-gate logic evaluation unit allows learners to apply binary inputs and observe digital outputs for standard gate functions. It helps students verify logic equations, prepare truth tables, compare combinational logic behaviour, and understand how logic gates form the foundation of digital circuits, computer hardware, embedded systems, and electronics practical work.

Key Features

• Six-gate evaluation: intended for practical study of six common logic-gate functions; final gate list should be confirmed.
• Digital electronics trainer: supports hands-on experiments in Boolean logic, binary inputs, truth tables, and output states.
• Input-output observation: may include toggle switches, push switches, LED indicators, or terminal points; confirm final configuration.
• Student-friendly layout: suitable for classroom demonstrations and individual electronics lab practice.
• IC-based learning: can support TTL or CMOS logic-gate IC demonstrations if supplied; confirm IC family and IC numbers.
• STEM and engineering relevance: useful for digital logic, computer engineering basics, electronics, and instrumentation training.
• Specifications pending: IC list, supply voltage, protection, number of inputs, output indicators, and accessories must be verified.

Technical Specifications

What’s Included in the Kit

• Six-Gate Digital Logic Evaluation Unit main panel
• Logic-gate ICs or built-in gate sections
• Input switches or input terminals
• Output LED indicators or output terminals
• Patch cords, connecting leads, or jumper wires
• Power adapter, built-in supply, or battery holder
• Instruction manual, experiment sheet, truth-table worksheet, or wiring diagram

Applications / Uses

• Studying AND, OR, NOT, NAND, NOR, XOR, or other supplied logic-gate operations
• Preparing and verifying digital logic truth tables
• Demonstrating Boolean expressions and binary input-output relationships
• Teaching basic digital electronics in schools, colleges, and STEM laboratories
• Supporting introductory computer hardware, instrumentation, and embedded-system courses
• Training students in safe low-voltage electronics connection, observation, and troubleshooting

How to Use the Six-Gate Digital Logic Evaluation Unit

1. Place the unit on a dry, stable laboratory bench.
2. Confirm the required DC supply voltage, polarity, IC family, and gate configuration before switching on.
3. Connect the supplied power source or approved laboratory DC supply according to the wiring diagram.
4. Select the logic gate to be tested and connect the required inputs using switches, jumpers, or terminals.
5. Apply binary input combinations such as 0-0, 0-1, 1-0, and 1-1 for two-input gates.
6. Observe the output indicator or output terminal state for each input condition.
7. Record the result in a truth table and compare it with the expected Boolean logic function.
8. Switch off the unit before changing ICs, reconfiguring connections, or storing the apparatus.

Safety note: Use the Six-Gate Digital Logic Evaluation Unit only with the confirmed low-voltage DC supply. Do not connect the unit directly to mains supply. Switch off power before changing connections or ICs, avoid short circuits, observe polarity, and use the apparatus under instructor or laboratory technician supervision.

Care & Maintenance

• Keep switches, IC sockets, terminals, indicators, and panel markings clean and dry.
• Inspect jumper leads, sockets, power input, and IC orientation before each experiment.
• Do not force ICs into sockets or apply supply voltage outside the confirmed rating.
• Store the unit in a dry, dust-controlled cabinet after use.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. The brand’s verified product range includes Electrical and Electronics equipment, Physics Lab apparatus, electrical trainers, electronics lab trainers, engineering educational equipment, electronic lab equipment, lab meters, and STEM educational lab equipment. Its equipment range supports hands-on learning in electronics, current electricity, measurement, circuit studies, and engineering practicals. Buyers should request final specifications before procurement to confirm product code, gate list, IC family, input/output design, supply voltage, accessories, packing, and documentation.

Frequently Asked Questions

What is a Six-Gate Digital Logic Evaluation Unit used for?

A Six-Gate Digital Logic Evaluation Unit is used to demonstrate and verify logic-gate operations, Boolean expressions, binary input-output states, and truth tables in digital electronics laboratories.

Which six logic gates are included?

The product name states six gates, but the exact supplied gate list should be confirmed. Common possibilities include AND, OR, NOT, NAND, NOR, XOR, or XNOR depending on the final configuration.

Is this suitable for school and college electronics labs?

Yes. It is suitable for introductory digital electronics experiments in school electronics labs, engineering colleges, polytechnics, ITI/TVET centres, and STEM classrooms when used with the confirmed low-voltage supply.

Does the unit include TTL or CMOS ICs?

The IC family is not verified. Confirm whether the supplied unit uses TTL logic ICs, CMOS logic ICs, replaceable ICs, or built-in fixed gate circuits before publishing or ordering.

What experiments can students perform?

Students can verify logic-gate truth tables, compare input-output states, test Boolean expressions, study universal gates, and build simple combinational logic demonstrations if the unit supports patching.

Can students connect this unit directly to mains power?

No. The unit should be used only with the confirmed low-voltage DC supply or approved adapter. Direct mains connection can damage the trainer and create an electrical hazard.
