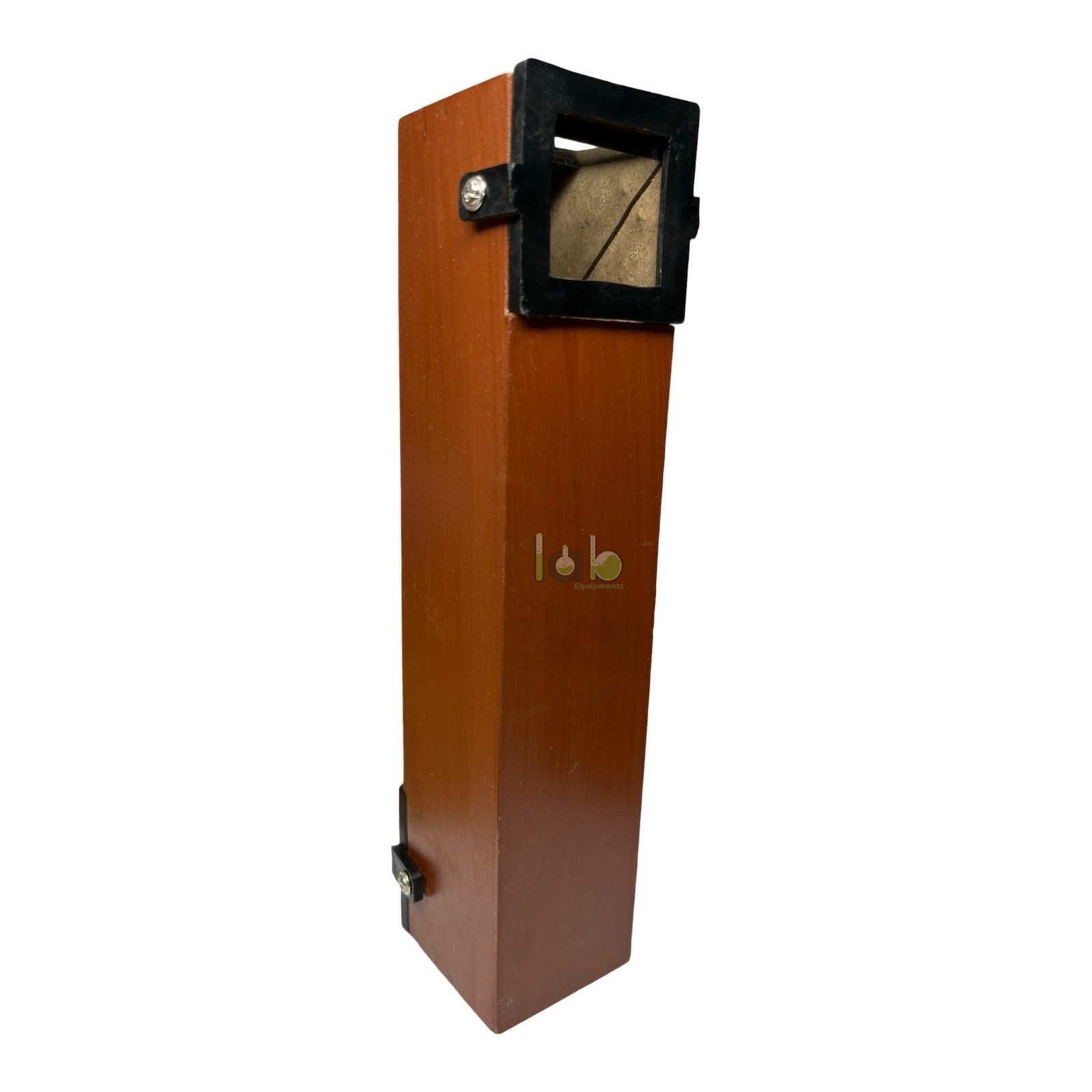

Wooden Reflection Viewing Device

Product Code : SCL-LAO-11281

The Wooden Reflection Viewing Device is an educational optics model used for observing an object or scene through reflected light rather than a direct line of sight. It is intended for students, physics teachers and STEM laboratories that need a practical demonstration of mirror alignment, reflected-ray direction and indirect viewing.

Product Description

The Wooden Reflection Viewing Device guides light from an external object toward a viewing aperture through an internal reflective arrangement. The device helps learners understand that mirrors can redirect light while preserving sufficient visual information for an observer to recognise the object or scene.

The outer structure is identified as wooden by the product name. The wood grade, mirror material, number of mirrors, internal angles, viewing distance and enclosure dimensions require confirmation from the current manufacturing specification. These details determine whether the model demonstrates a simple reflected view, multiple reflection or a periscope-style optical path.

Key Features

• Indirect viewing demonstration: Shows how an object can be seen when reflected light is redirected toward the observer.
• Hands-on reflection learning: Connects classroom ray diagrams with an observable optical result.
• Wooden enclosure: Provides a rigid external structure; the wood type and finish require confirmation.
• Mirror-alignment concept: Demonstrates how reflective surfaces must be positioned to create a usable viewing path.
• No electrical supply required: Operates with ambient light or a suitable external classroom light source.
• Reusable teaching model: Suitable for repeated demonstrations and supervised student observations.
• Cross-curricular application: Supports physics, geometry, engineering-design and STEM problem-solving activities.

Technical Specifications

What's Included in the Kit

• One Wooden Reflection Viewing Device
• Internal mirror or reflective-surface arrangement
• Integrated viewing aperture
• Object-side opening or light-entry aperture
• Protective mirror retainers or internal supports
• Instruction sheet or activity guide

Applications and Uses

• Demonstrating how mirrors redirect light into an observer’s line of sight.
• Introducing the law of reflection through an enclosed viewing arrangement.
• Tracing the approximate path of light between an object, mirrors and observer.
• Studying the effect of mirror orientation on image visibility.
• Explaining indirect viewing systems and basic periscope principles where applicable.
• Supporting school practicals, STEM challenges and science exhibitions.

Related apparatus includes the Light and Optics equipment range, the broader Physics Laboratory Equipment category, the practical Ray Optics Kit and the Persistence of Vision Model.

How to Use the Wooden Reflection Viewing Device

1. Place the device on a stable, level surface in a well-lit area.
2. Direct the object-side opening toward a clearly visible object or scene.
3. Look through the viewing aperture without pressing against it.
4. Adjust the device position slowly until the reflected image becomes visible.
5. Move the object or device and observe how alignment affects the view.
6. Trace or discuss the light path from the object to the internal mirrors and observer.

Safety note: Do not point the device toward the Sun, lasers or other intense light sources. Stop using it if a mirror becomes loose, cracked or exposed.

Care & Maintenance

• Clean accessible mirror surfaces with a soft, lint-free cloth.
• Keep the wooden body dry and away from prolonged heat or moisture.
• Do not shake or drop the device, as this may disturb mirror alignment.
• Store it in protective packaging to prevent dust, scratches and impact damage.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures scientific instruments, physics apparatus, educational models and experiment kits in Ambala, India. Its optics range supports schools, colleges, universities, STEM laboratories and institutional procurement projects. The company also supplies educational laboratory equipment to international customers. Buyers should request the current drawing, mirror configuration, material specification and export packing details before ordering.

Frequently Asked Questions

What is a Wooden Reflection Viewing Device used for?

It is used to show how mirrors can redirect light and allow an observer to view an object outside the direct line of sight.

How does the device produce an image?

Light from the object reaches one or more internal reflective surfaces and is redirected toward the viewing aperture.

How many mirrors are fitted inside?

The number and arrangement of mirrors have not been confirmed. Request the current product drawing or technical specification.

Is it the same as a periscope?

It may demonstrate a similar indirect-viewing principle, but it should be described as a periscope only when the internal two-mirror geometry is confirmed.

Does the model require electricity?

No. It uses available external light and does not require a power supply.

Can it be used in school physics laboratories?

Yes. It is suitable for supervised lessons on reflection, mirror alignment, light paths and indirect viewing.

Request the confirmed mirror layout, dimensions and wooden construction details, or explore the Light and Optics laboratory equipment category for related reflection models.
