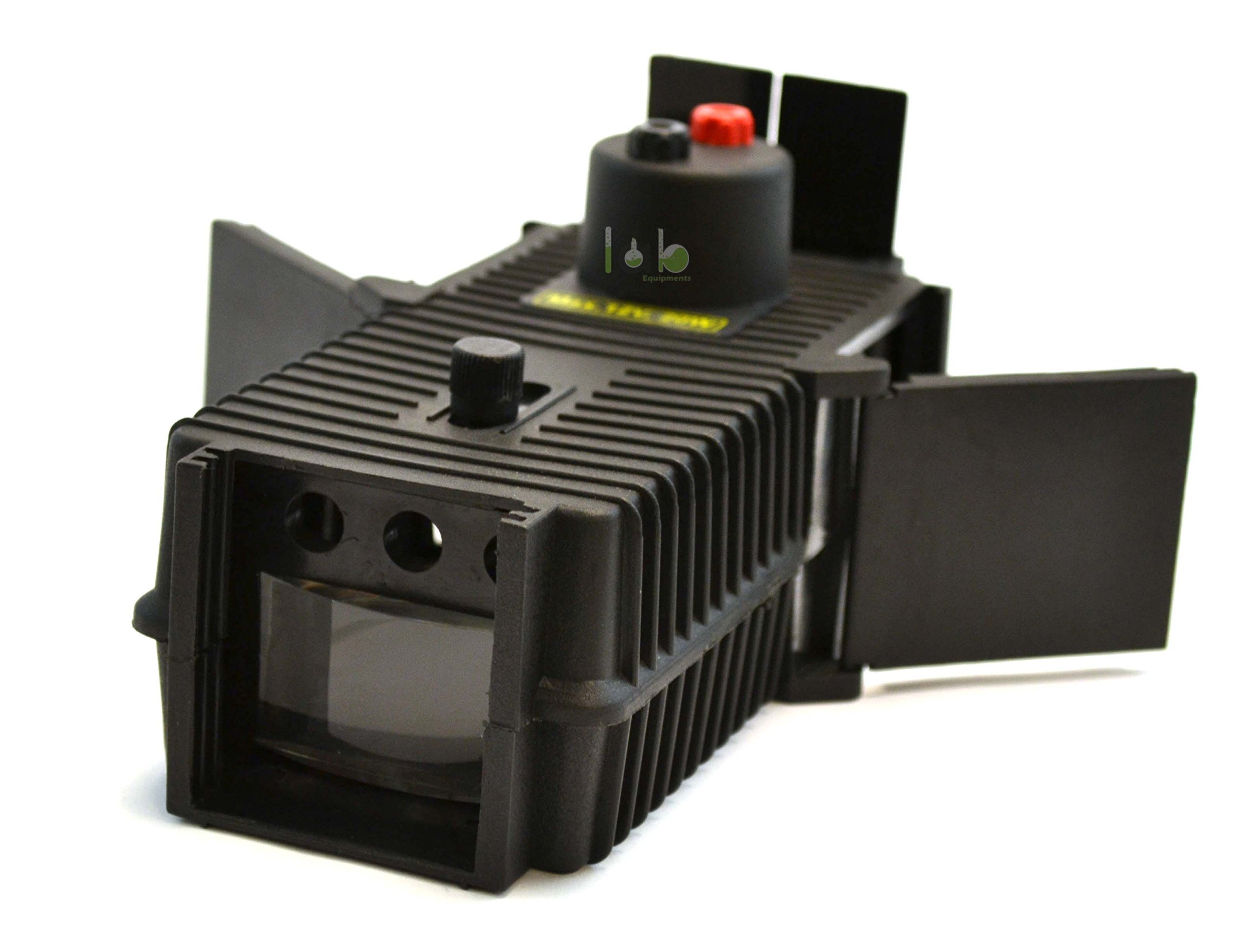

Ray Tracing Demonstration Kit
.jpg)
Product Code : SCL-LAO-11293
The Ray Tracing Demonstration Kit is an educational physics set used for observing and tracing light paths through mirrors, lenses, prisms and transparent media. It enables students and teachers to demonstrate reflection, refraction, image formation and basic geometrical-optics principles through controlled practical activities.
Product Description
The kit provides a structured arrangement in which a narrow light ray can be directed toward selected optical elements. Learners can mark the incident ray, surface normal, reflected or refracted ray and emergent path while comparing experimental observations with textbook ray diagrams.
The closest published product is the Ray Optics Kit, code SCL-PMP-11136. The exact light source, number of rays, component shapes, optical materials, experiment count and supplied quantities must be confirmed from the current product-specific packing list.
Key Features
- Visible ray demonstration: Helps learners observe the direction of light through a controlled optical arrangement.
- Multiple optics concepts: Supports reflection, refraction, lens action, prism behaviour and image-formation activities.
- Interchangeable components: Allows different optical elements to be positioned in the ray path, subject to the confirmed kit contents.
- Measurement-based learning: Supports angle tracing and comparison with theoretical ray diagrams.
- Reusable classroom kit: Suitable for repeated physics practicals, STEM lessons and teacher demonstrations.
- Hands-on investigation: Encourages prediction, observation, recording and interpretation.
- Compact experiment format: Provides a practical alternative to assembling separate optics components for each lesson.
Technical Specifications
|
Specification |
Detail |
|
Product name |
Ray Tracing Demonstration Kit |
|
Closest published product |
Ray Optics Kit |
|
Published product code |
SCL-PMP-11136; confirm applicability to the supplied kit |
|
Brand |
Lab Equipments Ambala |
|
Experiment capacity |
Multiple ray-optics demonstrations; exact number [confirm] |
|
Subject coverage |
Reflection, refraction, lenses, prisms and image formation |
What's Included in the Kit
- Ray source, ray box or beam-forming unit
- Plane mirror
- Curved mirrors
- Convex and concave lenses
- Prism or transparent refracting elements
- Working surface, holders or activity sheets
- Power accessories and experiment manual
Applications
- Verifying the laws of reflection.
- Tracing refraction through transparent media.
- Observing converging and diverging lens behaviour.
- Studying light deviation through a prism.
- Locating focal points and tracing principal rays.
- Supporting practical physics lessons and science exhibitions.
Related resources include the Ray Optics Kit, the Acrylic Lens and Prism set, the complete Light and Optics range and broader Physics Laboratory Equipment.
How to Use the Ray Tracing Demonstration Kit
- Place the working surface on a stable laboratory table.
- Select and secure the required optical component.
- Position the ray source so the beam remains within the experiment area.
- Direct one or more narrow rays toward the component.
- Mark the incident ray and surface normal where required.
- Trace the reflected, refracted or emergent ray.
- Measure relevant angles or distances and record the results.
- Switch off the source before changing the arrangement.
Safety note: Never look directly into a laser or high-intensity light beam. Keep beams below eye level and operate powered sources only under trained supervision.
Care & Maintenance
- Clean optical surfaces with a soft, lint-free lens cloth.
- Store lenses, mirrors and prisms separately to prevent scratches.
- Disconnect the light source before cleaning or storage.
- Inspect cables, holders and optical elements before each session.
Why Choose Lab Equipments Ambala
Lab Equipments Ambala manufactures and supplies physics apparatus, optical components, educational models and laboratory experiment kits from Ambala, India. Its optics range includes ray-optics kits, mirrors, lenses, prisms, optical benches and light sources. The company supplies schools, colleges, universities and institutional buyers. Request the current packing list and technical specification before procurement.
Frequently Asked Questions
What is a Ray Tracing Demonstration Kit used for?
It is used to observe and trace light paths during reflection, refraction, lens and prism experiments.
Which experiments can be performed?
Typical activities include reflection-angle verification, refraction, lens ray tracing, prism deviation and image formation. Exact activities depend on the supplied components.
Does the kit include a ray box?
The light-source type and inclusion are not confirmed for this exact kit. Request a component-level packing list.
Are lenses, mirrors and prisms included?
These elements are typical of ray-optics kits, but their types, materials and quantities require confirmation.
Can it be used with a laser source?
Only when the supplied system is specifically designed and labelled for laser operation with appropriate classroom safety controls.
Is it suitable for school laboratories?
Yes. It is suitable for supervised secondary and senior-secondary optics lessons when the supplied experiments match the curriculum.
Request the confirmed light source, optical-component list and experiment manual, or explore the Light and Optics laboratory equipment category.
