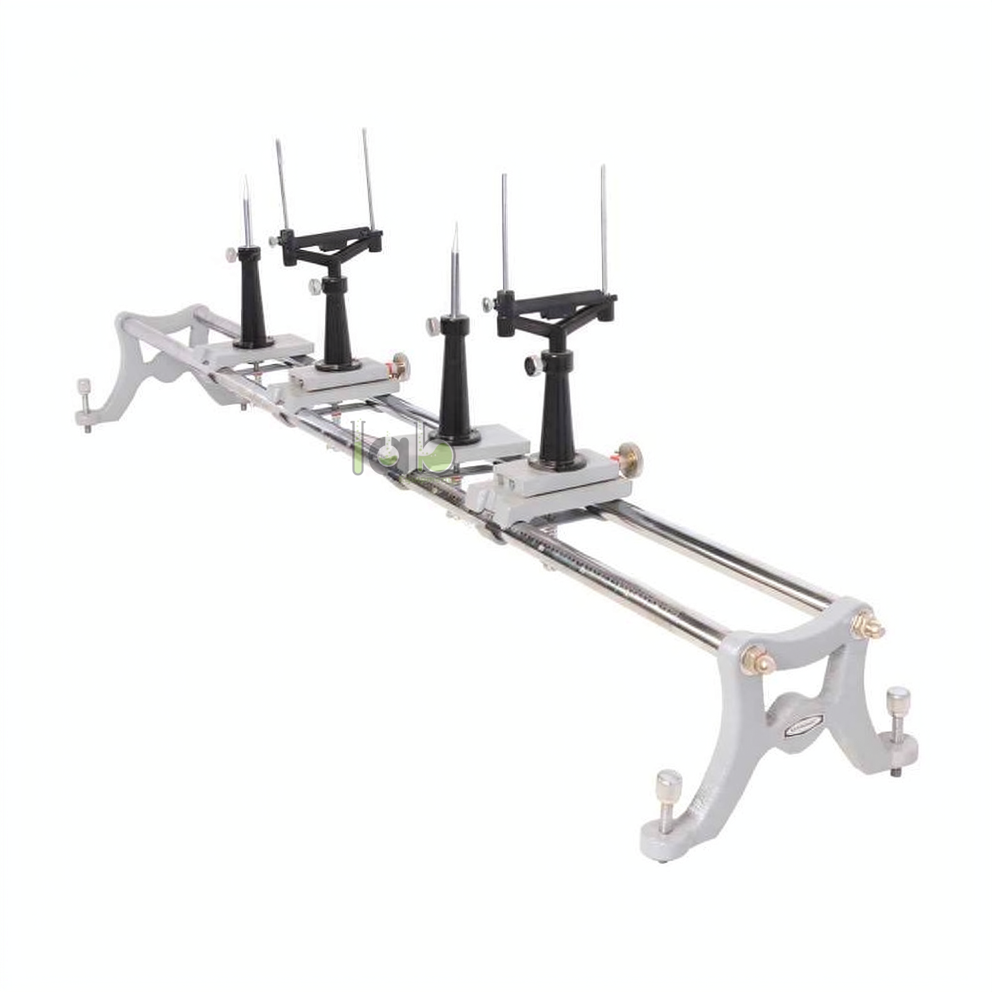

Full-Length Optics Experiment Bench

Product Code : SCL-LAO-11287

The Full-Length Optics Experiment Bench is a physics laboratory system used for aligning light sources, objects, lenses, mirrors and projection screens along a common optical axis. It is designed for students, teachers and laboratory technicians conducting focal-length, lens-formula, mirror-formula and image-formation experiments.

Product Description

The Full-Length Optics Experiment Bench provides an extended linear rail for positioning optical components at measured intervals. Sliding carriers allow the object, lens, mirror or screen to be moved while their centres remain aligned with the principal optical axis.

The extended format is suited to experiments that require greater separation between components. The total rail length, usable carrier travel, scale range, least count, rail material and supplied accessories must be confirmed from the current manufacturing specification.

Key Features

• Extended working range: Provides space for optical arrangements requiring greater object-to-image distances.
• Common-axis alignment: Keeps lenses, mirrors, objects and screens positioned along one controlled light path.
• Movable carriers: Allows components to be repositioned during focusing and distance-measurement activities.
• Graduated measurement: Supports position readings when the supplied rail includes a calibrated or marked scale.
• Stable experiment setup: Helps reduce unwanted component movement after holders are secured.
• Multiple practical applications: Supports lens, mirror, focal-length, magnification and image-formation work.
• Reusable laboratory system: Suitable for repeated school, college and teacher-demonstration sessions.

Technical Specifications

What's Included in the Kit

• One full-length optical rail or bench assembly
• End supports or levelling feet
• Sliding optical carriers
• Lens holder
• Mirror holder
• Object or light-source holder
• Projection screen and holder
• Lenses, mirrors and illumination unit

Applications and Uses

• Determining the focal length of a convex lens.
• Studying object distance, image distance and magnification.
• Verifying the thin-lens relationship.
• Observing real, inverted, enlarged and diminished images.
• Determining the focal length of a concave mirror with compatible accessories.
• Comparing optical components with different focal properties.

Compatible resources include the Light and Optics equipment range, broader Physics Laboratory Equipment, the Ray Optics Kit and the Acrylic Lens and Prism set.

How to Use the Full-Length Optics Experiment Bench

1. Place the bench on a stable, level laboratory table.
2. Check that the rail is straight and securely supported.
3. Fit the object, optical element and screen into compatible holders.
4. Align the centre of each component along the same optical axis.
5. Illuminate the object using a suitable classroom light source.
6. Move the lens, mirror or screen until a sharp image appears.
7. Lock the carriers and record their scale positions.
8. Calculate the required distances, focal length or magnification.

Safety note: Secure all carriers before recording measurements. Handle glass components by their edges and never direct lasers or intense light toward the eyes.

Care & Maintenance

• Keep the rail clean and dry so carriers move smoothly.
• Do not force carriers or overtighten locking screws.
• Clean lenses and mirrors with a soft optical-grade cloth.
• Store the bench horizontally with adequate support to prevent bending.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and supplies scientific instruments, physics apparatus, educational models and experiment kits from Ambala, India. Its optics range includes optical benches, lenses, mirrors, prisms, light sources and component holders. The company supplies schools, colleges, universities and international institutional buyers. Purchasers should request the current dimensional drawing, scale specification, carrier list and inspection requirements before ordering.

Frequently Asked Questions

What is a Full-Length Optics Experiment Bench used for?

It is used to align optical components and measure their positions during focal-length, lens, mirror and image-formation experiments.

How long is the optical bench?

The total rail length and usable working length are not confirmed for this exact product. Both measurements should appear in the final datasheet.

Does the bench have a graduated scale?

A measuring scale is expected for position-based experiments, but its range, units and least count must be confirmed.

Are lenses and mirrors included?

The supplied optical components are not confirmed. Request an itemised packing list covering every lens, mirror, holder and screen.

Can the carriers be locked in position?

An optical bench normally requires secure carrier locking, but the exact clamp or screw mechanism must be verified.

Is it suitable for senior-secondary physics laboratories?

Yes. It is suitable for supervised optics practicals when its working length, scale and accessories match the prescribed experiments.

Request the confirmed rail length, scale resolution, carrier quantity and accessory list, or explore the Light and Optics laboratory equipment category for compatible components.
