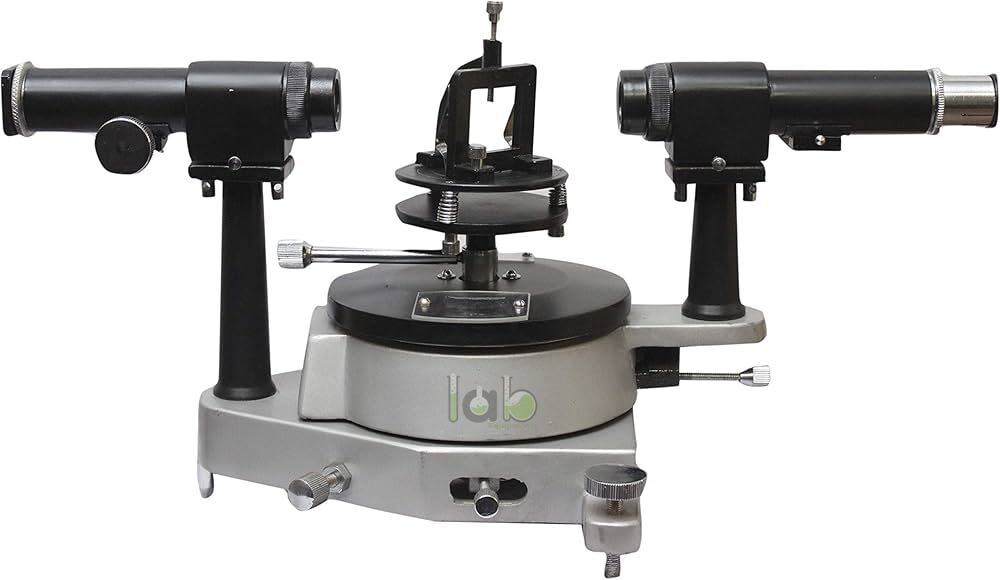

Optical Spectrum Analysis Instrument

Product Code : SCL-LAO-11279

The Optical Spectrum Analysis Instrument is an educational optics instrument used for separating and observing the spectral components of a light source. It is intended for senior-secondary students, college learners, physics teachers, STEM laboratories and training institutions studying light dispersion, wavelength distribution, continuous spectra and emission lines.

Product Description

The Optical Spectrum Analysis Instrument allows learners to examine how light is distributed across visible wavelengths. Light enters through a slit or input aperture and is separated by a prism, diffraction grating or another dispersive optical element. The resulting spectrum can then be observed or measured, depending on the confirmed instrument design.

Lab Equipments Ambala publishes an educational Spectroscope with a slit arrangement, viewing tube and spectral dispersion system for manual classroom observation. The exact product supplied under this title must be confirmed as either a visual spectroscope or a detector-based spectrum analyzer. Electronic performance claims must not be added without a model-specific datasheet.

Key Features

• Spectrum observation: Separates incoming light into visible spectral colours or lines.
• Light-source comparison: Helps learners compare continuous and line spectra from suitable sources.
• Hands-on optics learning: Connects wavelength concepts with direct laboratory observation.
• Adjustable viewing arrangement: A slit or viewing tube may be aligned for a clearer spectrum, subject to the confirmed design.
• Reusable teaching instrument: Suitable for repeated demonstrations and supervised practical sessions.
• Cross-disciplinary application: Supports physics, spectroscopy, astronomy and introductory analytical-science lessons.
• Manual operation: The verified Spectroscope version is intended for direct visual observation.

Technical Specifications

What's Included in the Kit

• Optical spectrum observation instrument
• Entrance slit or adjustable aperture
• Viewing tube or eyepiece
• Prism or diffraction grating assembly
• Scale, detector or display
• Support stand or base
• Instruction manual and storage packaging

Applications and Uses

• Observing the visible spectrum produced by white light.
• Comparing continuous and line spectra.
• Examining suitable discharge lamps or other controlled light sources.
• Demonstrating wavelength separation and optical dispersion.
• Introducing spectral analysis in physics and astronomy lessons.
• Supporting science exhibitions and teacher demonstrations.

Related equipment includes the educational Spectroscope, the glass prism range, the complete Light and Optics equipment category and broader Physics Laboratory Equipment.

How to Use the Optical Spectrum Analysis Instrument

1. Place the instrument securely on a stable laboratory surface.
2. Direct its entrance slit toward a suitable controlled light source.
3. Narrow or adjust the slit according to the supplied instructions.
4. Align the viewing tube, prism or grating assembly.
5. Observe the spectrum through the eyepiece or on the confirmed display.
6. Identify visible colours, bands or spectral lines.
7. Record wavelength values only when the instrument has a verified calibrated scale.

Safety note: Never observe the Sun, lasers or unsafe high-intensity sources directly through the instrument. Use spectral lamps and powered sources only under trained laboratory supervision.

Care & Maintenance

• Keep the slit, eyepiece and dispersive optical element free from dust.
• Clean optical surfaces only with a suitable optical-grade cloth.
• Do not touch a prism or grating surface with bare fingers.
• Store the instrument dry, covered and protected from impact.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and supplies educational physics apparatus, spectroscopy instruments, optical components and laboratory teaching kits from Ambala, India. Its verified catalogue includes spectroscopes, prisms, spectrometers and related light-and-optics equipment. The company serves schools, colleges, universities and international institutional buyers. Purchasers should obtain a current model-specific datasheet and calibration information before ordering a measurement-grade instrument.

Frequently Asked Questions

What is an Optical Spectrum Analysis Instrument used for?

It is used to separate light into component wavelengths so learners can observe spectral colours, bands or emission lines.

Is this an electronic optical spectrum analyzer?

That has not been confirmed. The closest verified product is a manually viewed educational spectroscope rather than a detector-based analyzer.

What wavelength range does it cover?

No calibrated wavelength range is published for this exact product. Request a model-specific datasheet before specifying measurement coverage.

Can it measure spectral-line wavelengths?

Only a calibrated instrument with a confirmed scale, detector or measurement method should be used for quantitative wavelength readings.

What light sources can be observed?

Suitable classroom sources may include white lamps and supervised spectral lamps. Unsafe bright sources and direct sunlight must not be observed.

Is it suitable for school laboratories?

Yes, as an educational spectrum-observation instrument when its operating method and light sources are appropriate for the learners.

Request confirmation of the wavelength range, resolution and detection method, or explore the educational Spectroscope for direct visual spectrum demonstrations.
