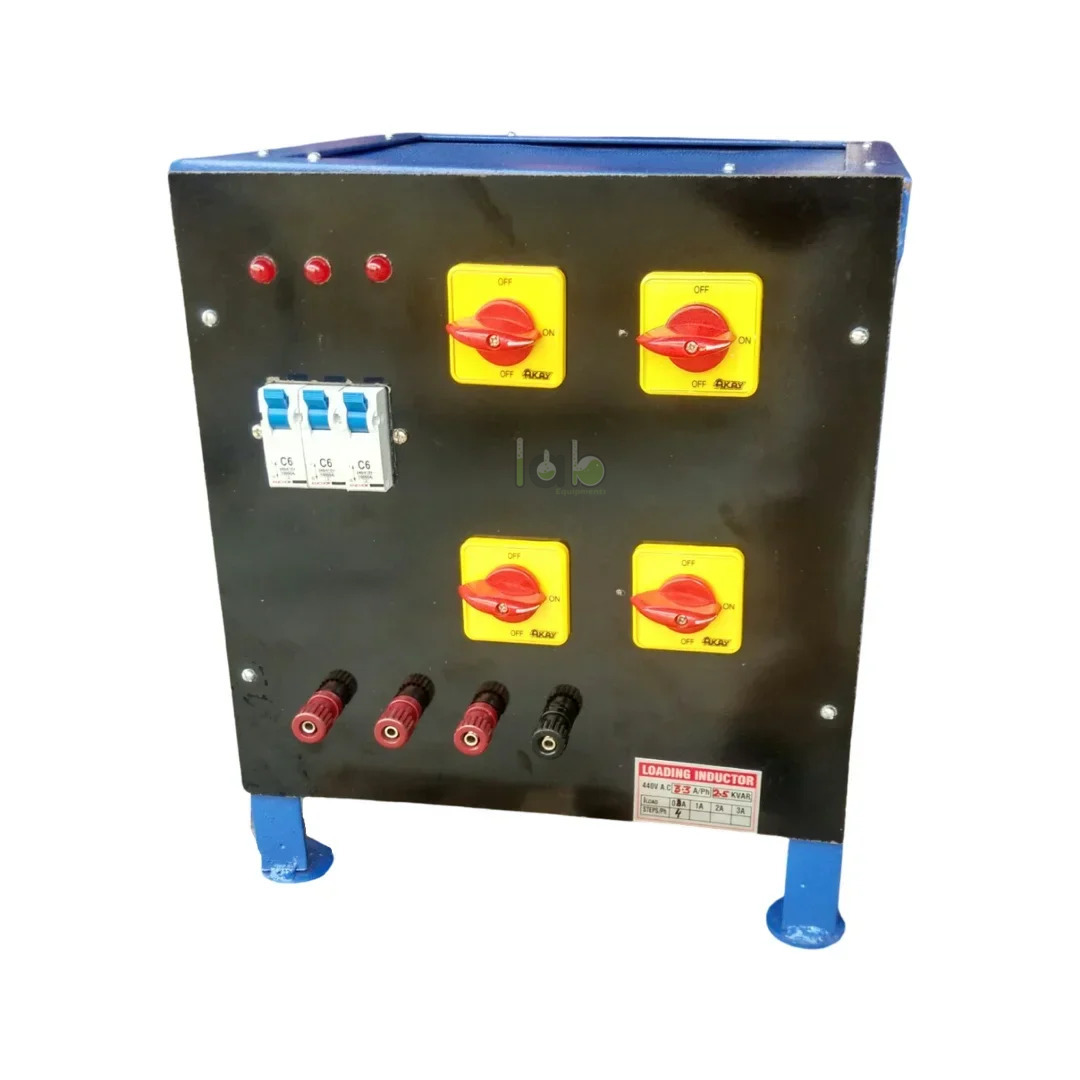

Inductive Load Laboratory Equipment 2.5 kVAR

Product Code : SCL-EAE-11171

The Inductive Load Laboratory Equipment 2.5 kVAR is an electrical laboratory apparatus used to apply controlled inductive reactive loading for AC circuit study, lagging power factor demonstration, alternator loading, transformer experiments, and electrical machine training. It is suitable for engineering colleges, polytechnics, ITI/TVET centres, electrical training labs, distributors, and institutional procurement buyers.

Product Description

The Inductive Load Laboratory Equipment 2.5 kVAR from Lab Equipments Ambala is best positioned under Physics Lab / Electrical and Electronics / Electrical Machine Training Apparatus. A dedicated product page with final product code, voltage rating, phase type, current rating, inductance steps, control switches, enclosure, protection, and duty cycle should be confirmed before publishing.

An inductive load applies reactive AC loading through coils, reactors, or inductor sections. In laboratory use, a 2.5 kVAR inductive load helps students observe current lag, reactive power, apparent power, voltage-current phase relationship, and lagging power factor behaviour when connected with approved AC sources and suitable measuring instruments.

Key Features

• 2.5 kVAR inductive rating: product name indicates 2.5 kVAR reactive-load capacity; final duty rating should be confirmed.
• Inductive load operation: supports AC experiments where current lags voltage due to inductance.
• Power factor training: useful for demonstrating lagging power factor, phase angle, and reactive power behaviour.
• Electrical machine use: suitable for alternator, transformer, and AC source experiments when correctly rated.
• Step or tap-based loading: may include switched inductive sections; confirm final configuration before publishing.
• Measurement-compatible setup: can be used with voltmeters, ammeters, wattmeters, power factor meters, and power analyzers.
• Specifications pending: voltage, phase, current, inductance steps, protection, cooling, and enclosure details must be verified.

Technical Specifications

What's Included in the Kit

• Inductive Load Laboratory Equipment 2.5 kVAR main unit
• Inductive coil, reactor, or inductor load sections
• Step selector, tap terminals, rotary switch, MCBs, or control panel
• Input/output terminals and earthing point
• Fuse, overload protection, enclosure, ventilation guard, or indicator lamps
• Instruction manual, wiring diagram, test report, calibration certificate, or documentation

Applications / Uses

• Applying 2.5 kVAR inductive load to AC sources, alternators, transformers, and electrical machine trainers
• Studying lagging power factor and current-lag behaviour in AC circuits
• Observing real power, apparent power, reactive power, voltage, and current under inductive load
• Supporting alternator regulation, transformer loading, and electrical-machine performance experiments where the confirmed rating permits
• Demonstrating power-factor correction when used with suitable capacitor-bank equipment
• Training students in safe AC load connection, metering, switching, shutdown, and cooldown procedures

How to Use the Inductive Load Laboratory Equipment 2.5 kVAR

1. Place the inductive load equipment on a dry, stable, ventilated laboratory bench or floor stand.
2. Confirm the voltage rating, phase type, current rating, 2.5 kVAR rating, duty cycle, and earthing requirement before connection.
3. Connect the equipment to the AC source, alternator, transformer, or electrical machine trainer according to the approved wiring diagram.
4. Connect suitable instruments such as voltmeter, ammeter, wattmeter, power factor meter, frequency meter, or power analyzer.
5. Set the inductive load control to the minimum or safest starting position before energising the circuit.
6. Switch on the supply and increase the inductive load gradually using approved switches, taps, or control steps.
7. Record voltage, current, real power, apparent power, reactive power, frequency, power factor, and phase-lag observations.
8. Reduce the load, switch off the supply, and allow the unit to cool before disconnection or storage.

Safety note: Use the Inductive Load Laboratory Equipment 2.5 kVAR only within its confirmed voltage, current, phase, kVAR, and duty ratings. Inductive loads can generate heat, inrush current, stored magnetic energy, and switching transients; use trained supervision, proper earthing, insulated leads, approved meters, protective switching, and safe cooldown time.

Care & Maintenance

• Keep coil sections, terminals, switches, vents, and enclosure surfaces clean and dry.
• Inspect insulation, earthing continuity, terminal tightness, unusual noise, vibration, and overheating marks before operation.
• Do not exceed the confirmed kVAR rating, voltage rating, current rating, phase rating, or duty cycle.
• Store the unit in a dry, dust-controlled area away from moisture, corrosive fumes, and mechanical impact.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. The brand supplies electrical and electronics apparatus, physics laboratory equipment, induction equipment, lab meters, current-control equipment, and electrical practical training resources for educational institutions. Its equipment range supports practical learning in AC circuits, reactive loading, induction, electrical machines, power measurement, and power factor. Buyers should request final specifications before procurement to confirm product code, voltage, phase, current rating, kVAR rating, inductance steps, protection, packing, and documentation.

Frequently Asked Questions

What is Inductive Load Laboratory Equipment 2.5 kVAR used for?

Inductive Load Laboratory Equipment 2.5 kVAR is used to apply inductive reactive load for AC circuit experiments, lagging power factor study, alternator loading, transformer testing, and electrical machine training.

Is the 2.5 kVAR rating confirmed?

The product name states 2.5 kVAR. The final voltage, phase type, current rating, continuous or intermittent duty rating, and inductance steps should be confirmed before publishing.

Is this a resistive load or an inductive load?

This product name indicates an inductive load. An inductive load stores energy in a magnetic field and causes current to lag voltage in an AC circuit.

Can it be used for power factor experiments?

Yes. A suitable inductive load unit can demonstrate lagging power factor and reactive power when connected with approved AC sources, meters, and compatible capacitor-bank equipment.

What instruments are used with this equipment?

Common supporting instruments include voltmeter, ammeter, wattmeter, power factor meter, frequency meter, power analyzer, and the AC source or electrical machine under test.

Can students operate the inductive load independently?

No. Inductive-load experiments should be conducted only under trained instructor or laboratory technician supervision because they involve AC supply, reactive loading, heat, switching transients, and electrical safety controls.
