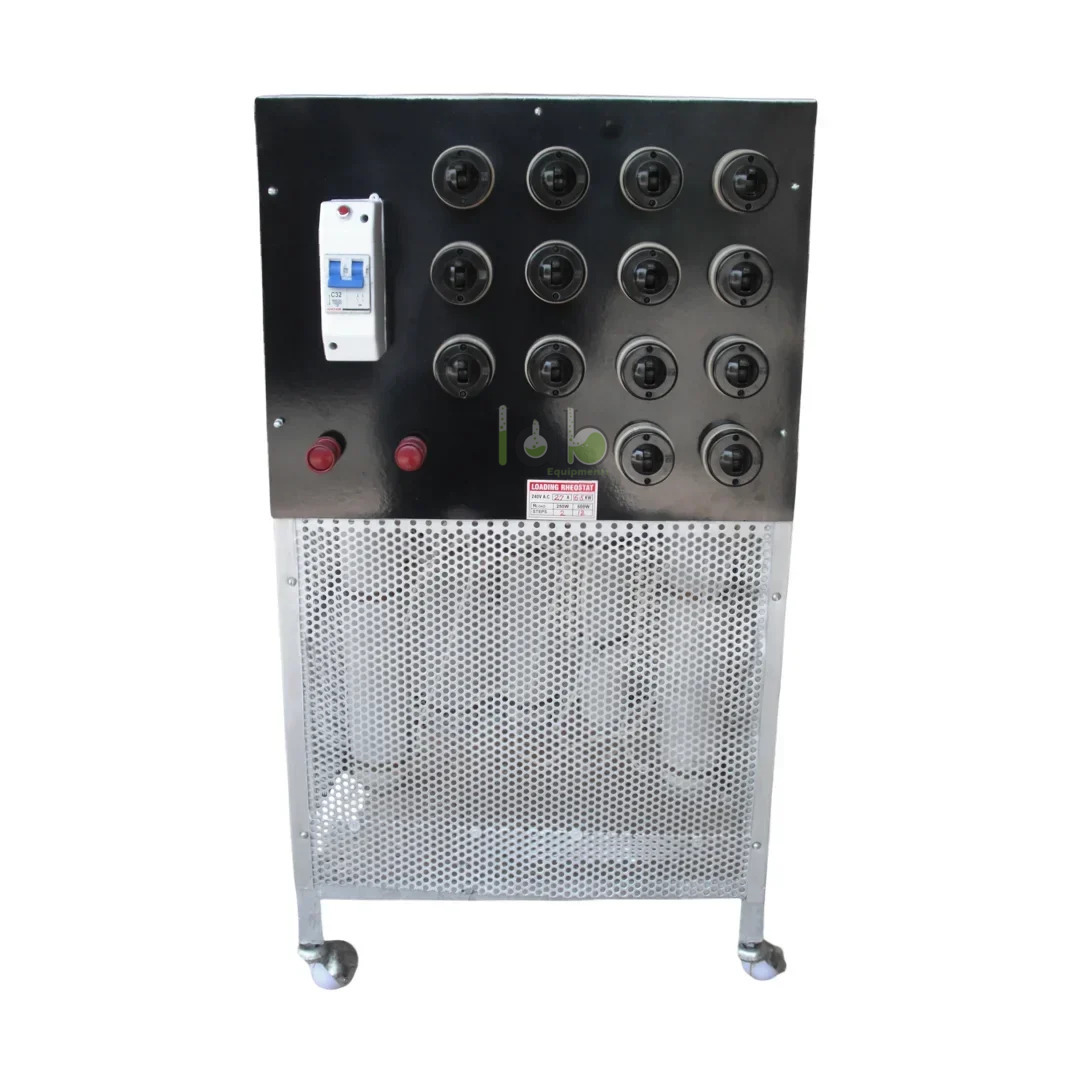

High-Power 6.5 kW Resistance Bank

Product Code : SCL-EAE-11173

The High-Power 6.5 kW Resistance Bank is an electrical laboratory load apparatus used to apply controlled resistive loading for current variation, voltage-drop study, power-source testing, and electrical machine training. It is suitable for engineering colleges, polytechnics, ITI/TVET centres, electrical training laboratories, distributors, and institutional procurement buyers.

Product Description

The High-Power 6.5 kW Resistance Bank from Lab Equipments Ambala is best positioned under Physics Lab / Electrical and Electronics / Resistance and Current Control Apparatus. A dedicated product page with final product code, resistance range, voltage rating, current rating, phase type, switching steps, cooling method, enclosure, protection, and duty cycle should be confirmed before publishing.

A resistance bank provides a controlled resistive load by dissipating electrical energy as heat through resistance elements. In laboratory use, a 6.5 kW resistance bank can support load testing of power supplies, generators, electrical machine trainers, and circuit panels when operated within the confirmed electrical and thermal ratings.

Key Features

• 6.5 kW load rating: product name indicates 6.5 kW resistive loading capacity; final duty rating should be confirmed.
• High-power resistive loading: supports controlled electrical load application for laboratory testing.
• Current-control function: helps vary circuit current and observe voltage-current-power behaviour.
• Electrical machine training: suitable for generator, power-source, and machine-lab loading where the confirmed rating permits.
• Measurement-compatible setup: can be paired with voltmeters, ammeters, wattmeters, multimeters, and power analyzers.
• Resistance apparatus category fit: aligns with rheostats, resistance boxes, lab meters, and current-electricity equipment.
• Specifications pending: resistance range, voltage, phase, current rating, cooling, protection, and enclosure details must be verified.

Technical Specifications

What's Included in the Kit

• High-Power 6.5 kW Resistance Bank main unit
• Resistance elements or resistive load sections
• Step selector, rotary switch, slider, or control panel
• Input/output terminals and earthing point
• Fuse, MCB, overload protection, enclosure, or ventilation guard
• Instruction manual, wiring diagram, test report, calibration certificate, or documentation

Applications / Uses

• Applying controlled resistive load to power supplies, generators, and electrical machine trainers
• Studying voltage, current, resistance, and power behaviour under load
• Testing load response and regulation of laboratory power sources
• Supporting electrical machine experiments where the confirmed rating permits
• Demonstrating heat generation and power dissipation in resistive load circuits
• Training students in safe high-power load connection, metering, switching, and shutdown procedure

How to Use the High-Power 6.5 kW Resistance Bank

1. Place the resistance bank on a dry, stable, ventilated surface with clear space around heat outlets.
2. Confirm the voltage rating, current rating, phase type, 6.5 kW load rating, duty cycle, and earthing requirement before connection.
3. Connect the unit to the power source, generator, trainer, or machine under test according to the approved wiring diagram.
4. Connect suitable instruments such as a voltmeter, ammeter, wattmeter, multimeter, or power analyzer.
5. Set the load control to the minimum or safest starting position before energising the circuit.
6. Switch on the supply and increase the resistive load gradually using approved switches, taps, or control steps.
7. Record voltage, current, power, resistance setting, temperature rise, regulation, or efficiency readings as required.
8. Reduce the load, switch off the supply, and allow the unit to cool before disconnection, handling, or storage.

Safety note: Use the High-Power 6.5 kW Resistance Bank only within its confirmed voltage, current, phase, wattage, and duty-cycle ratings. A 6.5 kW resistive load can generate substantial heat; use trained supervision, proper earthing, insulated leads, protective switching, ventilation, and cooldown time after operation.

Care & Maintenance

• Keep resistance elements, terminals, switches, vents, and enclosure surfaces clean and dry.
• Inspect insulation, earthing continuity, terminal tightness, overheating marks, and control movement before operation.
• Do not exceed the confirmed wattage, voltage, current, phase, resistance-step, or duty-cycle rating.
• Store the resistance bank in a dry, dust-controlled area away from moisture, corrosive fumes, and mechanical impact.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. The brand supplies electrical and electronics apparatus, physics laboratory equipment, rheostats, resistance boxes, lab meters, power supplies, and practical teaching resources for educational institutions. Its verified rheostat range supports current-control demonstrations, while related electrical equipment supports current-electricity and electrical measurement training. Buyers should request final specifications before procurement to confirm product code, resistance range, voltage, current, phase, duty cycle, cooling, protection, packing, and documentation.

Frequently Asked Questions

What is a High-Power 6.5 kW Resistance Bank used for?

A High-Power 6.5 kW Resistance Bank is used to apply controlled resistive load for power-source testing, current variation, voltage-current study, and electrical machine training.

Is the 6.5 kW rating confirmed?

The product name states 6.5 kW. The final voltage rating, current rating, phase type, resistance range, duty cycle, and continuous or intermittent load rating should be confirmed before publishing.

Is this the same as a rheostat?

It may perform a related current-control function, but a resistance bank is normally specified as a load apparatus with defined power and resistance sections. Confirm the exact design before comparing it with a standard rheostat.

What instruments are used with this resistance bank?

Common supporting instruments include voltmeters, ammeters, wattmeters, multimeters, power analyzers, DC or AC power sources, and the electrical machine or trainer under test.

Can students operate a 6.5 kW resistance bank independently?

No. A 6.5 kW resistance bank should be operated only under trained instructor or laboratory technician supervision because it can generate high heat and may involve hazardous electrical currents.

What should be confirmed before ordering?

Confirm product code, resistance range or steps, voltage rating, current rating, phase type, wattage, duty cycle, cooling method, terminal type, protection, dimensions, weight, and documentation.
