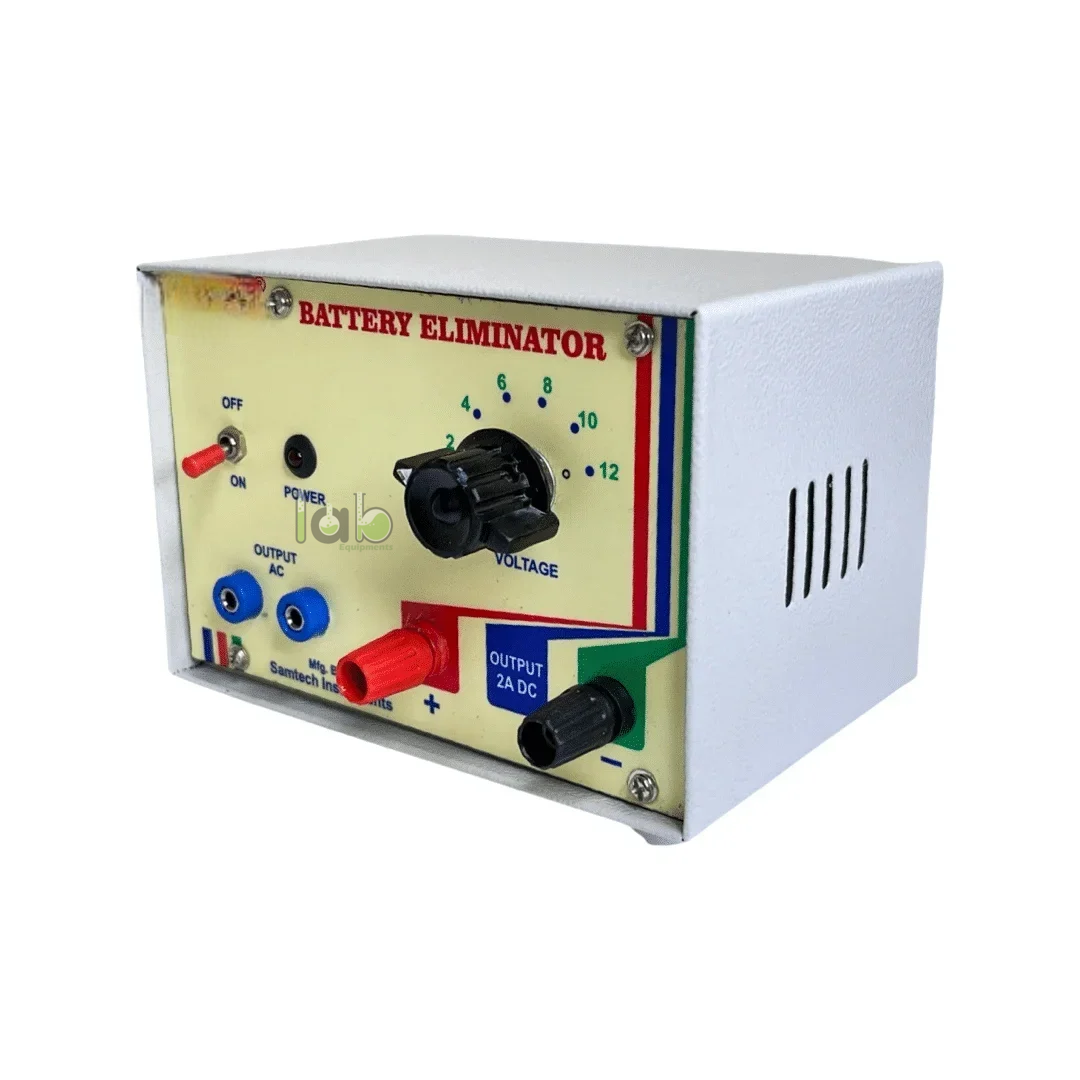

AC to DC Power Conversion Unit

Product Code : SCL-EAE-11330

The AC to DC Power Conversion Unit is a laboratory electrical supply used for converting an alternating-current input into a direct-current output for compatible experiments and test circuits. It is intended for schools, colleges, universities, polytechnics, and technical-training laboratories that need a reusable DC source for supervised practical work.

Product Description

The unit performs AC-to-DC conversion through rectification. Whether the supplied model also includes voltage transformation, smoothing, regulation, current limiting, or selectable outputs must be confirmed from its approved datasheet. These functions determine which components and experiments the unit can safely supply.

The product fits within electrical and electronics laboratory equipment used for circuit teaching and measurement. Its enclosure material, input voltage and frequency, output rating, terminal format, ripple, dimensions, weight, and protection details are not publicly verified. Buyers should compare the final model against the required experiment load.

Key Features

• AC-to-DC conversion: provides direct-current output from a compatible alternating-current input.
• Reusable laboratory source: reduces dependence on disposable cells during repeated practical sessions.
• Low-voltage circuit support: can power suitable educational loads when the verified output ratings match.
• Measurement value: supports AC-input and DC-output observations where the required measurement points are available.
• Flexible teaching use: suits supervised electricity, electronics, and basic rectification activities.
• Bench integration: works with correctly rated meters, rheostats, leads, and circuit apparatus.
• Specification-led safety: encourages users to check voltage, current, polarity, duty cycle, and protection before connection.

Technical Specifications

What's Included in the Kit

• 1 AC to DC Power Conversion Unit
• Mains lead or external AC input adaptor
• DC laboratory connecting leads
• Operating instructions and circuit guidance
• Spare fuse or protection accessory

Applications / Uses

• Powering compatible low-voltage DC circuit experiments.
• Comparing AC input and rectified DC output with suitable laboratory meters .
• Operating correctly biased LEDs, resistors, relays, coils, and semiconductor circuits.
• Supplying compatible electromagnetism and introductory electronics apparatus.
• Using a laboratory rheostat to control current within the verified source rating.
• Replacing batteries in repeated classroom demonstrations when voltage and polarity match.

How to Use the AC to DC Power Conversion Unit

1. Place the unit on a dry, stable, and ventilated bench.
2. Confirm that the available AC input matches the nameplate rating.
3. Keep the unit switched off while assembling the output circuit.
4. Select the lowest required DC output, where a selector is provided.
5. Connect positive and negative terminals using correctly rated insulated leads.
6. Check the load's voltage, polarity, current demand, and starting current.
7. Switch on the unit and verify the output with a suitable DC voltmeter.
8. Switch off and disconnect before changing wiring or output settings.

Safety note: Do not short the output, exceed the confirmed rating, obstruct ventilation, use damaged leads, open the enclosure, or use the unit as a battery charger unless charging is explicitly approved.

Care & Maintenance

• Disconnect the unit before cleaning, inspection, or storage.
• Keep the enclosure, terminals, controls, and ventilation openings clean and dry.
• Inspect the cable, plug, fuse, leads, and insulation before each session.
• Store the unit in a dry cabinet after it has cooled.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala was founded in 1982 and manufactures, supplies, and exports scientific and educational laboratory equipment. Its range includes physics laboratory apparatus , electrical and electronics equipment, laboratory meters, science kits, mathematics kits, and teaching models. The company reports serving institutions in more than 60 countries. It also states that products undergo in-house checks and that export packaging is available for international supply.

Frequently Asked Questions

What is an AC to DC power conversion unit used for?

It converts a compatible AC input into DC output for powering and testing suitable low-voltage laboratory circuits.

Does the unit provide regulated DC?

Regulation is not verified. Confirm voltage tolerance, load regulation, and ripple before using sensitive electronic components.

What output voltage and current are available?

The output voltage and maximum continuous current are [confirm]. Both values must match the intended experimental load.

Can it demonstrate rectification?

It can support AC-to-DC observations when the model provides suitable input and output measurement points. Confirm the terminal arrangement.

Can it replace a battery?

Yes, only when the DC voltage, polarity, current capacity, and load characteristics match the original battery requirement.

Is it suitable for school laboratories?

Yes, for supervised low-voltage practical work after the electrical ratings, protection system, terminals, and operating instructions are verified.

Explore related Electrical and Electronics Equipment and request the approved electrical datasheet and packing list before ordering.
