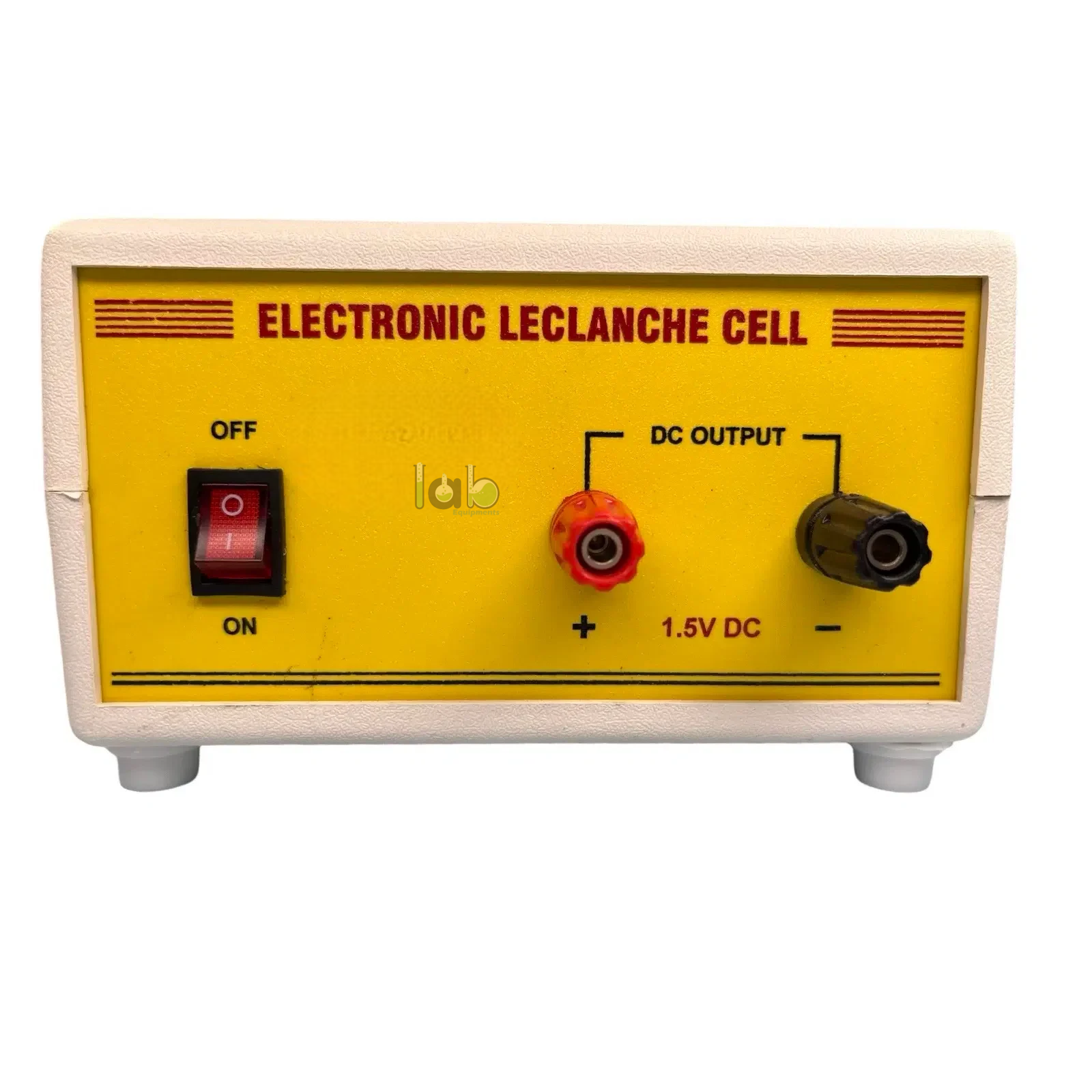

Electronic Primary Cell Simulator
 (1).png)
Product Code : SCL-EAE-11318
The Electronic Primary Cell Simulator is a laboratory teaching instrument used to reproduce the electrical behaviour of a primary cell without repeatedly preparing a chemical cell. It can support experiments involving electromotive force, terminal voltage, internal resistance, load current and basic DC circuit response.
Product Description
An electronic cell simulator is intended to provide a controlled low-voltage output that behaves like the terminals of a primary electrochemical cell. Depending on its confirmed design, the apparatus may allow the open-circuit EMF and effective internal resistance to be adjusted so students can observe how terminal voltage changes when a load is connected.
The device can complement experiments performed with physical cells such as simple voltaic cells and Daniell cells. Unlike a chemical cell, an electronic simulator can provide repeatable settings without electrolyte preparation or electrode replacement. The exact output range, adjustment controls, current limit, display system and simulated cell modes must be confirmed before procurement.
Key Features
- Repeatable cell simulation: Provides consistent electrical conditions for repeated classroom experiments.
- Low-voltage DC output: Intended to represent the terminal output of a primary cell; exact range [confirm].
- Internal-resistance study: May allow students to investigate voltage drop under load where adjustable resistance is provided.
- Open- and closed-circuit comparison: Supports comparison of unloaded EMF with loaded terminal voltage.
- Electronic operation: Avoids routine handling of electrolytes during basic circuit demonstrations.
- Laboratory terminals: Designed for connection to voltmeters, ammeters, resistance loads and circuit boards; interface [confirm].
- Educational format: Suitable for teacher demonstrations and supervised student practicals.
Technical Specifications
|
Specification |
Detail |
|
Product name |
Electronic Primary Cell Simulator |
|
Brand |
Lab Equipments Ambala |
|
Product type |
Educational electronic DC cell simulator |
|
Voltage adjustment |
Fixed steps or continuous adjustment |
|
Simulated cell types |
Generic primary cell or selectable chemistry profiles |
|
Output indication |
Analogue meter, digital display or external-meter measurement |
|
Output terminals |
Laboratory sockets or binding posts |
What's Included
- Electronic primary-cell simulator unit
- Low-voltage power adapter or battery holder
- External load resistors
- Voltmeter or ammeter
- Experiment manual and circuit diagrams
Applications
- Demonstrating EMF and terminal potential difference.
- Investigating voltage drop caused by internal resistance.
- Plotting terminal voltage against load current.
- Comparing ideal and non-ideal voltage sources.
- Supporting Ohm’s law and simple DC circuit experiments.
- Complementing practical work with physical voltaic cells.
Related products include the Simple Cell Student Kit, Daniell Cell, Electrolysis Cells and the Electrolysis Equipment category.
How to Use the Electronic Primary Cell Simulator
- Place the simulator on a dry, stable laboratory bench.
- Set the output voltage and internal resistance to the required confirmed values.
- Connect a voltmeter across the output terminals with no external load.
- Record the open-circuit output as the simulated cell EMF.
- Connect a suitable load and ammeter according to the experiment circuit.
- Record the load current and terminal voltage.
- Repeat at other permitted load or internal-resistance settings.
- Switch off or disconnect the unit after completing the measurements.
Safety note: Use only within the confirmed voltage and current ratings. Do not short-circuit the output, reverse-connect an external supply or open the enclosure while the simulator is energized.
Care & Maintenance
- Keep the enclosure, controls and terminals clean and dry.
- Disconnect the power source before cleaning or storage.
- Inspect leads and sockets periodically for damaged insulation.
- Store the simulator away from corrosive chemicals and excessive heat.
Why Choose Lab Equipments Ambala
Lab Equipments Ambala manufactures and supplies educational equipment for electricity, electronics and electrochemistry experiments. Its published electrochemistry range includes simple-cell kits, Daniell cells and electrolysis apparatus for school and college laboratories. The company serves institutional teaching and procurement requirements from Ambala, India. Buyers should request the simulator’s circuit specification, output ratings and protection features before ordering.
Frequently Asked Questions
What is an Electronic Primary Cell Simulator used for?
It is used to reproduce primary-cell electrical behaviour for experiments involving EMF, terminal voltage, current and internal resistance.
Does the simulator contain chemicals?
An electronic simulator normally reproduces cell behaviour without an electrolyte, but the construction of this exact product requires confirmation.
Can its internal resistance be adjusted?
Adjustable internal resistance is useful for this apparatus, but the available range and control method have not been published.
Which primary cells can it simulate?
No selectable chemistry profiles are confirmed. It should be described as a generic primary-cell simulator until specific modes are published.
Can it replace a Daniell cell experiment?
It can demonstrate electrical source behaviour, but it does not replace observation of the electrodes, electrolyte and chemical reactions in a physical Daniell cell.
Does the simulator require an external power source?
The power method is not published and may use an adapter, internal battery or another low-voltage supply.
Request the confirmed output range, internal-resistance control, current limit and power specification, or explore the Electrolysis Equipment category for physical primary-cell apparatus.
