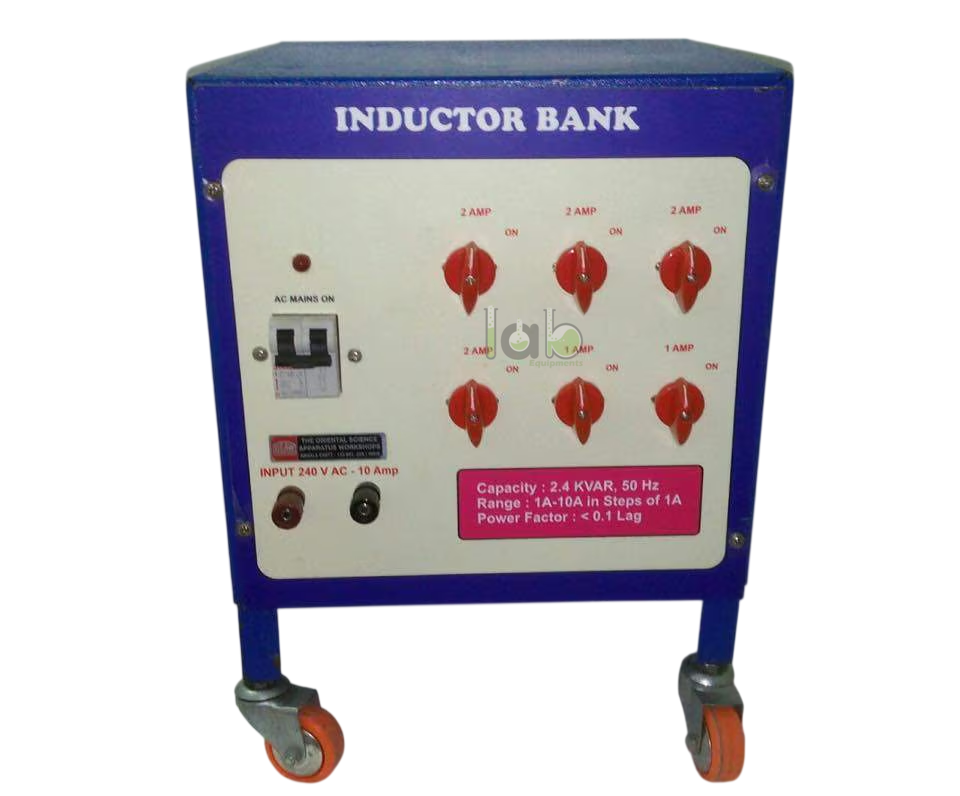

Industrial 2.4 kVAR Inductor Bank

Product Code : SCL-EAE-11168

The Industrial 2.4 kVAR Inductor Bank is an electrical laboratory load apparatus used to apply controlled inductive reactive loading for AC circuit study, lagging power factor demonstration, alternator loading, transformer experiments, and electrical machine training. It is suitable for engineering colleges, polytechnics, ITI/TVET centres, industrial training labs, distributors, and institutional procurement buyers.

Product Description

The Industrial 2.4 kVAR Inductor Bank from Lab Equipments Ambala is best positioned under Physics Lab / Electrical and Electronics / Electrical Machine Training Apparatus. A dedicated product page with final product code, voltage rating, phase type, current rating, inductance steps, switching arrangement, enclosure, protection, and duty cycle should be confirmed before publishing.

An inductor bank provides reactive AC loading by using inductive coils or reactor sections. In laboratory use, a 2.4 kVAR inductor bank helps students observe current lag, reactive power, phase angle, voltage-current relationship, and power-factor behaviour when connected with approved AC sources and suitable measuring instruments.

Key Features

• 2.4 kVAR inductive rating: product name indicates 2.4 kVAR reactive-load capacity; final continuous or intermittent duty rating should be confirmed.
• Inductive load operation: supports AC experiments where current lags voltage due to coil inductance.
• Power factor training: useful for demonstrating lagging power factor and reactive power behaviour.
• Electrical machine use: suitable for alternator, transformer, and AC source loading when correctly rated.
• Step or tap-based loading: may support load variation through switches or taps; confirm final design.
• Measurement-compatible setup: can be used with voltmeters, ammeters, wattmeters, power factor meters, and power analyzers.
• Specifications pending: voltage, phase, current, inductance range, control type, protection, and cooling must be verified.

Technical Specifications

What's Included in the Kit

• Industrial 2.4 kVAR Inductor Bank main unit
• Inductive coil or reactor load sections
• Step selector, tap terminals, rotary switch, or control panel
• Input/output terminals and earthing point
• Fuse, MCB, overload protection, enclosure, or ventilation arrangement
• Instruction manual, wiring diagram, test report, calibration certificate, or documentation

Applications / Uses

• Applying 2.4 kVAR inductive load to alternators, transformers, and AC power-source trainers
• Studying lagging power factor in AC electrical circuits
• Demonstrating current lag and phase-angle behaviour
• Observing real power, apparent power, reactive power, voltage, and current under load
• Supporting power-factor correction demonstrations when used with suitable capacitor-bank equipment
• Training students in safe AC load connection, metering, switching, and shutdown procedure

How to Use the Industrial 2.4 kVAR Inductor Bank

1. Place the inductor bank on a dry, stable, ventilated laboratory bench or floor stand.
2. Confirm the voltage rating, phase type, current rating, 2.4 kVAR load rating, duty cycle, and earthing requirement before connection.
3. Connect the unit to the AC source, alternator, transformer, or trainer according to the approved wiring diagram.
4. Connect suitable instruments such as voltmeter, ammeter, wattmeter, power factor meter, or power analyzer.
5. Set the load control to the minimum or safest starting position before energising the circuit.
6. Switch on the supply and increase the inductive load gradually using the approved switches, taps, or control steps.
7. Record voltage, current, real power, apparent power, reactive power, power factor, and phase-lag observations.
8. Reduce the load, switch off the supply, and allow the unit to cool before disconnection or storage.

Safety note: Use the Industrial 2.4 kVAR Inductor Bank only within its confirmed voltage, current, phase, kVAR, and duty ratings. Inductor banks can generate heat, inrush current, switching transients, and stored magnetic energy; use trained supervision, proper earthing, insulated leads, approved meters, protective switching, and safe cooldown time.

Care & Maintenance

• Keep coil sections, terminals, switches, vents, and enclosure surfaces clean and dry.
• Inspect insulation, earthing continuity, terminal tightness, and overheating marks before operation.
• Do not exceed the confirmed kVAR rating, current rating, voltage rating, or duty cycle.
• Store the unit in a dry, dust-controlled area away from moisture, corrosive fumes, and mechanical impact.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. The brand supplies electrical and electronics apparatus, physics laboratory equipment, induction apparatus, lab meters, current-control equipment, and electrical practical training resources for educational institutions. Its equipment range supports hands-on learning in AC circuits, reactive loading, power factor, induction, electrical machines, and power measurement. Buyers should request final specifications before procurement to confirm product code, voltage, phase, current rating, inductance steps, protection, packing, and documentation.

Frequently Asked Questions

What is an Industrial 2.4 kVAR Inductor Bank used for?

An Industrial 2.4 kVAR Inductor Bank is used to apply inductive reactive load for AC circuit experiments, lagging power factor study, alternator loading, transformer testing, and electrical machine training.

Is the 2.4 kVAR rating confirmed?

The product name states 2.4 kVAR. The final voltage, phase type, current rating, continuous or intermittent duty rating, and inductance steps should be confirmed before publishing.

Is this a resistive load or an inductive load?

This product name indicates an inductive load. An inductive load stores energy in a magnetic field and causes current to lag voltage in an AC circuit.

Can it be used for power factor experiments?

Yes. A suitable inductor bank can demonstrate lagging power factor and reactive power when connected with approved AC sources, meters, and power-factor correction equipment.

What instruments are used with this inductor bank?

Common supporting instruments include voltmeter, ammeter, wattmeter, power factor meter, power analyzer, frequency meter, and the AC source or electrical machine under test.

Can students operate the inductor bank independently?

No. Inductor-bank experiments should be conducted only under trained instructor or laboratory technician supervision because they involve AC supply, reactive loading, heat, switching transients, and electrical safety controls.
