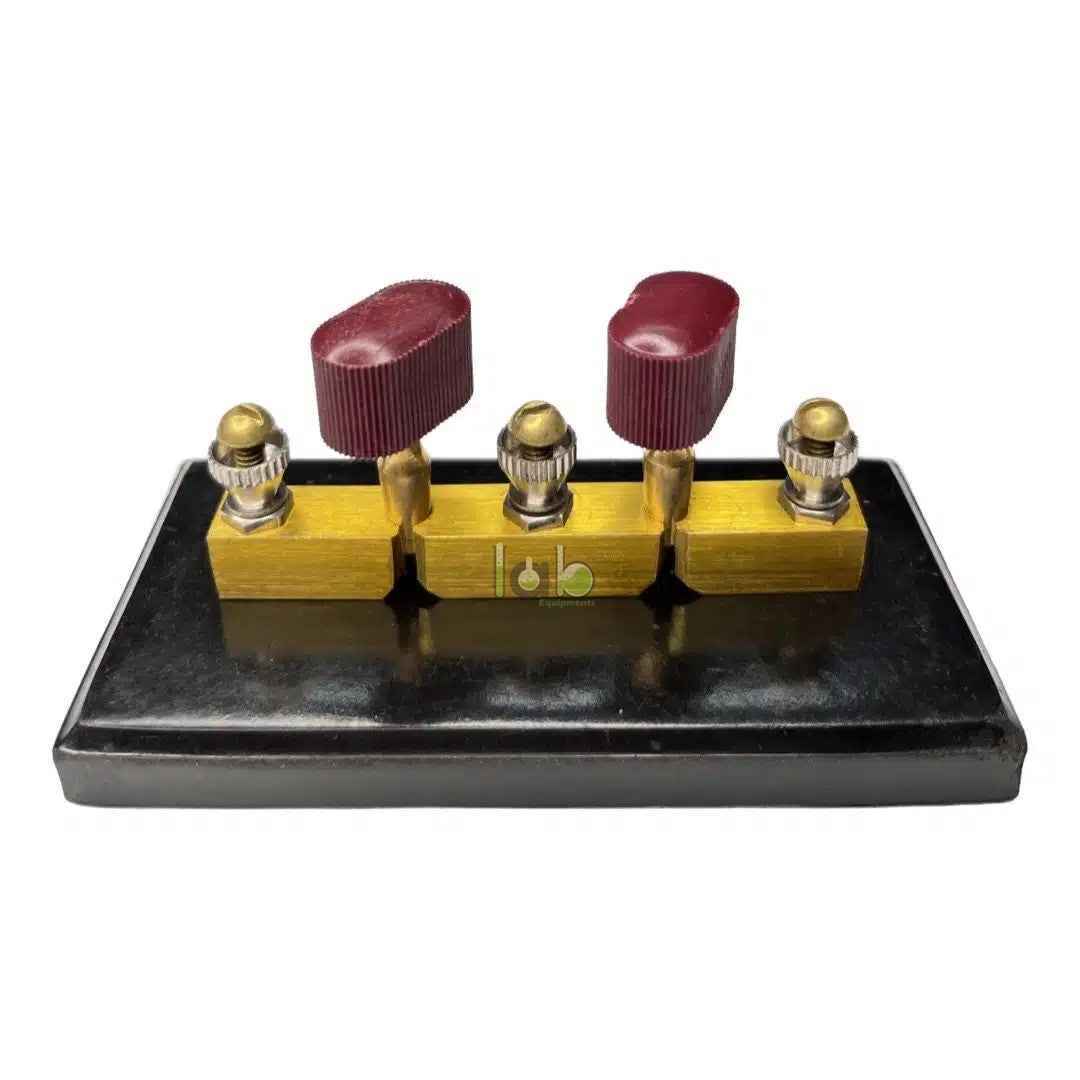

Dual Connection Plug Switch

Product Code : SCL-EAE-11262

The Dual Connection Plug Switch is a manually operated laboratory device used to make, break or select electrical connections in low-voltage circuit experiments. It enables students and teachers to control two contact paths or connection points without repeatedly removing the external circuit leads.

Product Description

The apparatus uses conductive plugs and fixed contact blocks to control circuit continuity. In a conventional plug-key arrangement, inserting a plug bridges the corresponding contacts and completes the electrical path. Removing the plug separates the contacts and opens that part of the circuit.

The term dual connection may refer to two independent plug positions, a double-ended plug or another two-path arrangement. The exact switching logic must therefore be verified from the terminal diagram or physical sample before publishing technical claims. The switch is intended for supervised work within an electrical and electronics laboratory.

Key Features

• Dual connection control: Provides two contact positions or electrical paths, subject to model confirmation.
• Plug-operated switching: Makes or breaks circuit continuity through removable conductive plugs.
• Visible circuit state: Allows users to identify whether each plug position is open or closed.
• Reduced rewiring: Controls circuit paths without repeatedly shifting external leads.
• Manual operation: Requires no internal power supply or electronic controller.
• Laboratory terminals: Supports connection to compatible low-voltage circuit leads.
• Reusable teaching accessory: Suitable for repeated practical work within confirmed electrical ratings.

Technical Specifications

What's Included in the Kit

• 1 × Dual Connection Plug Switch
• Conductive plug or plugs – quantity

A power source, lamps, resistance units, meters and connecting leads are not included unless specifically stated.

Applications / Uses

• Opening and closing two low-voltage electrical paths.
• Selecting between connected circuit branches when supported by the design.
• Controlling lamps or resistive loads during basic circuit experiments.
• Demonstrating open-circuit and closed-circuit conditions.
• Comparing two circuit configurations without repeated rewiring.
• Supporting switching exercises with a Domestic Circuit Apparatus.
• Demonstrating component control with a Lamps in Series Kit.
• Supporting practical work in the physics laboratory equipment range.

How to Use the Dual Connection Plug Switch

1. Identify the terminals and internal switching arrangement from the supplied diagram.
2. Keep the laboratory power supply switched off while making connections.
3. Connect the supply and experimental circuit to the designated terminals.
4. Check that the plugs and contact blocks are clean and undamaged.
5. Insert the first plug to close its corresponding connection.
6. Insert or remove the second plug according to the required circuit state.
7. Switch on the low-voltage supply and observe the connected load or meter.
8. Record the circuit response for each permitted plug configuration.
9. Switch off the supply before changing external wiring.

Safety note: Use only a compatible, current-limited, low-voltage laboratory supply. Never connect the plug switch directly to mains electricity.

Care & Maintenance

• Keep the plugs, contact blocks and terminals clean and dry.
• Insert and remove plugs vertically without twisting or excessive force.
• Do not file or abrade the plugs because this may produce a loose connection.
• Store all removable plugs with the unit to prevent loss.
