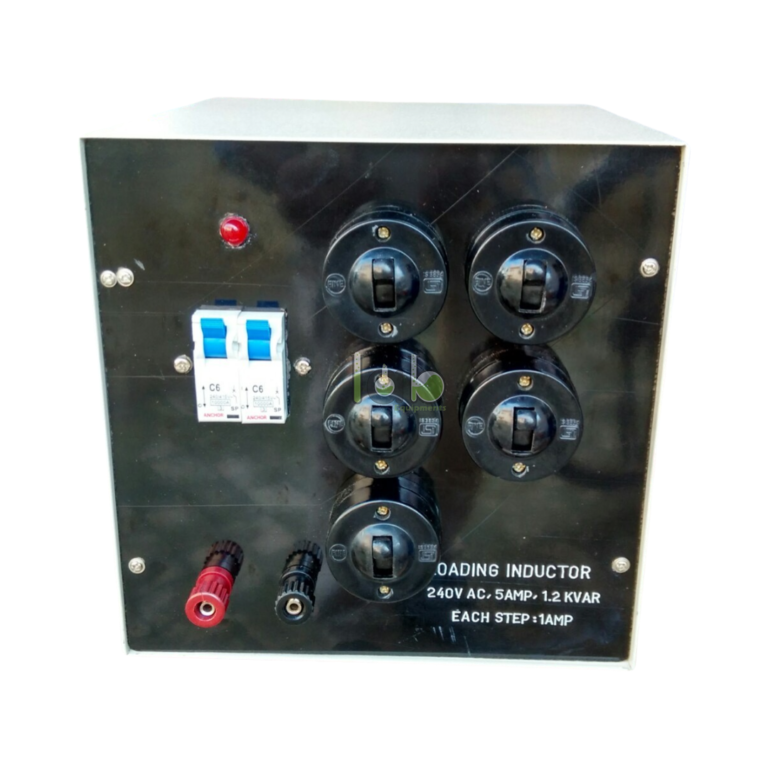

Power Systems Inductor Load Module

Product Code : SCL-EAE-11170

The Power Systems Inductor Load Module is an electrical laboratory apparatus used to apply inductive reactive loading for AC circuit analysis, lagging power factor study, transformer loading, alternator testing, and power systems training. It is suitable for engineering colleges, polytechnics, ITI/TVET centres, electrical training labs, distributors, and institutional procurement buyers.

Product Description

The Power Systems Inductor Load Module from Lab Equipments Ambala is best positioned under Physics Lab / Electrical and Electronics / Power Systems Training Apparatus. A dedicated product page with final product code, kVAR rating, voltage rating, current rating, phase type, inductance steps, switching arrangement, enclosure, protection, and duty cycle should be confirmed before publishing.

An inductor load module provides reactive AC loading through inductive coils or reactor sections. In power systems training, it helps students observe current lag, reactive power, apparent power, phase angle, voltage-current relationship, and lagging power factor behaviour when used with approved AC sources and suitable measuring instruments.

Key Features

• Inductive load function: supports AC experiments where current lags voltage due to inductance.
• Power systems training use: suitable for transformer, alternator, and AC source loading when correctly rated.
• Power factor learning: helps demonstrate lagging power factor, phase angle, and reactive power behaviour.
• Step or tap-based loading: may support gradual load variation through switches, taps, or panel controls; confirm final design.
• Measurement-compatible setup: can be used with voltmeters, ammeters, wattmeters, power factor meters, and power analyzers.
• Lab category fit: aligns with electrical apparatus, magnetism and induction equipment, lab meters, and power systems practical resources.
• Specifications pending: kVAR rating, voltage, phase, current, inductance steps, protection, enclosure, and duty cycle must be verified.

Technical Specifications

What's Included in the Kit

• Power Systems Inductor Load Module main unit
• Inductive coil, reactor, or load sections
• Step selector, tap terminals, rotary switch, MCBs, or control panel
• Input/output terminals and earthing point
• Fuse, overload protection, enclosure, ventilation guard, or indicator lamps
• Instruction manual, wiring diagram, test report, calibration certificate, or documentation

Applications / Uses

• Applying inductive reactive load to AC sources, alternators, transformers, and power systems trainers
• Studying lagging power factor and phase difference in AC circuits
• Observing real power, reactive power, apparent power, voltage, and current under inductive load
• Supporting transformer loading, alternator regulation, and electrical machine demonstrations where the confirmed rating permits
• Demonstrating power-factor correction concepts when used with suitable capacitor-bank equipment
• Training students in safe AC load connection, metering, switching, shutdown, and cooldown procedures

How to Use the Power Systems Inductor Load Module

1. Place the inductor load module on a dry, stable, ventilated laboratory bench or floor stand.
2. Confirm the voltage rating, phase type, current rating, kVAR rating, duty cycle, and earthing requirement before connection.
3. Connect the module to the AC source, alternator, transformer, or power systems trainer according to the approved wiring diagram.
4. Connect suitable instruments such as voltmeter, ammeter, wattmeter, power factor meter, frequency meter, or power analyzer.
5. Set the inductive load control to the minimum or safest starting position before energising the circuit.
6. Switch on the supply and increase the inductive load gradually using approved switches, taps, or control steps.
7. Record voltage, current, real power, apparent power, reactive power, frequency, power factor, and phase-lag observations.
8. Reduce the load, switch off the supply, and allow the module to cool before disconnection or storage.

Safety note: Use the Power Systems Inductor Load Module only within its confirmed voltage, current, phase, kVAR, and duty ratings. Inductive loads can generate heat, inrush current, stored magnetic energy, and switching transients; use trained supervision, proper earthing, insulated leads, approved meters, protective switching, and safe cooldown time.

Care & Maintenance

• Keep coil sections, vents, control switches, terminals, and enclosure surfaces clean and dry.
• Inspect insulation, earthing continuity, terminal tightness, noise, vibration, and overheating marks before operation.
• Do not exceed the confirmed kVAR rating, voltage rating, current rating, phase rating, or duty cycle.
• Store the module in a dry, dust-controlled area away from moisture, corrosive fumes, and mechanical impact.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. The brand supplies electrical and electronics apparatus, physics laboratory equipment, induction equipment, lab meters, current-control equipment, and power systems training resources for educational institutions. Its equipment range supports practical learning in AC circuits, reactive loading, induction, electrical machines, power measurement, and power factor. Buyers should request final specifications before procurement to confirm product code, voltage, phase, current rating, kVAR rating, inductance steps, protection, packing, and documentation.
