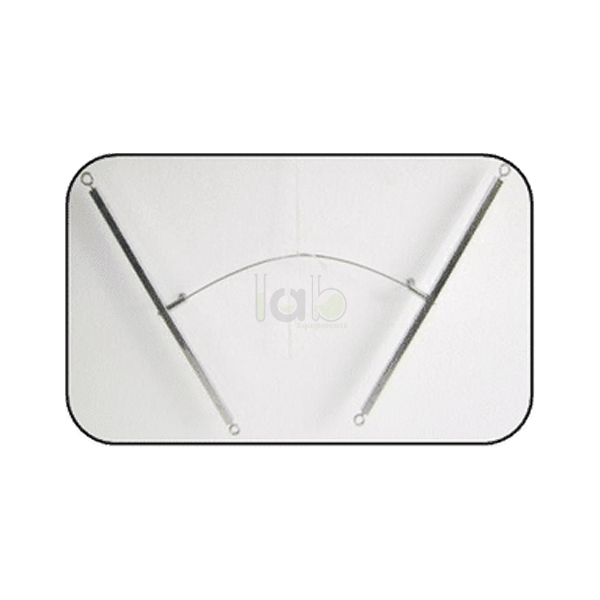

Rigidity Apparatus (Searle's Pattern)
.jpg)
Product Code : EL-EAST-10414
Quick Answer: Rigidity Apparatus (Searle's Pattern) finds the modulus of rigidity and Young's modulus of a wire by Searle's method. A 30 cm test wire joins the mid points of two brass rods about 30 cm long, which hang from hooks; three test wires with connecting screws are supplied.
Last updated: October 2026
Key Features
- Measures modulus of rigidity and Young's modulus of wire materials
- 30 cm test wire fixed by two screws to the mid points of two brass rods
- Brass rods about 30 cm long, suspended from hooks
- Complete with three test wires and connecting screws
- Dynamical method version also described: iron rod 16 inch long and 1 inch in diameter, graduated 15-0-15 cm
- Dynamical method version has a circular weight with thumb screw that fits on the rod
Technical Specifications
| Specification | Value |
|---|---|
| Method | Searle's method, modulus of rigidity and Young's modulus |
| Test wire | 30 cm long, three supplied with connecting screws |
| Rods | Two brass rods, about 30 cm long, suspended from hooks |
| Dynamical method rod | Iron, 16 inch long, 1 inch diameter, graduated 15-0-15 cm |
| Dynamical method weight | Circular weight with thumb screw, fits on the rod |
About This Product
For the Elasticity And Surface Tension bench, the wire under test is screwed between the mid points of the two hanging brass rods, and the set-up is used to find the modulus of rigidity and Young's modulus of the wire's material by Searle's method. The same source also describes a dynamical-method rigidity apparatus built around a graduated iron rod with a circular weight.
Frequently Asked Questions
Q1. What can be measured with the Rigidity Apparatus (Searle's Pattern)?
The modulus of rigidity and Young's modulus for the material of a wire, by Searle's method.
Q2. How many test wires are supplied?
Three test wires, with connecting screws.
Lab Equipments Ambala supplies institutions and distributors in Trinidad and Tobago, Uganda and Antigua and Barbuda, as part of its export work to 80+ countries.
To order the Rigidity Apparatus (Searle's Pattern) or ask a question about it, send an enquiry to Lab Equipments Ambala.
