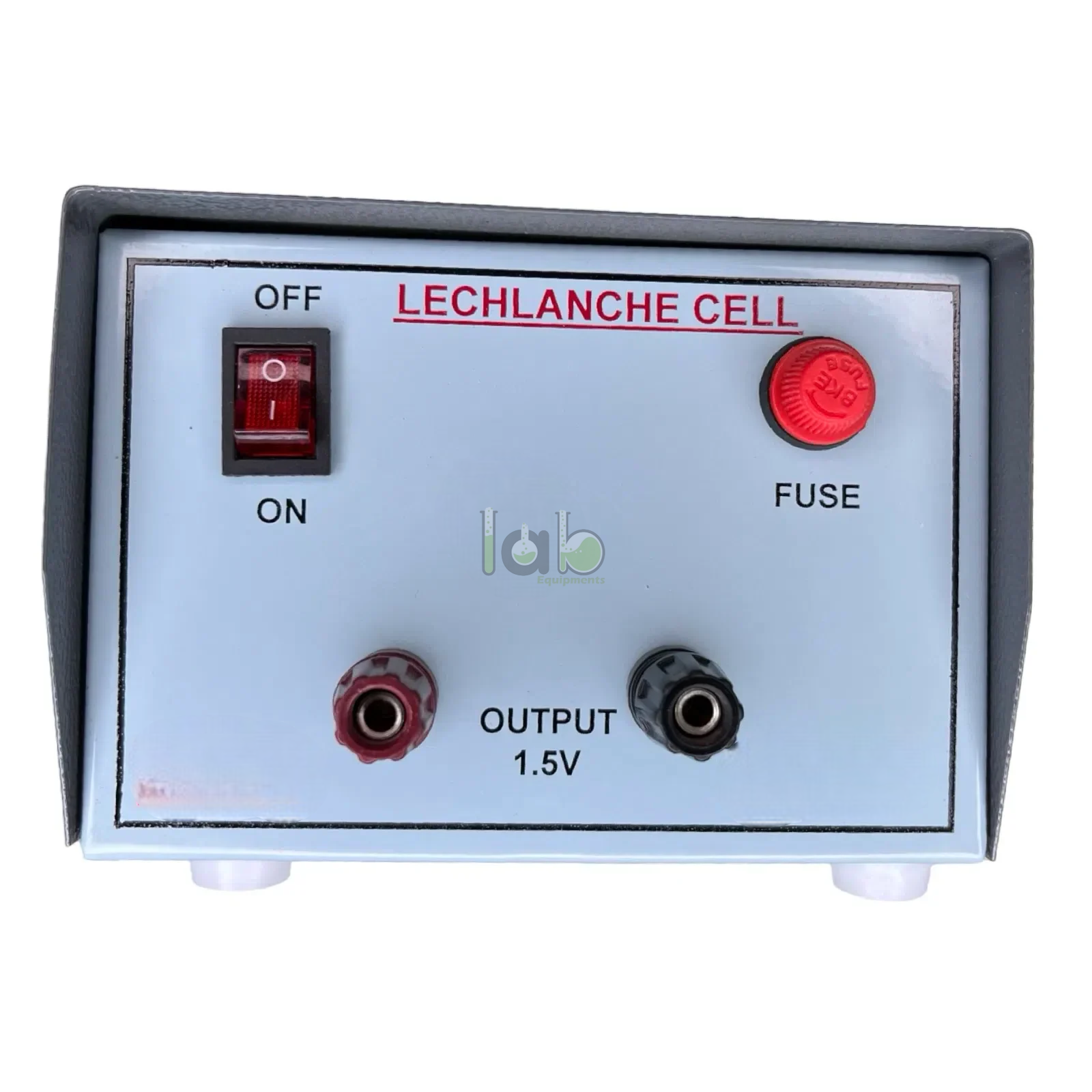

Leclanche Cell Replacement Model

Product Code : SCL-EAE-11332

The Leclanche Cell Replacement Model is a laboratory electrical source used in place of a prepared Leclanché cell during compatible circuit experiments. It is intended for physics and chemistry teachers, students, technicians, and educational laboratories that require repeatable low-voltage output without preparing a wet electrochemical cell for every practical session.

Product Description

The model reproduces the external electrical function required from a Leclanché cell in suitable teaching circuits. It can supply compatible meters, resistance apparatus, and demonstration loads. Its exact output voltage, maximum current, polarity, regulation tolerance, and input requirements must be confirmed from the approved model datasheet.

The replacement model is intended for circuit work rather than direct observation of electrochemical reactions. It does not substitute for a real Leclanché cell when the lesson covers zinc oxidation, manganese dioxide depolarisation, electrolyte action, or electrode construction. It complements other electrical and electronics laboratory equipment .

Key Features

• Reusable cell substitute: avoids preparing fresh electrolyte and electrodes for routine circuit demonstrations.
• Repeatable electrical output: supports more consistent observations between student groups.
• Low-voltage laboratory use: operates compatible educational circuits within its confirmed rating.
• Reduced preparation time: allows teachers to set up current-flow demonstrations efficiently.
• Instrument compatibility: works with suitable galvanometers, voltmeters, resistance units, and connecting leads.
• Clear teaching distinction: reproduces electrical behaviour without claiming to reproduce the cell’s internal chemistry.
• Supervised bench use: suits structured school, college, and technical-training practicals.

Technical Specifications

What's Included in the Kit

• 1 Leclanche Cell Replacement Model
• Laboratory connecting leads
• Mains lead, internal battery, or external adaptor
• Operating instructions and circuit guidance

Applications / Uses

• Demonstrating current flow in a simple external circuit.
• Producing deflection in a compatible laboratory galvanometer .
• Comparing source polarity and terminal voltage.
• Supporting introductory electromotive-force demonstrations.
• Controlling circuit current with a suitable laboratory rheostat .
• Replacing a wet cell during repeated classroom circuit exercises.

How to Use the Leclanche Cell Replacement Model

1. Place the model on a clean, dry, and stable laboratory bench.
2. Check the input and output ratings printed on the unit.
3. Keep the source switched off while assembling the circuit.
4. Identify the positive and negative output terminals.
5. Connect the model using correctly rated insulated laboratory leads.
6. Add a suitable meter and current-limiting resistance where required.
7. Switch on the source and observe the circuit response.
8. Switch off before changing any connection or component.

Safety note: Do not short the output, reverse-connect sensitive instruments, exceed the confirmed current rating, use damaged leads, or open the enclosure. Use a real Leclanché cell when electrochemical reactions are the experiment’s primary learning objective.

Care & Maintenance

• Disconnect the model before cleaning or inspection.
• Keep its terminals, controls, leads, and enclosure clean and dry.
• Inspect cables, connectors, and polarity markings before each use.
• Store the unit in a dry cabinet away from dust and impact.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala was founded in 1982 and manufactures, supplies, and exports scientific and educational laboratory equipment. Its product range includes physics apparatus, chemistry equipment, electronics instruments, science kits, mathematics kits, and teaching models. The company reports serving institutions in more than 60 countries and conducting in-house checks for accuracy, robustness, and performance. Export packaging is available for international institutional supply.

Frequently Asked Questions

What is a Leclanche cell replacement model used for?

It provides a reusable low-voltage DC source for circuit demonstrations that would otherwise require a prepared Leclanché cell.

What voltage does the replacement model provide?

The model-specific output is [confirm]. A conventional Leclanché cell produces approximately 1.5 V, but the replacement device must be rated independently.

Does it demonstrate the chemical reaction of a Leclanché cell?

No. It reproduces the external electrical function but does not show electrode reactions, electrolyte behaviour, or depolarisation.

Can it be used with a galvanometer?

Yes, when the galvanometer range, circuit resistance, polarity, and replacement source rating are compatible.

Is the output regulated?

Regulation and ripple have not been verified. Obtain the approved electrical specification before connecting sensitive apparatus.

Is it suitable for school laboratories?

Yes. It is suitable for supervised physics and chemistry circuit work after its ratings and operating instructions are confirmed.

Explore compatible laboratory meters and request the approved output specification and packing list before ordering.
