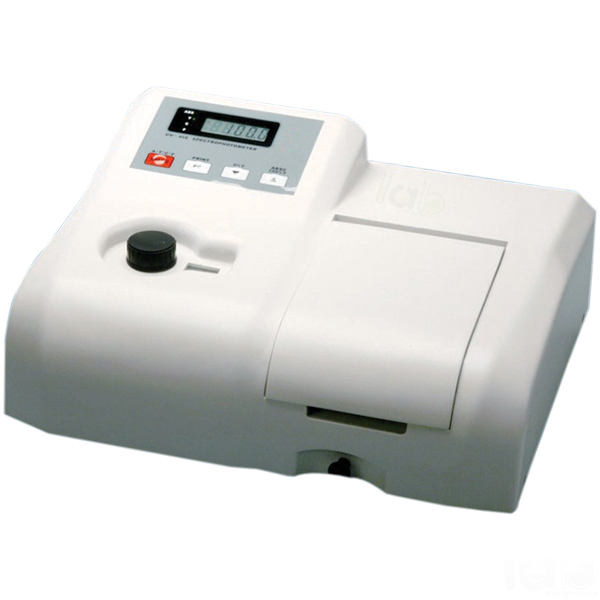

Single Beam Microprocessor UV-VIS Spectrophotometer
Product Code : EL-LI-10790
Quick Answer: Single Beam Microprocessor UV-VIS Spectrophotometer covers 195 to 1000 nm with a 2 nm spectral bandwidth, using tungsten halogen and deuterium lamps. It measures %Transmission, absorbance and concentration, with a 4 position holder for 10 mm path length cuvettes.
Last updated: October 2026
Key Features
- Wavelength range 195 to 1000 nm, resolution 0.1 nm
- Tungsten halogen and deuterium (D2) lamps
- 4 position sample holder for 10 mm path length cuvettes
- Automatic concentration, %Transmission and absorbance measurement
- RS 232C serial and printer interfaces; software included
- Set of 2 quartz and 4 glass cuvettes supplied
Technical Specifications
| Specification | Value |
|---|---|
| Wavelength range | 195 to 1000 nm |
| Spectral bandwidth | 2 nm |
| Wavelength accuracy | ± 0.5 nm |
| Repeatability | ± 0.3 nm |
| Resolution | 0.1 nm |
| Light source | Tungsten halogen lamp; deuterium lamp (D2) |
| Photometric range | %T 0 to 100%; Abs 0 to 1.999; Conc. 0 to 1999; K-factor 0 to 1999 |
| Stray light | Less than 0.1% Abs at 320 nm |
| Readability | ± 1 count |
| Detector | Wide range silicon photodiode |
| Optics | Complete mirror optics, 1200 grooves/mm grating |
| Data readout | Single line LCD display |
| Keyboard | 4 keys, soft touch membrane type |
| Interfaces | RS 232C serial; printer interface |
| Power | 230 V ± 10%, 50 Hz AC |
| Dimensions (L x B x H) | 420 x 350 x 240 mm (approx.) |
| Weight | 10 kg (approx.) |
About This Product
Wavelength is calibrated and selected manually, and the 4 position selector holds 10 mm cuvettes so samples can be read in turn as %Transmission, absorbance or concentration. Deuterium and tungsten halogen lamps cover the 195 to 1000 nm range, and the supplied set includes 2 quartz and 4 glass cuvettes. Among the Laboratory Instruments, this laboratory spectrophotometer also sends data through RS 232C and a printer interface, with software included.
Frequently Asked Questions
Q1. What wavelength range does it cover?
195 to 1000 nm, with 0.1 nm resolution and ± 0.5 nm accuracy.
Q2. Which cuvettes are supplied?
A set of 2 quartz and 4 glass cuvettes; the holder takes 10 mm path length cuvettes in 4 positions.
Q3. Can results be sent to a computer or printer?
Yes. It has an RS 232C serial interface and a printer interface, and software is included.
Lab Equipments Ambala exports to 80+ countries, including Chad, Rwanda, Vietnam and Malta.
For a quotation on the Single Beam Microprocessor UV-VIS Spectrophotometer, contact Lab Equipments Ambala.
