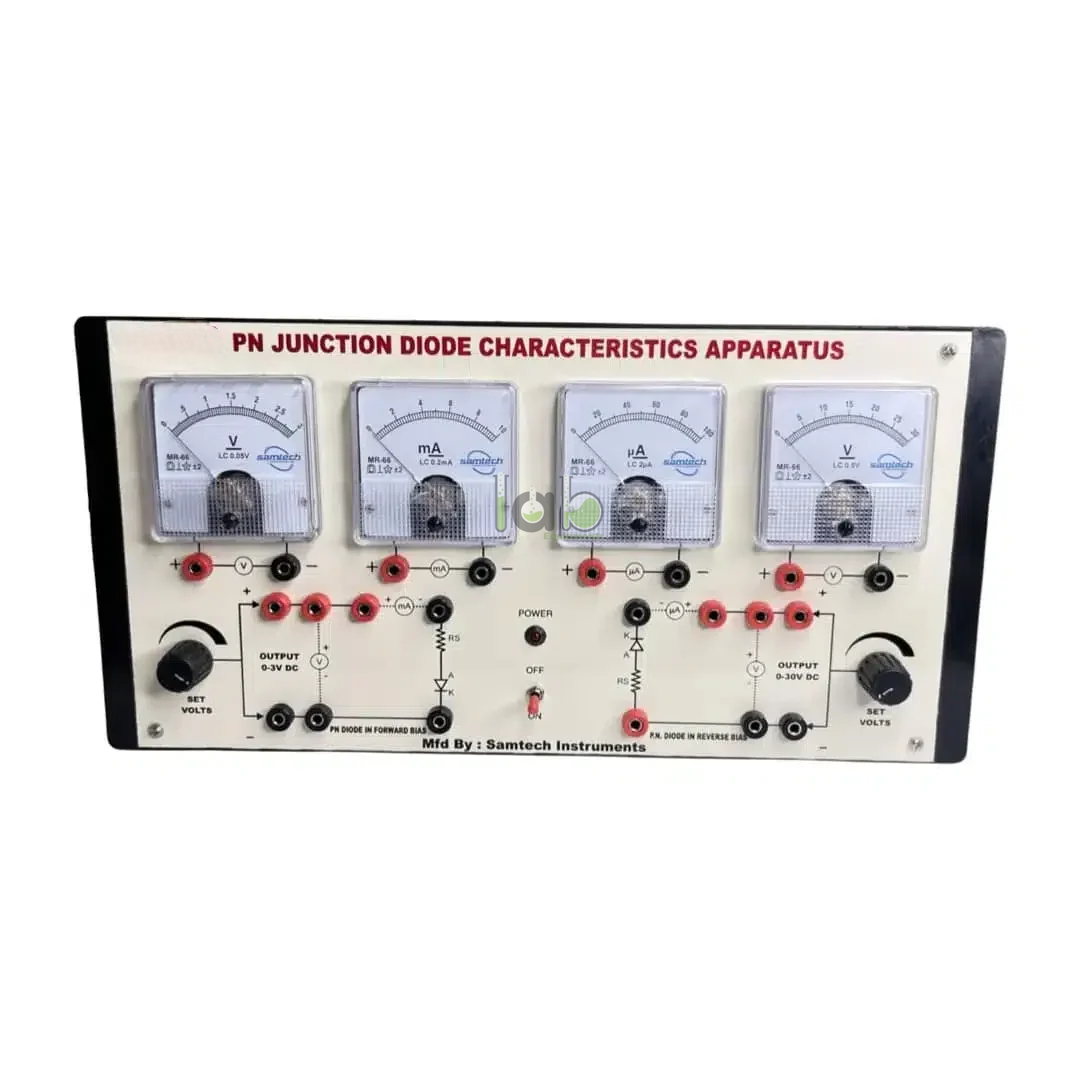

Socket Mounted PN Diode Practical Apparatus

Product Code : SCL-EAE-11201

The Socket Mounted PN Diode Practical Apparatus is a semiconductor electronics laboratory trainer used to study PN junction diode behaviour, forward-bias characteristics, reverse-bias characteristics, threshold voltage, and voltage-current response through a socket-mounted diode arrangement. It supports practical learning for engineering colleges, polytechnics, ITI/TVET centres, physics laboratories, electronics labs, STEM training centres, distributors, and institutional procurement buyers.

Product Description

The Socket Mounted PN Diode Practical Apparatus from Lab Equipments Ambala is best positioned under Physics Lab / Electrical and Electronics / Semiconductor Devices Trainer. A dedicated product page with final product code, diode socket type, PN diode material, device number, supply range, current range, meter arrangement, terminals, protection, accessories, and documentation should be confirmed before publishing.

A socket-mounted PN diode apparatus allows learners to insert or replace a compatible diode in the supplied socket and observe its electrical behaviour under controlled biasing. Depending on the final configuration, the apparatus may support PN diode forward V-I characteristics, reverse-bias leakage observation, knee-voltage study, threshold-voltage demonstration, and basic rectifier-related semiconductor experiments.

Key Features

• Socket-mounted diode study: product name indicates a socket arrangement for fitting or replacing a PN junction diode; final socket design should be confirmed.
• PN junction diode characteristics: supports practical observation of forward-bias and reverse-bias diode behaviour.
• V-I characteristics experiment: helps students record voltage and current readings for diode characteristic-curve plotting where supported.
• Forward-bias learning: enables study of conduction region, threshold voltage, knee voltage, and current rise with applied voltage.
• Reverse-bias learning: may support observation of reverse leakage current within safe operating limits; confirm final meter range.
• Measurement-compatible setup: may support voltmeter, ammeter, milliammeter, microammeter, multimeter terminals, or built-in meters if supplied.
• Specifications pending: socket type, diode material, supply range, meter ranges, current limiting, and accessories must be verified.

Technical Specifications

What’s Included in the Kit

• Socket Mounted PN Diode Practical Apparatus main unit or experiment pane
• Socket-mounted PN junction diode section or replaceable diode holder
• PN junction diode, silicon diode, germanium diode, or supplied diode device
• Forward-bias and reverse-bias circuit section
• Current-limiting resistor, protection resistor, variable control, or biasing network
• Voltmeter, ammeter, milliammeter, microammeter, multimeter terminals, or built-in display
• DC power supply, external adapter, patch cords, connecting leads, experiment manual, observation sheet, or circuit diagram

Applications / Uses

• Studying PN junction diode forward-bias characteristics
• Studying reverse-bias diode behaviour and leakage-current observation where supported
• Plotting diode voltage-current characteristics in electronics laboratories
• Demonstrating diode polarity, conduction threshold, knee voltage, and current-limiting concepts
• Testing or replacing compatible socket-mounted diode devices where the final socket design permits it
• Teaching low-voltage measurement practice for physics, electronics, instrumentation, and STEM practicals

How to Use the Socket Mounted PN Diode Practical Apparatus

1. Place the apparatus on a dry, stable laboratory bench.
2. Confirm the diode socket type, diode material, supply voltage, current limit, meter range, polarity marking, and circuit diagram before switching on.
3. Insert the PN diode into the socket according to the marked polarity and compatible lead arrangement.
4. Connect or select the PN diode in forward bias according to the approved wiring diagram.
5. Set the supply or current-control section to the minimum output before energising the circuit.
6. Increase the voltage gradually and record diode voltage and current readings without exceeding the confirmed rating.
7. Repeat the experiment in reverse bias only if the apparatus and manual specify a safe reverse-bias procedure.
8. Plot the forward and reverse V-I characteristics as instructed in the supplied experiment manual.
9. Switch off the supply before removing the diode from the socket, changing polarity, changing meter range, or modifying connections.

Safety note: Use the Socket Mounted PN Diode Practical Apparatus only with the confirmed low-voltage DC supply and current-limiting arrangement. Do not connect the experiment circuit directly to mains supply. Observe diode polarity, avoid short circuits, do not exceed the confirmed forward-current or reverse-voltage rating, and switch off power before inserting, removing, or replacing the diode.

Care & Maintenance

• Keep the panel, diode socket, terminals, switches, meters, controls, and connecting leads clean and dry.
• Inspect socket grip, diode polarity marking, test leads, fuses, current-limit control, and supply output before use.
• Do not force diode leads into the socket or operate the diode beyond confirmed voltage, current, reverse-voltage, power, or meter-range limits.
• Store the apparatus and spare diode components in a dry, labelled, dust-controlled cabinet after laboratory use.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. The brand’s verified Electrical and Electronics category includes electronics trainer kits, power supply units, analog and digital multimeters, semiconductor devices trainers, logic circuit trainers, and electronic lab equipment. Lab Equipments Ambala also supplies electronics lab trainers and educational laboratory equipment for schools, colleges, universities, and research labs. Buyers should request final specifications before procurement to confirm product code, socket type, diode material, supply range, meter layout, protection, accessories, packing, and documentation.

Frequently Asked Questions

What is Socket Mounted PN Diode Practical Apparatus used for?

Socket Mounted PN Diode Practical Apparatus is used to study PN junction diode forward-bias and reverse-bias behaviour, voltage-current characteristics, threshold voltage, and basic semiconductor-device operation.

What does socket mounted mean in this apparatus?

Socket mounted means the PN diode may be inserted into a socket or device holder rather than being permanently fixed on the panel. The exact socket design and compatible diode package should be confirmed.

Which PN diode type is supplied?

The supplied diode type is not verified. Confirm whether the apparatus includes a silicon diode, germanium diode, replaceable PN junction diode, or another compatible diode device.

What readings are recorded during the experiment?

Students typically record diode voltage and diode current for different applied voltages, then plot the forward and reverse V-I characteristics according to the supplied experiment manual.

Can this apparatus be connected directly to mains power?

No. The experiment circuit should be used only with the confirmed low-voltage DC supply or approved adapter. Direct mains connection can damage the apparatus and create an electrical hazard.

What should be confirmed before ordering?

Confirm product code, diode socket type, compatible diode package, PN diode material, voltage range, current range, current-limiting method, meter arrangement, terminals, connecting leads, experiment manual, packing, and documentation.
