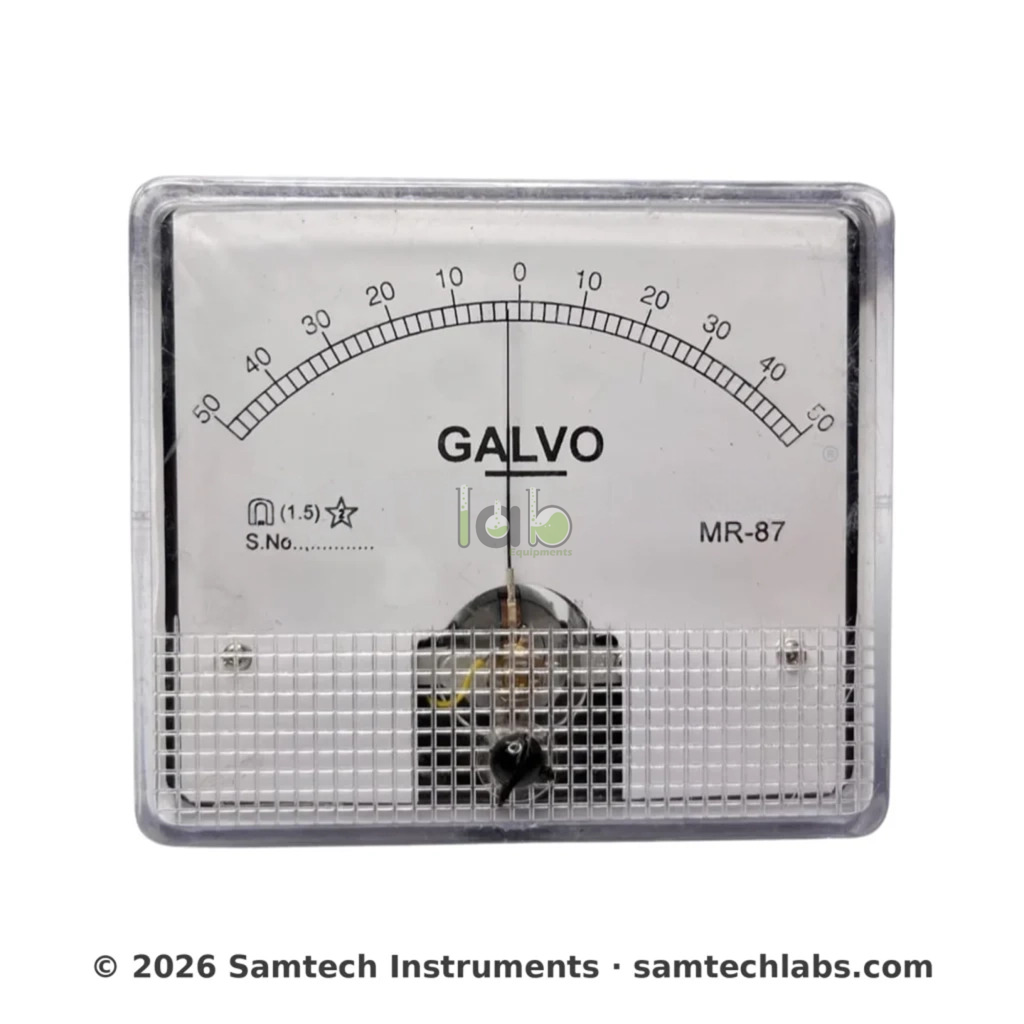

MR87 Analog Control Panel Meter

Product Code : SCL-LM-11218

The MR87 Analog Control Panel Meter is an analog laboratory measuring instrument used for voltage, current, or galvanometer-style readings in physics and electronics control-panel circuits. It is suitable for schools, colleges, engineering laboratories, polytechnics, ITI/TVET centres, STEM labs, distributors, and institutional procurement buyers that require a panel-mounted educational meter.

Product Description

The MR87 Analog Control Panel Meter from Lab Equipments Ambala is best positioned under Physics Lab / Lab Meters / Electrical Measuring Instruments. It supports educational control panels, trainer boards, and circuit demonstration units where students need to observe pointer deflection, scale reading, polarity, zero position, and safe measurement practice.

A dedicated product page with final product code, MR87 meter function, measurement range, movement type, scale type, accuracy, internal resistance or shunt details, terminal style, control-panel mounting, enclosure material, accessories, packing, and documentation should be confirmed before publishing. The “MR87” and “analog control panel meter” terms are retained from the supplied product name; final configuration must be verified.

Key Features

• Analog control-panel format: suitable for trainer panels, demonstration boards, and educational control panels where the final mounting design permits it.
• Pointer-based measurement: helps students observe voltage, current, or galvanometer-style deflection during circuit operation.
• MR87 laboratory meter format: product name indicates an MR87-style meter; final range, scale, and function should be confirmed.
• Multiple possible functions: may be supplied as voltmeter, ammeter, milliammeter, microammeter, or galvanometer.
• Control-panel learning value: useful for power-supply panels, electrical trainers, electronics trainers, and circuit boards where compatible.
• Classroom measurement support: reinforces analog scale reading, zero setting, polarity awareness, terminal selection, and range discipline.
• Verification required: range, accuracy, scale length, movement type, terminal type, enclosure, and mounting details must be confirmed from the final specification sheet.

Technical Specifications

What's Included in the Kit

• MR87 Analog Control Panel Meter main unit
• Panel mounting clamp, bracket, screws, or fixing hardware
• Input terminals, terminal links, or connecting leads
• Scale plate, shunt, multiplier, or range section
• Instruction manual, calibration note, test certificate, or wiring guide
• Protective packing for laboratory or institutional dispatch

Applications / Uses

• Reading analog voltage or current in educational control panels and trainer circuits
• Using as a panel meter in electrical and electronics trainer kits where compatible
• Supporting Ohm’s law, current electricity, resistance, and series-parallel circuit experiments
• Supporting galvanometer-style null detection where the final supplied model permits it
• Teaching analog scale reading, zero setting, polarity, terminal selection, and safe measurement practice
• Recording readings for observation tables, circuit-analysis work, and student laboratory files

How to Use the MR87 Analog Control Panel Meter

1. Identify the confirmed meter function: voltmeter, ammeter, milliammeter, microammeter, or galvanometer.
2. Check the range, scale, polarity, terminal marking, zero position, and circuit diagram before connecting the meter.
3. Mount the meter in the approved control-panel cut-out only if the final drawing confirms the fitting size.
4. Connect an ammeter-type meter in series with the circuit branch where current is measured.
5. Connect a voltmeter-type meter in parallel across the component or supply section where voltage is measured.
6. Apply power gradually and observe pointer movement without exceeding the confirmed range.
7. Read the scale from the front to reduce parallax error and record the reading after the pointer stabilises.
8. Switch off the circuit before changing connections, range, terminal links, or experiment layout.

Safety note: Use the MR87 Analog Control Panel Meter only within its confirmed meter function and measuring range. Do not connect an ammeter directly across a voltage source. Do not overload a galvanometer movement. Keep terminals dry, observe polarity where applicable, and use instructor supervision in student laboratories.

Care & Maintenance

• Keep the scale window, pointer, terminals, enclosure, mounting area, and leads clean and dry.
• Check pointer zero, terminal tightness, mounting stability, scale visibility, and visible damage before use.
• Store spare meters away from dust, moisture, vibration, impact, strong magnetic fields, and excess heat.
• Use protective packing during transport to avoid pointer, movement, case, terminal, or scale-window damage.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports educational and scientific laboratory equipment for physics, chemistry, biology, mathematics, engineering, and STEM laboratories. Its verified Lab Meters category includes panel meters, galvanometers, ammeters, voltmeters, portable meters, ohm meters, and demonstration meters for educational laboratory use. Buyers should request the final MR87 Analog Control Panel Meter specification sheet before procurement to confirm function, range, scale, mounting, enclosure, accessories, packing, and documentation.

Frequently Asked Questions

What is an MR87 Analog Control Panel Meter used for?

An MR87 Analog Control Panel Meter is used for analog voltage, current, or galvanometer-style readings in educational physics and electronics control-panel circuits. The exact function depends on the final supplied model.

Is this MR87 meter a voltmeter or an ammeter?

The exact function is not verified. Confirm whether the supplied MR87 meter is a voltmeter, ammeter, milliammeter, microammeter, or galvanometer before publishing or ordering.

What does analog control panel meter mean?

An analog control panel meter is a pointer-scale measuring instrument intended for mounting into an equipment panel, trainer board, or control-panel face. The exact panel cut-out, scale type, and fixing hardware should be confirmed.

What range is available for this MR87 panel meter?

The measurement range is not verified. Confirm the final voltage, current, milliampere, microampere, or galvanometer scale range before procurement.

Can students connect this meter directly to a battery?

Only if the connection matches the confirmed meter function and circuit diagram. Ammeter and galvanometer configurations can be damaged by direct connection across a source without proper resistance or protection.

What should be confirmed before ordering?

Confirm product code, meter function, measurement range, scale type, scale length, accuracy, terminal type, internal resistance or shunt details, mounting cut-out, enclosure, accessories, packing, and documentation.

For related measuring instruments, explore Lab Meters, Galvanometer, Electrical and Electronics equipment, and Contact Lab Equipments Ambala for confirmed specifications and institutional enquiries.
