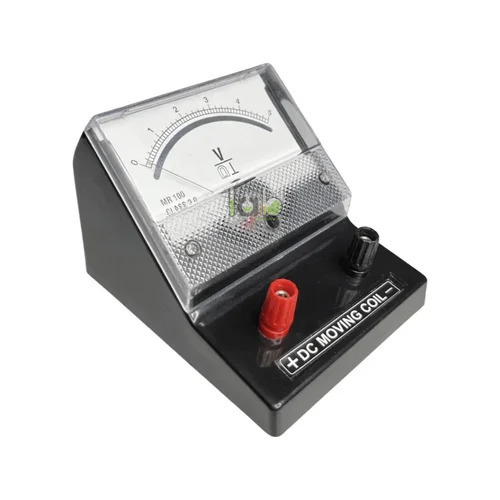

MR100 Panel & Desk Stand Meter

Product Code : SCL-LM-11211

The MR100 Panel & Desk Stand Meter is an analog laboratory measuring instrument used for voltage, current, or galvanometer-style readings in physics and electronics practical circuits. It is suitable for schools, colleges, engineering laboratories, polytechnics, ITI/TVET centres, STEM labs, distributors, and institutional procurement buyers that require a readable bench or panel meter.

Product Description

The MR100 Panel & Desk Stand Meter from Lab Equipments Ambala is best positioned under Physics Lab / Lab Meters / Electrical Measuring Instruments. It is intended for educational circuits where students need to observe pointer movement, scale reading, zero position, polarity, and electrical measurement behaviour during practical work.

A dedicated product page with final product code, MR100 case size, meter function, range, scale type, accuracy, internal resistance or shunt details, terminal style, desk-stand construction, panel-mounting details, accessories, packing, and documentation should be confirmed before publishing. The “MR100” and “Panel & Desk Stand” terms are retained from the supplied product name; final configuration must be verified.

Key Features

• Panel and desk-stand format: suitable for bench demonstrations, laboratory tables, and trainer-panel integration where the final design permits it.
• Analog pointer indication: helps students observe voltage, current, or galvanometer deflection visually during circuit practicals.
• MR100 laboratory meter format: product name indicates an MR100-style meter; exact scale, range, and case size should be confirmed.
• Multiple possible functions: may be supplied as voltmeter, ammeter, milliammeter, microammeter, or galvanometer; confirm final model before publishing.
• Educational measurement use: supports Ohm’s law, current electricity, series-parallel circuits, meter bridge, and trainer-kit work where compatible.
• Classroom readability: a desk-stand or panel layout can improve visibility for supervised student experiments.
• Verification required: range, accuracy, scale length, movement type, terminals, and stand construction must be confirmed from the final specification sheet.

Technical Specifications

What’s Included in the Kit

• MR100 Panel & Desk Stand Meter main unit
• Panel mounting or desk-stand arrangement
• Input terminals or connecting leads
• Scale plate, shunt, multiplier, or range section
• Instruction manual, calibration note, test certificate, or wiring guide
• Protective packing for laboratory or institutional dispatch

Applications / Uses

• Reading analog voltage or current in school and college laboratory circuits
• Using as a panel meter in electrical and electronics trainer kits where compatible
• Using as a desk-stand meter for classroom demonstration and bench practicals
• Supporting Ohm’s law, current electricity, resistance, and series-parallel circuit experiments
• Supporting galvanometer-style null detection where the final supplied model permits it
• Teaching analog scale reading, zero setting, polarity, and safe measurement practice

How to Use the MR100 Panel & Desk Stand Meter

1. Identify the confirmed meter function: voltmeter, ammeter, milliammeter, microammeter, or galvanometer.
2. Check the range, scale, polarity, terminal marking, zero position, and circuit diagram before connecting the meter.
3. Place the meter securely on the desk stand or mount it in the approved panel position.
4. Connect an ammeter-type meter in series with the circuit branch where current is measured.
5. Connect a voltmeter-type meter in parallel across the component or supply section where voltage is measured.
6. Apply power gradually and observe the pointer without exceeding the confirmed range.
7. Read the scale from the front to reduce parallax error and record the reading after the pointer stabilises.
8. Switch off the circuit before changing connections, range, or experiment layout.

Safety note: Use the MR100 Panel & Desk Stand Meter only within its confirmed meter function and measuring range. Do not connect an ammeter directly across a voltage source. Do not overload a galvanometer movement. Keep terminals dry, observe polarity where applicable, and use instructor supervision in student laboratories.

Care & Maintenance

• Keep the scale window, pointer, terminals, stand, enclosure, and leads clean and dry.
• Check pointer zero, terminal tightness, stand stability, scale visibility, and visible damage before use.
• Store the meter away from dust, moisture, vibration, impact, strong magnetic fields, and excess heat.
• Use protective packing during transport to avoid pointer, movement, case, or scale-window damage.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports educational and scientific laboratory equipment for physics, chemistry, biology, mathematics, engineering, and STEM laboratories. Its verified Lab Meters category includes panel meters, galvanometers, ammeters, voltmeters, portable meters, ohm meters, and demonstration meters for educational laboratory use. Buyers should request the final MR100 Panel & Desk Stand Meter specification sheet before procurement to confirm function, range, scale, enclosure, mounting, accessories, packing, and documentation.

Frequently Asked Questions

What is an MR100 Panel & Desk Stand Meter used for?

An MR100 Panel & Desk Stand Meter is used for analog voltage, current, or galvanometer-style readings in educational physics and electronics laboratory circuits. The exact function depends on the final supplied model.

Is this meter a voltmeter or an ammeter?

The exact function is not verified. Confirm whether the supplied MR100 meter is a voltmeter, ammeter, milliammeter, microammeter, or galvanometer before publishing or ordering.

What does panel and desk stand mean?

Panel and desk stand indicates that the meter may be suitable for mounting in an apparatus panel or using on a laboratory bench stand. The exact mounting design should be confirmed from the final specification sheet.

What range is available for this MR100 meter?

The measurement range is not verified. Confirm the final voltage, current, milliampere, microampere, or galvanometer scale range before procurement.

Can students connect this meter directly to a battery?

Only if the connection matches the confirmed meter function and circuit diagram. Ammeter and galvanometer configurations can be damaged by direct connection across a source without proper resistance or protection.

What should be confirmed before ordering?

Confirm product code, meter function, measurement range, scale type, scale length, accuracy, terminal type, internal resistance or shunt details, stand construction, enclosure, accessories, packing, and documentation.
