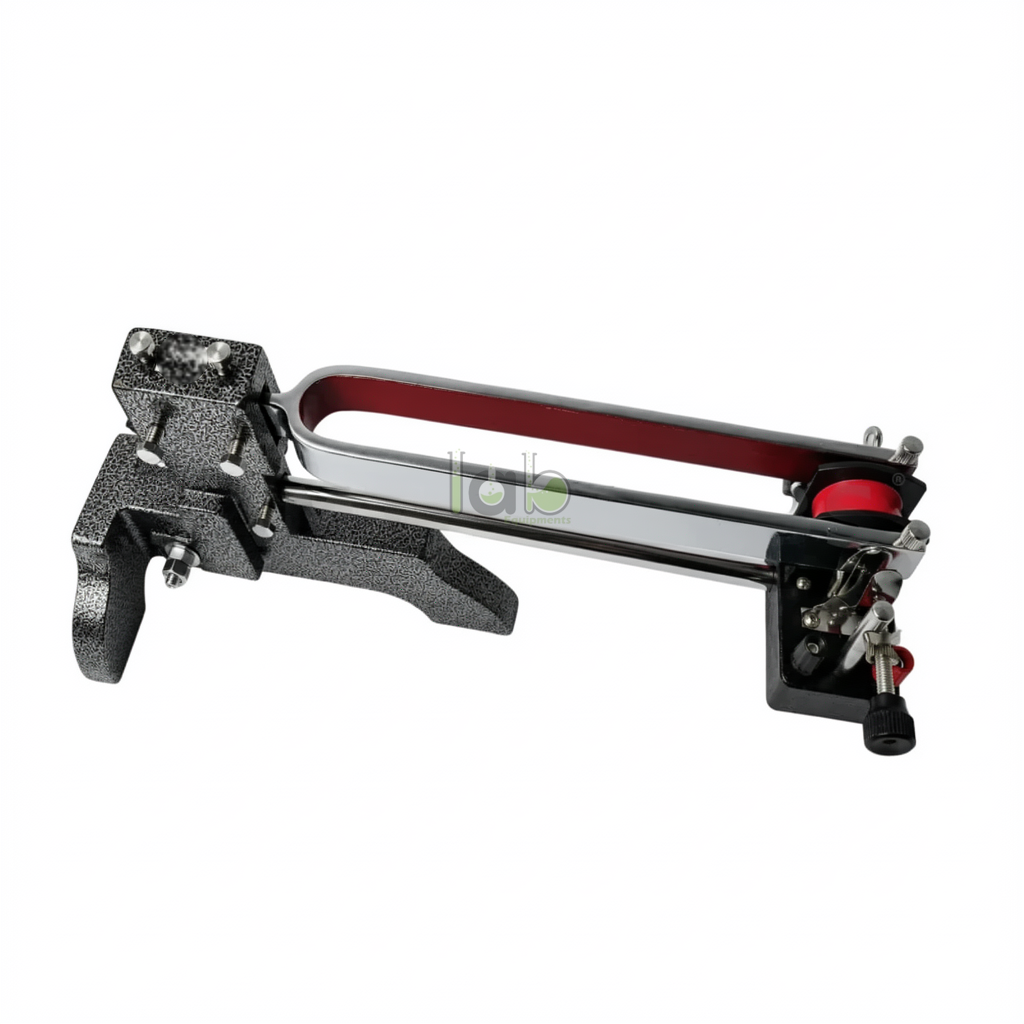

Melde's String Vibration Apparatus

Product Code : SCL-PMP-11300

Melde’s String Vibration Apparatus is a physics laboratory system used to produce and observe stationary waves on a stretched string. It enables students and instructors to investigate how vibration frequency, string tension, vibrating length and the number of loops affect transverse wave patterns.

Product Description

The apparatus uses a lightweight string connected to a mechanical or electromagnetic vibrator. The string passes through a controlled experimental arrangement and is tensioned using a pulley and suspended load. At suitable combinations of frequency, length and tension, clear nodes and antinodes form along the string.

Learners can count the loops, measure the vibrating length and relate the observed pattern to wave frequency and tension. Depending on the supplied configuration, the apparatus may support transverse and longitudinal excitation modes. The vibrator design, operating frequency, string specification, loading system and electrical requirements must be confirmed.

Key Features

• Standing-wave demonstration: Produces visible nodes, antinodes and multiple-loop patterns on a stretched string.
• Variable string tension: Allows tension to be changed using suspended masses or another confirmed loading arrangement.
• Adjustable vibrating length: Supports comparison of wave patterns at different effective string lengths.
• Frequency investigation: Helps students relate vibrator frequency to wavelength and loop formation.
• Multiple-mode potential: May support transverse and longitudinal excitation where included in the supplied design.
• Measurement-based learning: Encourages students to record length, mass, loop count and calculated wave quantities.
• Reusable laboratory apparatus: Suitable for repeated senior-secondary and introductory undergraduate practicals.

Technical Specifications

What's Included

• String vibrator or excitation unit
• Experimental base, stand or support frame
• Lightweight vibration string
• Low-friction pulley and support
• Mass hanger and slotted masses
• Scale, bridge or string-position guide
• Power unit, leads and operating instructions

Applications

• Producing stationary waves on a stretched string.
• Identifying nodes, antinodes and vibrating loops.
• Studying the effect of tension on wavelength and loop count.
• Investigating the relationship between frequency and vibrating length.
• Estimating the frequency of a vibrator from measured wave data.
• Comparing transverse and longitudinal excitation where supported.

Related resources include the Tuning Fork Set of 8, the Sonometer Excitation Electromagnet listing, broader Physics Laboratory Equipment and the company’s Physics Laboratory Equipment Guide.

How to Use Melde’s String Vibration Apparatus

1. Place the apparatus on a stable, level laboratory bench.
2. Connect one end of the string to the vibrator.
3. Pass the other end over the pulley and attach the mass hanger.
4. Add the specified load to establish the required string tension.
5. Measure the effective vibrating length of the string.
6. Switch on or operate the vibrator at the selected frequency.
7. Adjust the tension, length or frequency until stable loops appear.
8. Count the loops, record the measurements and repeat with other settings.

Safety note: Switch off the vibrator before changing the string or suspended load. Secure all masses, keep hands clear of the moving string and pulley, and use only the confirmed electrical supply.

Care & Maintenance

• Inspect the string for fraying, stretching or knots before each experiment.
• Keep the pulley clean and confirm that it rotates freely.
• Do not exceed the recommended vibrator load or string tension.
• Disconnect electrical components before cleaning or storage.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and supplies educational physics apparatus, sound equipment and laboratory experiment systems from Ambala, India. Its published range includes sonometers, tuning forks, wave apparatus and vibration equipment for schools, colleges and universities. The company also supports institutional and international procurement. Buyers should request the current technical drawing, electrical specification and component-level packing list before ordering.

Frequently Asked Questions

What is Melde’s String Vibration Apparatus used for?

It is used to produce stationary waves on a stretched string and study the effects of frequency, tension and vibrating length.

What do the loops on the string represent?

Each loop lies between two adjacent nodes and contains an antinode where the vibration amplitude is greatest.

How is string tension changed?

Tension is normally changed by adding or removing suspended masses. The supplied mass range and increments must be confirmed.

Does the apparatus include an electromagnetic vibrator?

The vibrator type is not confirmed for this exact model. Request clarification on whether it is electromagnetic, mechanical or tuning-fork driven.

Can it demonstrate both excitation modes?

Some Melde’s apparatus configurations support transverse and longitudinal excitation. This capability must be verified for the supplied unit.

Is it suitable for senior-secondary laboratories?

Yes. It is suitable for supervised senior-secondary and introductory undergraduate wave and vibration experiments when its specifications match the prescribed practical.

Request the confirmed vibrator type, frequency range, string specification and mass set, or explore the Physics Laboratory Equipment category for related wave and vibration apparatus.
