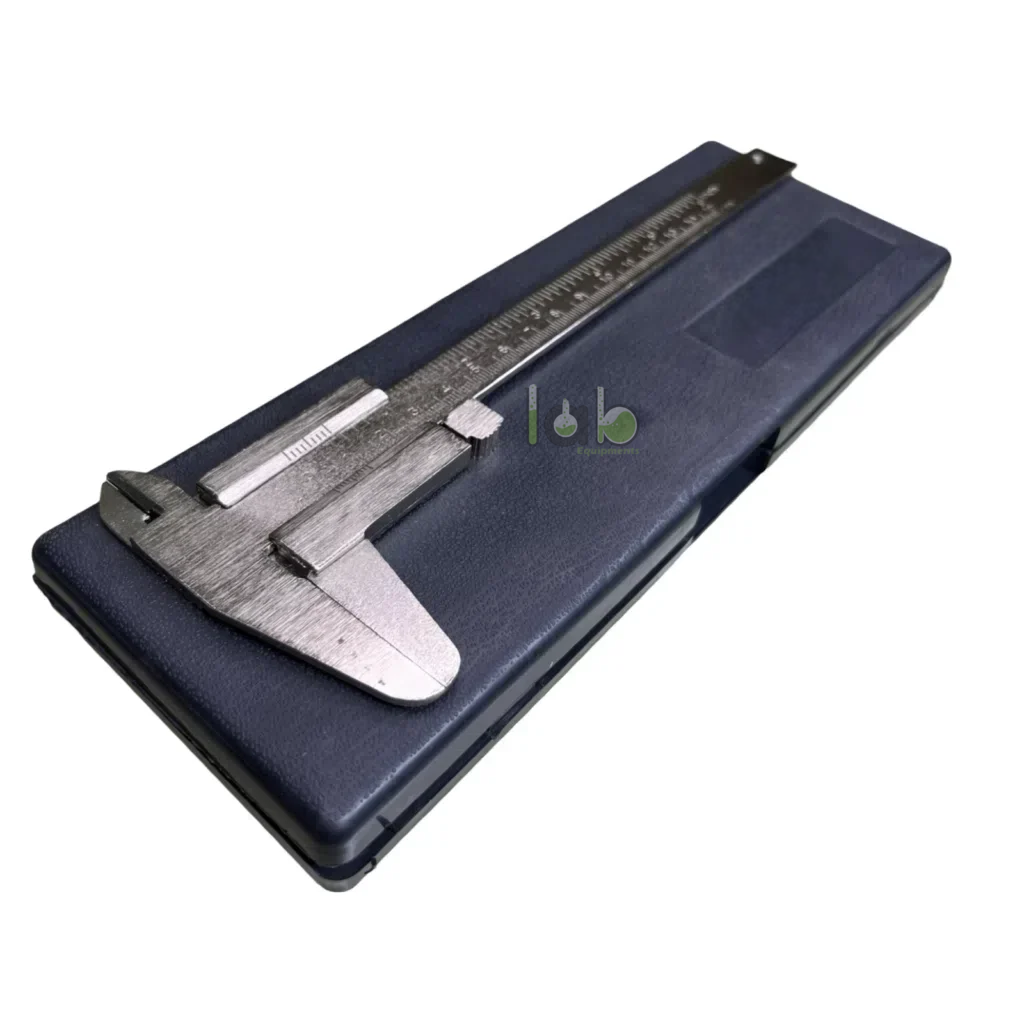

IME Mechanical Vernier Gauge

Product Code : SCL-AM-11226

The IME Mechanical Vernier Gauge is a precision mechanical measuring instrument used to measure external dimensions, internal dimensions, depth, and step height where the final model supports these functions. It is suitable for school physics labs, engineering laboratories, polytechnics, ITI/TVET centres, workshops, STEM labs, distributors, and institutional procurement buyers.

Product Description

The IME Mechanical Vernier Gauge from Lab Equipments Ambala is best positioned under Physics Lab / Measurement Instruments / Vernier and Precision Measuring Tools. It supports practical work where students learn direct measurement, vernier-scale reading, least count, zero error, internal diameter, external diameter, and depth measurement.

A dedicated product page with final product code, IME model meaning, measuring range, least count, accuracy, jaw type, depth rod, step-measurement feature, scale material, surface finish, locking screw, thumb roller, case, packing, and documentation should be confirmed before publishing. Do not publish unverified range, accuracy, calibration, material, or certification claims without a final specification sheet.

Key Features

• Mechanical vernier reading: helps students understand main-scale and vernier-scale measurement without relying on a digital display.
• Precision measurement use: suitable for external diameter, internal diameter, length, depth, and step measurements where the final model permits it.
• Physics and engineering lab compatibility: supports measurement practicals, workshop inspection, mechanics activities, and STEM training.
• Least-count learning: useful for teaching vernier constant, zero error, observed reading, and corrected reading.
• Reusable classroom tool: appropriate for repeated supervised measurements of rods, cylinders, blocks, tubes, and small apparatus parts.
• Manual operation: does not require batteries or electronic display components.
• Verification required: measuring range, least count, jaw type, material, accuracy, and included case must be confirmed from the final specification sheet.

Technical Specifications

What’s Included in the Kit

• IME Mechanical Vernier Gauge main unit
• Protective case or storage box
• Instruction sheet, practical guide, calibration note, or test certificate
• Protective packing for laboratory or institutional dispatch

Applications / Uses

• Measuring external diameter of rods, cylinders, and laboratory components
• Measuring internal diameter of tubes, rings, and hollow objects where compatible
• Measuring depth of small holes, recesses, and containers where a depth rod is supplied
• Teaching vernier least count, zero error, corrected reading, and observation-table preparation
• Supporting physics, mechanics, workshop, engineering, and STEM measurement practicals
• Training students in careful handling of precision mechanical measuring instruments

How to Use the IME Mechanical Vernier Gauge

1. Clean the jaws and object surface before measurement.
2. Close the jaws gently and check for zero error before starting the practical.
3. Place the object between the external jaws for outside measurement, or use internal jaws for inside measurement where supplied.
4. Slide the movable jaw until it touches the object without excessive pressure.
5. Lock the slider if the final model includes a locking screw.
6. Read the main-scale value just before the vernier zero.
7. Find the vernier division that coincides with the main-scale line and calculate the final reading using the confirmed least count.
8. Apply zero-error correction, record the result, and repeat readings for reliability.

Safety note: Use the IME Mechanical Vernier Gauge only for suitable laboratory and workshop measurements. Do not force the jaws, drop the gauge, use it as a marking tool, or expose it to corrosive chemicals. Handle sharp jaw edges carefully and store the instrument in its protective case where supplied.

Care & Maintenance

• Keep the jaws, scale, slider, depth rod, and case clean and dry.
• Wipe the gauge after use to remove dust, oil, moisture, or fingerprints.
• Do not overtighten the locking screw or force the slider over dirt or burrs.
• Store the gauge in protective packing away from shock, corrosion, bending, and excess humidity.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and supplies educational and scientific laboratory equipment for physics, chemistry, biology, mathematics, engineering, and STEM laboratories. Its verified physics lab guidance includes vernier calipers as precision measuring instruments for school and college measurement practicals. Buyers should request the final IME Mechanical Vernier Gauge specification sheet before procurement to confirm range, least count, material, jaw design, case, packing, and documentation.

Frequently Asked Questions

What is an IME Mechanical Vernier Gauge used for?

An IME Mechanical Vernier Gauge is used to measure external dimensions, internal dimensions, depth, and step height where the final model includes those measurement features.

Is a mechanical vernier gauge the same as a vernier caliper?

Yes, it is commonly described as a vernier caliper or vernier calliper when it has external jaws, internal jaws, a vernier scale, and suitable measuring faces. Confirm the final jaw configuration before publishing.

What is the measuring range of this vernier gauge?

The measuring range is not verified from the supplied product name. Confirm the final range, least count, and accuracy before ordering or publishing the specification.

Does it need batteries?

No. A mechanical vernier gauge is read manually using the main scale and vernier scale, so it does not require batteries.

Can it be used in school physics practicals?

Yes. Vernier gauges are widely used in school and college physics practicals for measurement of length, diameter, internal diameter, and depth where the final model supports these functions.

What should be confirmed before ordering?

Confirm product code, IME model meaning, measuring range, least count, accuracy, jaw type, depth rod, step measurement, material, locking screw, case, packing, and documentation.
