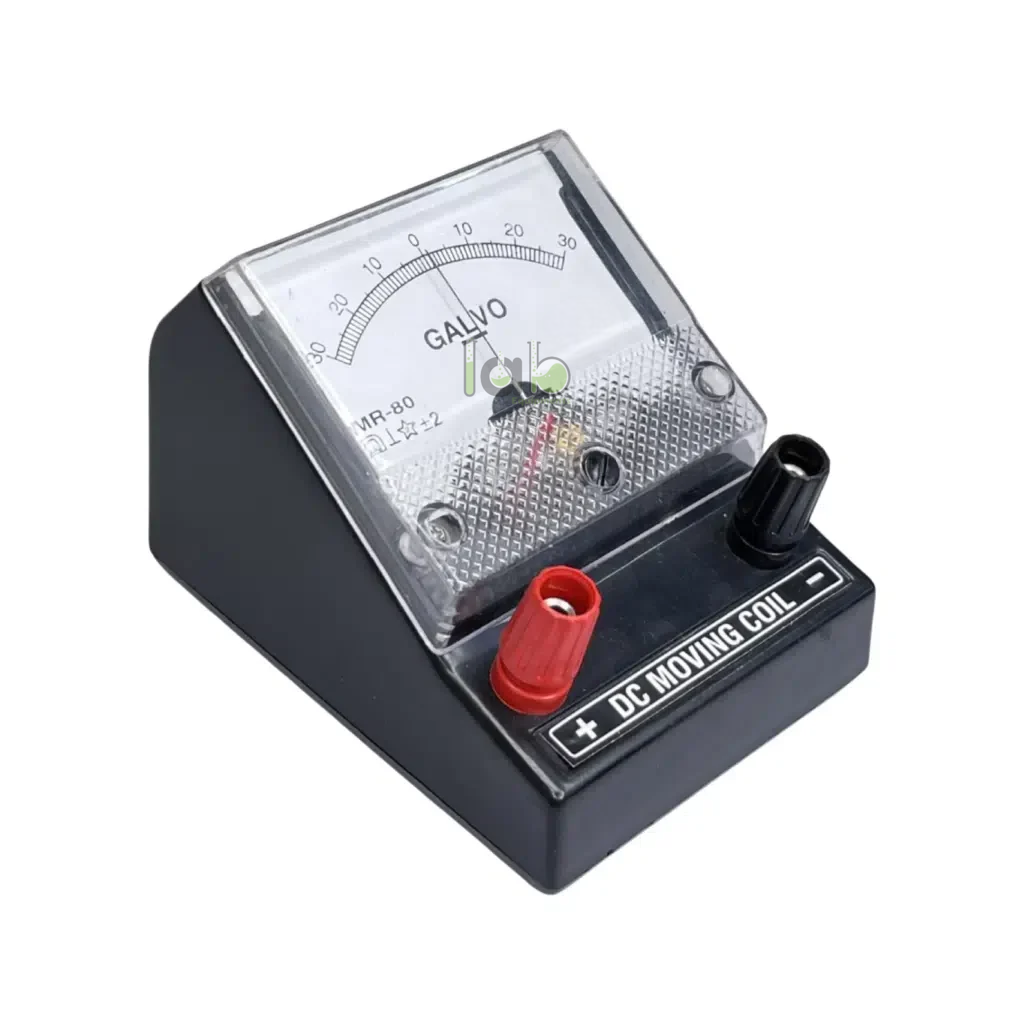

Analog Galvanometer Meter

Product Code : SCL-LM-11205

The Analog Galvanometer Meter is an electromechanical current-detection instrument used for observing small electric currents and null deflection in physics laboratory circuits. It is suitable for schools, colleges, engineering labs, polytechnics, ITI/TVET centres, STEM laboratories, distributors, and institutional procurement teams that require visual current indication during experiments.

Product Description

The Analog Galvanometer Meter from Lab Equipments Ambala is best positioned under Physics Lab / Lab Meters / Electrical Measuring Instruments. A galvanometer is commonly used when students need to detect current flow, compare circuit balance, observe deflection direction, or perform null-point experiments.

A dedicated product page with final product code, current sensitivity, scale range, internal resistance, pointer movement, zero adjustment, terminal type, enclosure material, dimensions, weight, packing, and documentation should be confirmed before publishing. Do not publish unverified sensitivity, accuracy, resistance, or calibration values without a final specification sheet.

Key Features

• Analog current detection: provides visible pointer deflection for small current flow in educational circuits.
• Null-deflection experiments: suitable for bridge, potentiometer, comparison, and balance-point practicals where a sensitive detector is required.
• Bidirectional indication: may show current direction around a central zero scale if supplied; confirm final scale design.
• Physics lab compatibility: supports current electricity, resistance measurement, meter bridge, and potentiometer practicals.
• Student-friendly observation: helps learners connect current direction and magnitude with pointer movement.
• Bench or panel format: may be supplied as a tabletop meter or panel-mounted meter; confirm final construction.
• Specification-dependent sensitivity: range, resistance, zero setting, and accuracy must be verified from the final data sheet.

Technical Specifications

What’s Included in the Kit

• Analog Galvanometer Meter main unit
• Input terminals or connecting leads
• Protective case, bench stand, or panel mounting arrangement
• Instruction manual, calibration note, test certificate, or wiring guide
• Protective packing for laboratory or institutional dispatch

Applications / Uses

• Detecting small current flow in physics laboratory circuits
• Observing current direction through pointer deflection
• Using as a null detector in meter bridge and Wheatstone bridge experiments
• Supporting potentiometer, resistance comparison, and current electricity practicals
• Demonstrating the working principle of analog electrical measuring instruments
• Supporting galvanometer-to-ammeter and galvanometer-to-voltmeter conversion experiments where suitable shunts or multipliers are supplied separately

How to Use the Analog Galvanometer Meter

1. Place the galvanometer on a stable laboratory bench away from vibration.
2. Check the confirmed current range, terminal polarity, scale type, and circuit diagram before use.
3. Adjust the pointer to zero if the meter has a zero-adjustment control.
4. Connect the galvanometer in the circuit according to the experiment diagram.
5. Use suitable series resistance or shunt protection where the experiment requires it.
6. Apply current gradually and observe the pointer deflection direction and magnitude.
7. Record the deflection reading only after the pointer stabilises.
8. Disconnect the meter before changing circuit connections or range-protection components.

Safety note: Do not connect the Analog Galvanometer Meter directly across a supply unless the circuit diagram and protection components permit it. A galvanometer is sensitive and can be damaged by excessive current. Use only within the confirmed current rating, observe polarity where applicable, and keep terminals dry.

Care & Maintenance

• Keep the scale window, pointer, terminals, enclosure, and leads clean and dry.
• Store the galvanometer away from shock, vibration, dust, magnetic fields, and moisture.
• Check zero position before use and avoid overloading the coil with unprotected current.
• Use protective packing during transport to prevent pointer or movement damage.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports educational and scientific laboratory equipment for physics, chemistry, biology, mathematics, engineering, and STEM laboratories. Its verified Lab Meters range includes galvanometer-related electrical measuring instruments for educational laboratory use. The brand also supplies electronics lab trainers and school science laboratory equipment for institutional buyers. Buyers should request the final Analog Galvanometer Meter specification sheet before procurement to confirm sensitivity, range, resistance, enclosure, accessories, packing, and documentation.

Frequently Asked Questions

What is an Analog Galvanometer Meter used for?

An Analog Galvanometer Meter is used to detect and indicate small electric currents in laboratory circuits. It is commonly used in physics practicals that require current direction, deflection, or null-point observation.

Is a galvanometer the same as an ammeter?

No. A galvanometer is a sensitive current detector. It can be converted for ammeter-style current measurement only with suitable shunt resistance and a confirmed experiment design.

Can this galvanometer be used for meter bridge experiments?

Yes, a galvanometer is commonly used as a null detector in meter bridge and Wheatstone bridge experiments, provided its sensitivity and resistance match the practical setup.

What range is available for this galvanometer?

The current range and sensitivity are not verified. Confirm the final microampere, milliampere, or scale range from the product specification sheet before ordering.

Can students connect the galvanometer directly to a battery?

No. Direct battery connection can overload the meter movement. Use suitable resistance, shunt protection, and the approved circuit diagram under instructor supervision.

What should be confirmed before ordering?

Confirm product code, scale type, current sensitivity, internal resistance, zero adjustment, terminal type, enclosure style, included leads, packing, and documentation.

For related measuring instruments, explore Lab Meters, Galvanometer, Electrical and Electronics equipment, and Contact Lab Equipments Ambala for confirmed specifications and institutional enquiries.
